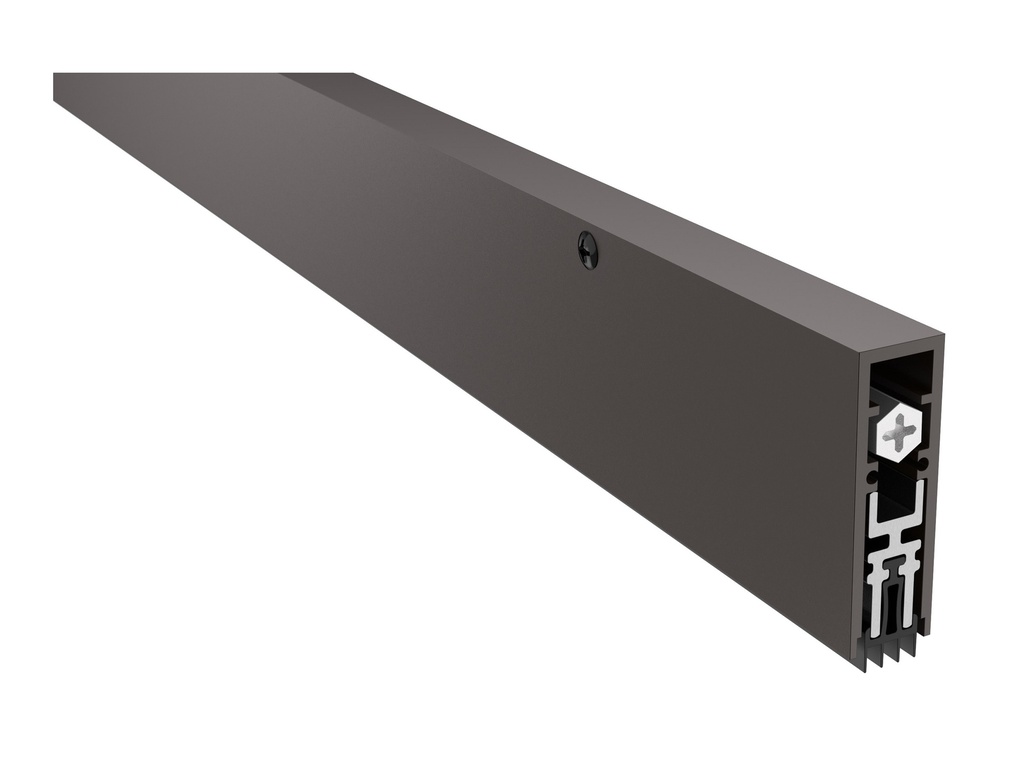

Pemko STC4131DPK Acoustic Rated and Fire Rated, Surface or Semi Mortised Automatic Door Bottom, Dark Bronze Finish, 3/4" Max Drop
Pemko STC4131DPK Fire-Rated and Sound Rated, Surface or Semi Mortised Automatic Door Bottom, Dark Bronze Finish
Lead Time:
36" Length - 0-2 Days
42" or 48" Length - 2-3 Weeks
Pemko STC4131DPK Fire-Rated Acoustic Automatic Door Bottom | Dark Bronze Finish
The Pemko STC4131DPK Acoustic Automatic Door Bottom is the industry-leading solution for high-performance sound control in architectural openings. Finished in a sophisticated Dark Bronze Anodized Aluminum, this unit is specifically engineered for environments where noise reduction is critical, such as recording studios, luxury offices, medical exam rooms, and high-end residential suites.
As part of the specialized STC Series, the STC4131DPK has been independently tested to deliver "sealed-in-place" acoustic performance. Its versatile design allows for either surface-applied or semi-mortise installation, providing a professional retrofit or a low-profile new build solution that effectively blocks sound, drafts, smoke, and light.
Key Features & Performance
- Elite Sound Mitigation: Meets ANSI Standard S12.60-2002 for acoustical performance, making it a primary choice for schools and facilities aiming for LEED IEQ School Specific Credits.
- High-Performance PemkoPrene™ Seal: Features a durable thermoplastic insert that offers the resilience of natural rubber with superior resistance to cleaning fluids and disinfectants.
- Non-Handed for Rapid Install: The symmetrical design allows for universal installation; simply flip the unit to change handing without any disassembly.
- Positive Seal Mechanism: The hinge-side actuated plunger ensures the seal drops straight down, preventing "seal skidding" and protecting your flooring from scuffs.
- Surface or Semi-Mortise Mounting: Provides flexibility for a variety of door types, including high-end wood and hollow metal doors.
- Field Trimmable: Provided at NET length and can be trimmed by up to 2" in the field for a precise, airtight fit.
Technical Details & Certifications
- Base Material: Architectural-grade Aluminum with a Dark Bronze Anodized finish.
- Dimensions: 19/32" Width x 1 27/32" Overall Height.
- Fasteners: Includes thru bolts and #8 x 1 1/4" THSMS for a permanent, secure mount.
- Acoustically Rated: Tested to ASTM E 90-2009 for superior sound transmission loss.
- UL 10C & UL 1784: Certified for Positive Pressure Fire Tests and Smoke Inspection, satisfying strict life-safety building codes.
- Environmental Responsibility: GREENGUARD Gold Certified for low chemical emissions and includes an Environmental Product Declaration (EPD).
- Industry Standards: Complies with ANSI/BHMA A156.22 and ASTM E-283-04 for air leakage and gasketing performance.
| Length | 36 Inch or 42 Inch or 48 Inch |
| Brand | Pemko |
| Insert Material | PemkoPrene |
| Fire Rated | Fire Rated |
| Mounting Type | Surface Mounted |
| Bottom Weatherseal Type | Automatic Door Bottom |
| Housing Finish | Dark Bronze |
| Sweeps, Door Bottom or Rain Drip | Door Bottom |
| Sound Rated | Sound Rated |
