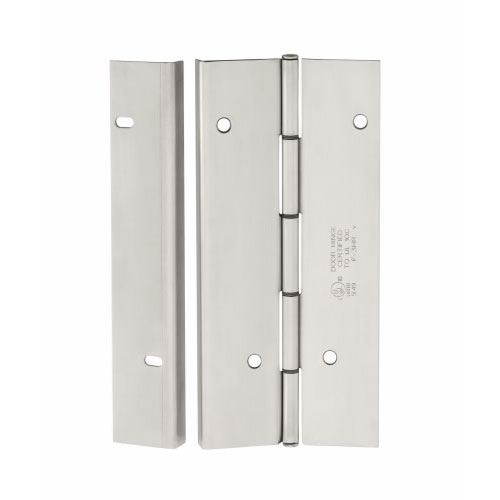

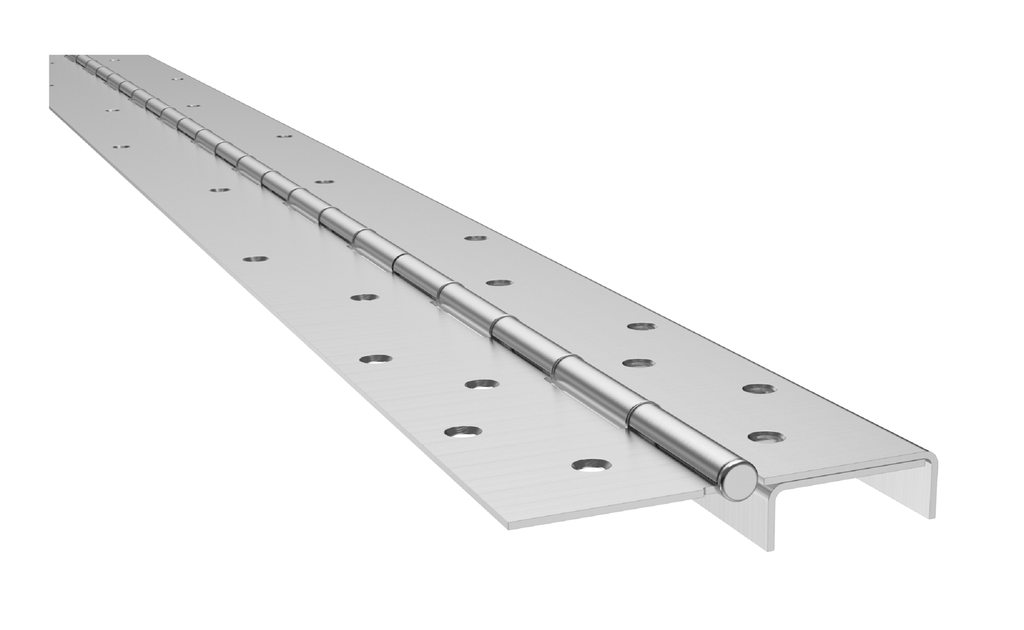

Markar HG305 Stainless Steel Hinge Guard Pin & Barrel Continuous Hinge
The Markar HG305 Adjustable Hinge with Guard protects your door from dings and gouges from carts and gurneys, while providing clean lines and aesthetic appearance. All hinge guard products also have fire ratings up to and including 3 hours.
Specifications
- Grade: Grade 1
- Hinge Material: 304 stainless steel
- Hinge Mounting Type: Full Mortise
- Hinge Strength: Standard Weight
- Handing: Non-handed
- Fastener: KMPSS
- Fastener Type: TEKS
- Maximum Door Thickness: 1-3/4"
- Minimum Door Thickness: 1-3/4"
- Maximum Door Width: 4'
- Maximum Hinge Length: 120"
- Minimum Hinge Length: 79"
- Maximum Swing: 180°

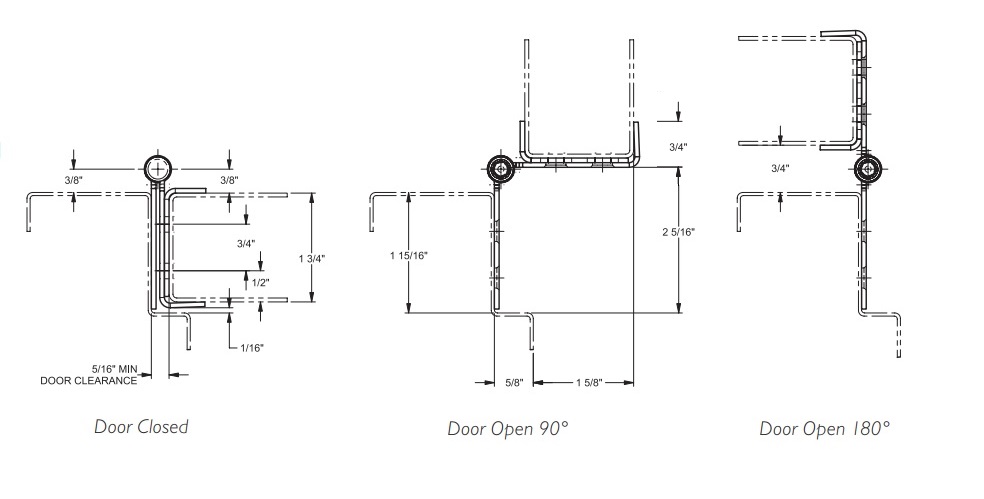

- Minimum Hinge Clearance: 5/16"
- Maximum Weight: Supports door weights up to 600lbs
Features
- Stainless steel end pins
- Custom lengths available
- Fasteners concealed when door is closed
- Supports weight up to 600 lbs., 4'0" maximum door width
- Symmetrically templated hole pattern. Handing required for 6'8" and 7'2" and for most optional features listed
- Exterior barrel diameter .438" (7⁄16")
- Custom lengths and hole patterns available
- Fastener screw pack includes Custom 12-24 x 11/16 S.S Phillips Flat Head Undercut TEK Screws
- Handing required for 6'8" and 7'2" and most optional features
- Tamper-proof security screws available
Benefits
- Protects door from dings and gouges from carts and gurneys
- Fire ratings up to and including 3 hours
- Provides clean lines and aesthetic appearance
Certifications
- ANSI/SDI 250.13 Certified
- UL 10C positive pressure
- UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
- Warnock Hersey listing
- ANSI/BHMA Standard A156.26
| Continuous Hinge Height | 83 Inch (7/0 Dr) or 95 Inch (8/0 Dr) |
| Brand | Markar |
| Continuous Hinge Grade | Heavy Duty |
| Hinge Type | Continuous Hinge, Full Mortise |
| General - US Finishes | US32D - Satin Stainless Steel/ 630 |
| Base Material | Stainless Steel |
