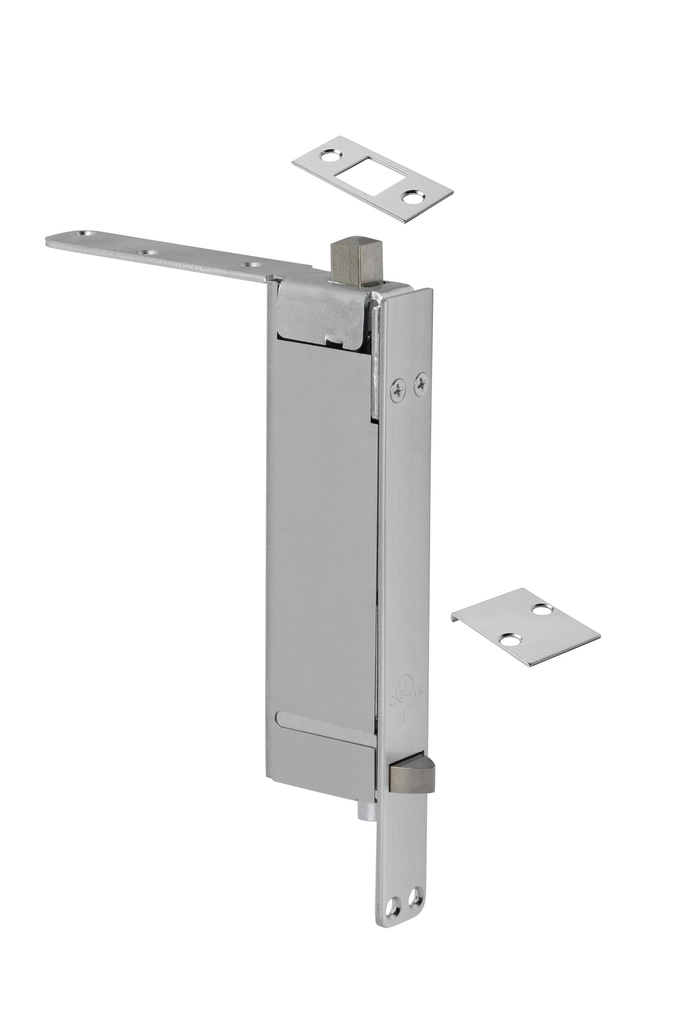

Rockwood 2940 Automatic Flush Bolt | For Fire-Rated Wood Doors
The Rockwood 2940 Automatic Flush Bolt is a high-performance security component designed for the inactive leaf of fire-rated wood and composite doors. Featuring a fully automatic latch release, this bolt engages securely when the door closes and retracts instantly when the active door is opened. Crafted from Solid Brass or Stainless Steel, it is a mission-critical hardware solution for maintaining fire-safety compliance in schools, hospitals, and commercial buildings.
Professional Security & Seamless Operation
- Automatic Sequence Control: Ensures the inactive leaf is securely latched whenever the active door is closed. This provides a reliable, "hands-free" locking mechanism that eliminates the risk of human error.
- Plunger Button Latch Release: When the active door is opened, the inactive leaf stays latched at the top for added stability until the user releases the bolt by pressing the integrated plunger button on the faceplate.
- Fire Safety Compliance: Designed specifically for fire-rated wood doors, providing the necessary structural reinforcement and latching strength required by life-safety codes.
- Low Operating Force: Engineered for ease of use, it features a low closing force, ensuring the door remains ADA-compliant and operates smoothly without excessive wear on door closers.
- Architectural Quality: Meets ANSI/BHMA standards for architectural trim, available in a variety of finishes to match existing building hardware.
Technical Specifications
- Model: Rockwood 2940
- Application: Top or Bottom Bolt for Wood Doors
- Material: Solid Brass or Stainless Steel
- Face Plate Size: 1" x 8-1/2"
- Stock Finish: US26D Satin Chrome (Other finishes available by quote)
- Fasteners: * Top: 8 ea. #8 x 3/4" FH Combo Screws
- Bottom: 18 ea. #8 x 3/4" FH Combo Screws, 2 ea. #6/8 Plastic Anchors
| General - US Finishes | US26D - Satin Chrome or US32D - Satin Stainless Steel/ 630 or US3 - Polished Brass or US10 - Satin Bronze or US10B - Oil Rubbed Bronze |
| Brand | Rockwood |
| Bolt Type | Flush Bolt - Automatic |
| Door Type | Wood Door |
| Fire Rated | Fire Rated |
