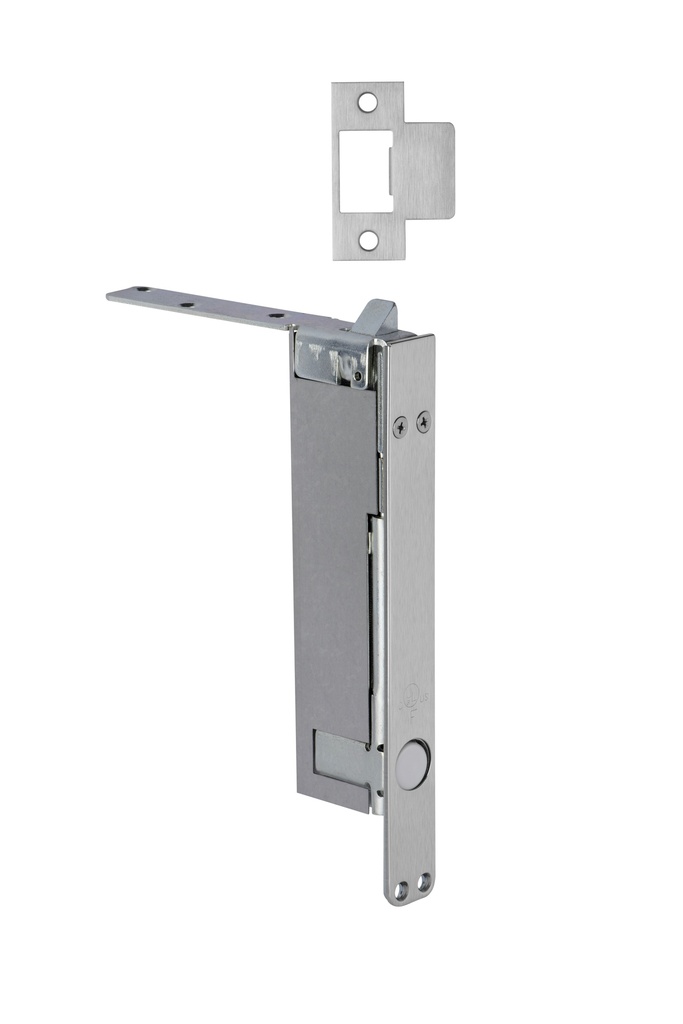

Rockwood 2905 Self-Latching Flush Bolt | For Wood Fire Doors
The Rockwood 2905 Self-Latching Flush Bolt is a specialized architectural security solution designed for the inactive leaf of fire-rated wood and composite doors. Featuring a plunger button release, this bolt ensures the door remains securely latched at the top even when the active leaf is open. Crafted from Solid Brass or Stainless Steel, it is a premier choice for schools, hospitals, and commercial office suites requiring controlled accessibility.
Professional Security & Controlled Accessibility
- Self-Latching Functionality: The bolt automatically engages when the inactive door is closed. Unlike fully automatic bolts, the inactive leaf stays latched when the active door is opened, releasing only when the user presses the integrated plunger button on the bolt face.
- Low Operating Force: Engineered for ease of use and ADA compliance, it features a low closing force (5 lbs. maximum), ensuring the door latches smoothly without excessive force.
- Precision Adjustability: The bolt head rod is adjustable up to 1-1/2", allowing installers to achieve a perfect, snug fit against the header strike even if the door or frame has minor misalignments.
- Universal Non-Handed Design: The non-handed configuration simplifies ordering and installation, as the hardware works seamlessly with any door swing.
- Architectural Quality: Meets ANSI A156.3 Type 27 standards for architectural trim and is available in a variety of finishes to match existing building hardware.
Technical Specifications
- Model: Rockwood 2905
- Application: Top Bolt for Wood Core or Composite Fire Doors
- Material: Solid Brass or Stainless Steel
- Face Plate Size: 1" x 8-1/2"
- Stock Finish: US26D Satin Chrome (Other finishes available by quote)
- Fasteners: Includes 8 ea. #8 x 3/4" FH combo screws.
| General - US Finishes | US26D - Satin Chrome or US32D - Satin Stainless Steel/ 630 or US3 - Polished Brass or US10 - Satin Bronze or US10B - Oil Rubbed Bronze |
| Brand | Rockwood |
| Bolt Type | Flush Bolt - Automatic |
| Door Type | Wood Door |
| Fire Rated | Fire Rated |
Rockwood 2905 Template T-2905 0715.pdf
Download
