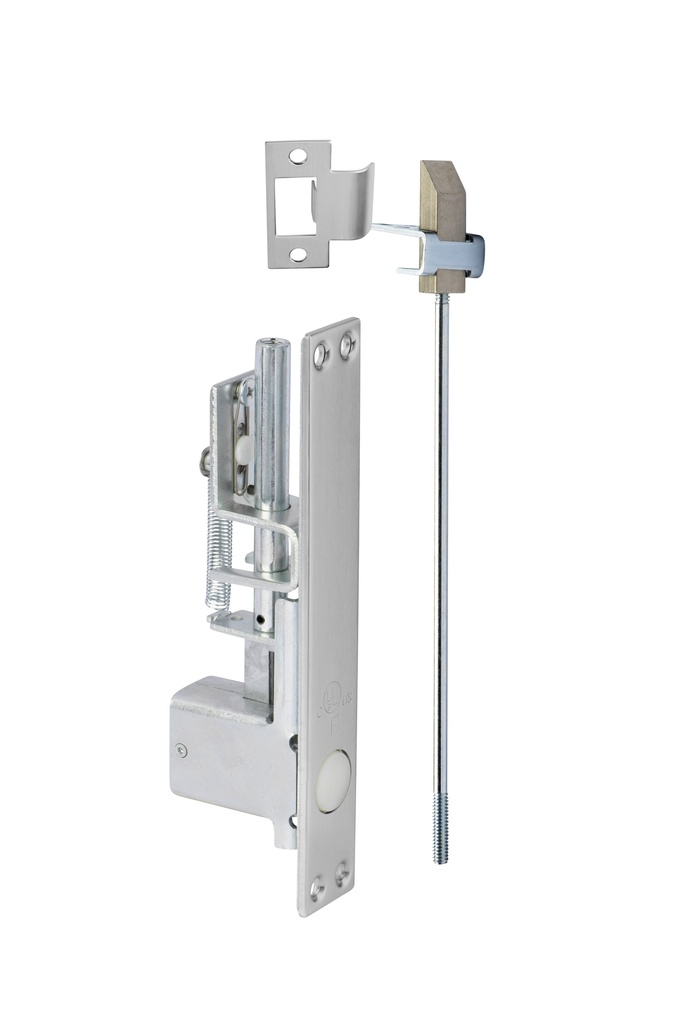

Rockwood 2805 Self-Latching Top Flush Bolt | For Fire-Rated Metal Doors
The Rockwood 2805 Self-Latching Flush Bolt is a high-performance security solution designed specifically for the inactive leaf of a pair of metal doors. Unlike fully automatic bolts, the 2805 features a plunger button release, ensuring the door remains securely latched at the top until manually released. UL Listed for metal doors labeled A through E (up to 4'W x 8'H), it is the premier choice for schools, hospitals, and commercial corridors where controlled access is required.
Professional Security & Controlled Accessibility
- Self-Latching Functionality: The bolt automatically engages when the inactive door is closed. Even when the active door is opened, the inactive leaf stays latched, releasing only when the user presses the integrated plunger button on the bolt face.
- Low Operating Force: Engineered for ease of use, it features a low 5 lbs. maximum closing force, ensuring the door latches smoothly and remains ADA-compliant for manual operation.
- Precision Adjustability: The bolt head rod is adjustable up to 1-1/2", allowing installers to achieve a perfect, snug fit against the header strike even if the door or frame is slightly misaligned.
- Universal Non-Handed Design: The non-handed configuration allows for seamless installation on any door swing, reducing ordering errors and simplifying field installation.
- Architectural Durability: Available in Solid Brass or Stainless Steel, this bolt meets ANSI A156.3 Type 27 standards, ensuring it can withstand the rigors of high-traffic institutional use.
Technical Specifications
- Model: Rockwood 2805
- Application: Top Bolt for Fire-Rated Metal Doors
- Material: Brass or Stainless Steel
- Face Plate Size: 1" x 6-3/4"
- Fire Rating: UL Listed for 3-Hour Metal Doors
- Fasteners: Includes 8 ea. #8 x 3/4" FH combo screws (No anchors required for top-only installation).
| General - US Finishes | US26D - Satin Chrome or US32D - Satin Stainless Steel/ 630 or US3 - Polished Brass or US10 - Satin Bronze or US10B - Oil Rubbed Bronze |
| Brand | Rockwood |
| Bolt Type | Flush Bolt - Automatic |
| Door Type | Metal Door |
| Fire Rated | Fire Rated |
Rockwood 2805 Template T-2805 0715.pdf
Download
