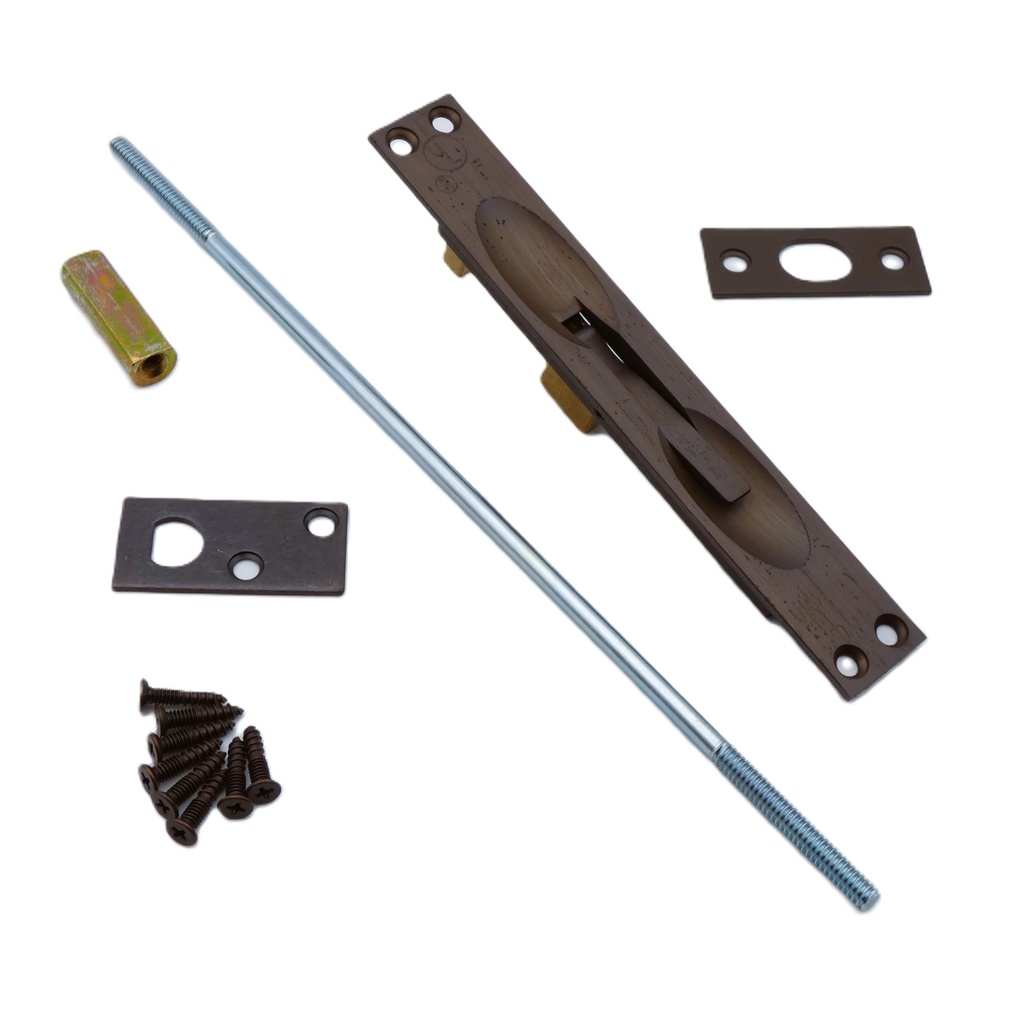

Rockwood Flush Bolt 555
- Face Plate: 6-3/4" hi x 1" wi
- Material: Brass
- Fastener: 8 ea. #8 x 3/4 FH Combo Screws
- Features: Fits ANSI A115 door and frame preparation.
- 3/4" bolt throw, 3/4" rod backset.
- 12" rod length (center of face to bolt end - retracted).
- 1-1/2" adjustable bolt head. (strike guide must be removed to adjust)
- Use #570 Dust Proof Strike to prevent dirt blocking bottom strike
- Strike: 15/16" x 2-1/4"
- Guide: 1" x 2"
- ANSI A156.16: L04251
For Fire Rated Hollow Metal Swinging Doors measuring up to 4'w x 10'h rated up to and including 3 hours. For use on A,B,C,D, & E labeled metal doors - Standard rod length is 12".
- 24" top rod maybe additionally required for 8'0" high doors.
Please Note: Flush Bolts are priced as "each" and packaged in boxes of 2

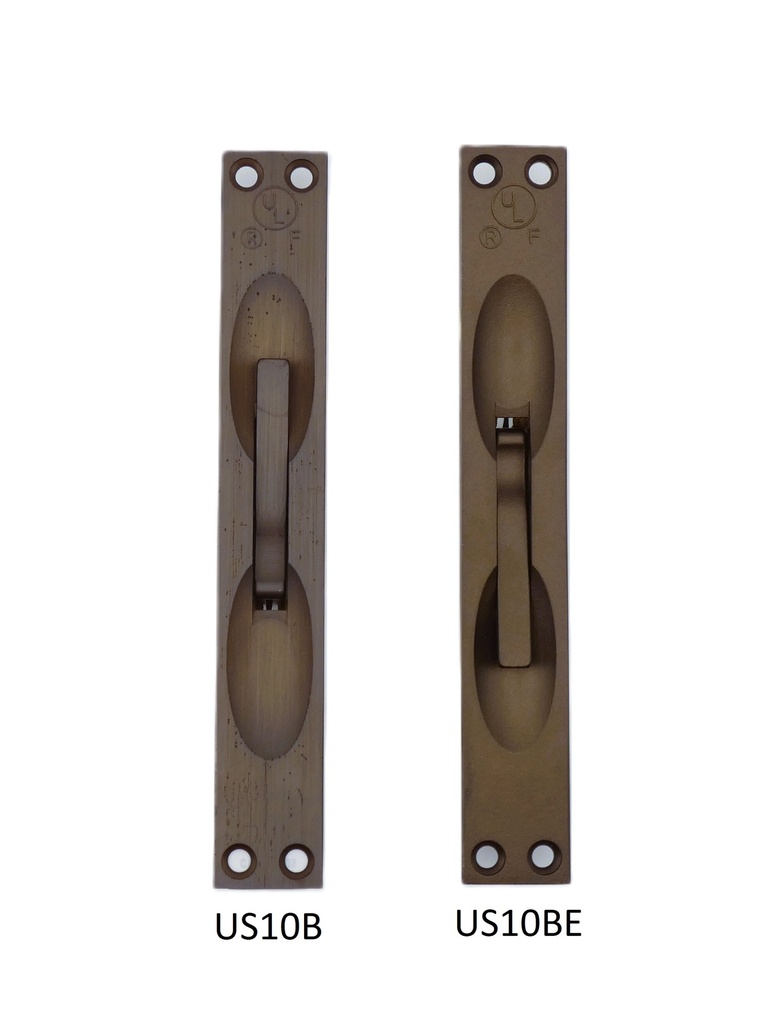

| General - US Finishes | US26D - Satin Chrome or US26 - Polished Chrome or BSP - Black Suede Power Coat or US15 - Satin Nickel or US3 - Polished Brass or US4 - Satin Brass or US10 - Satin Bronze or US10B - Oil Rubbed Bronze or US10BE - Oil Rub Bronze Equal |
| Brand | Rockwood |
| Bolt Type | Flush Bolt - Manual |
| Fire Rated | Fire Rated |
| Door Type | Metal Door |
Rockwood Mfg 555 Template
Download
