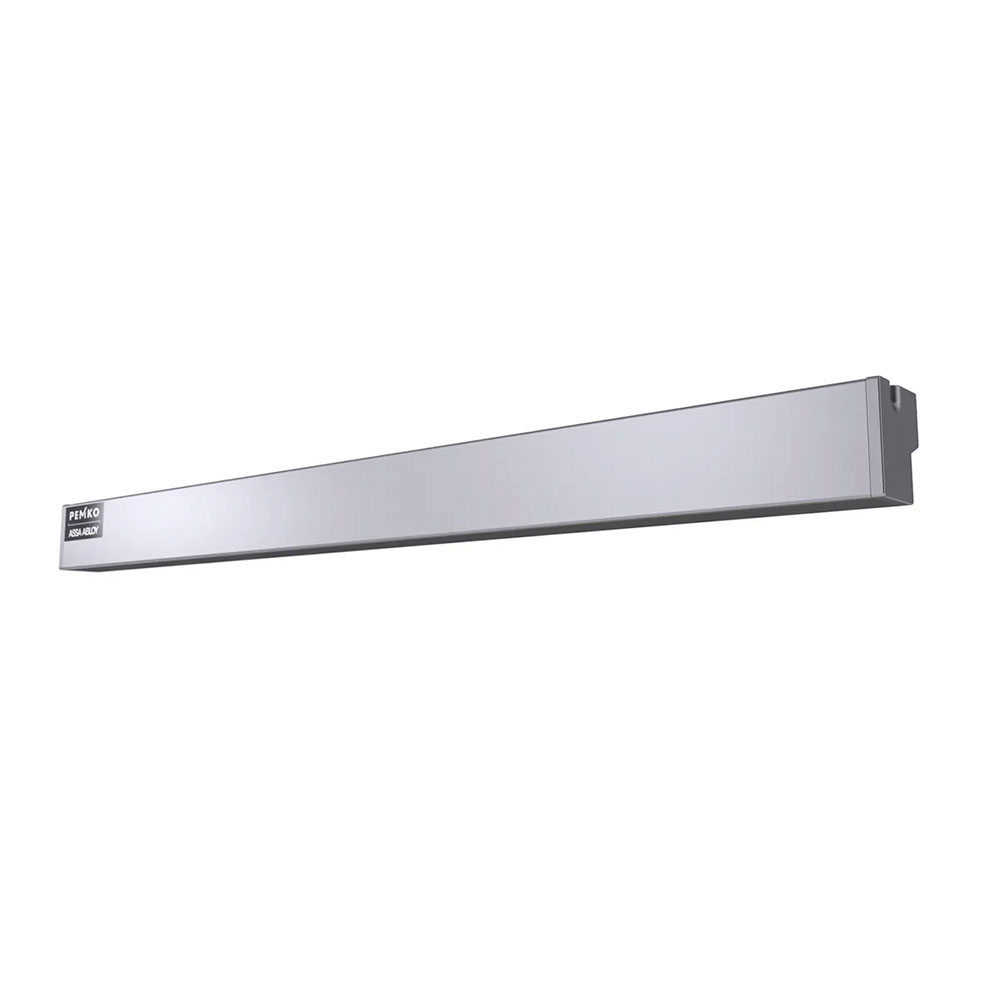

PemkoMatic™ PSLIDE Low Energy Automatic Sliding Door Operator
The PemkoMatic™ PSLIDE is a state-of-the-art low-energy automatic door operating system designed to provide effortless, hands-free access for manual sliding doors. Whether you are automating a pocket door in a healthcare facility or a barn door in a modern office, the PSLIDE offers an adaptable electromechanical solution. This system is engineered for both new construction and retrofitting existing openings, featuring a sleek, low-profile cover that blends seamlessly into any architectural design.
High-Performance & Accessibility Features
- ADA Compliant Accessibility: Fully compliant with the Americans with Disabilities Act (ADA) and tested to ANSI A156.38 standards for low-energy power-operated sliding doors.
- Versatile Mounting Options: Supports Face/Soffit mounting or installation Under Header, with an optional adapter bracket available for non-header applications.
- Touchless Operation: Compatible with high-sanitation wave-to-open sensors, as well as traditional push buttons and numeric keypads for secure, customizable access.
- Heavy-Duty Capacity: Capable of automating doors weighing up to 330 lbs, making it suitable for solid wood and heavy-duty commercial door types.
- Whisper-Quiet Performance: Engineered for smooth, silent movement, ensuring minimal disruption in residential bedrooms or professional work environments.
Technical Specifications
- Manufacturer: Pemko (ASSA ABLOY)
- Model: PSLIDE (PemkoMatic™)
- Maximum Door Weight: 330 lbs
- Voltage Input: 120v AC
- Hold Open Time: Adjustable from 0 to 24 seconds via a user-friendly dial.
- Overall Dimensions: 36" Length | 3" Height | 2-1/2" Width
- Cycle Tested: Tested over 1,000,000 cycles for long-term reliability in high-traffic areas.
- Certifications: UL 325 Listed and FCC Part 15 Compliant.
Pro-Tip for Professional Customization
The PemkoMatic™ PSLIDE is highly field-adaptable. The unit comes standard at 36" but can be field-trimmed to fit smaller doors for a precise, custom fit. Additionally, the system features customizable DIP switches, allowing installers to adjust power levels for lightweight vs. heavy doors, enable "slam-shut" functionality, or set audible beeper alerts to meet specific facility needs.
| Finish with BHMA code | 628 - Clear Anodized Aluminum or BSP - Black Suede Powder Coat or WSP - White Suede Powder Coat |
| Brand | Pemko |
| Trackset Type | Barn Door, Operator |
