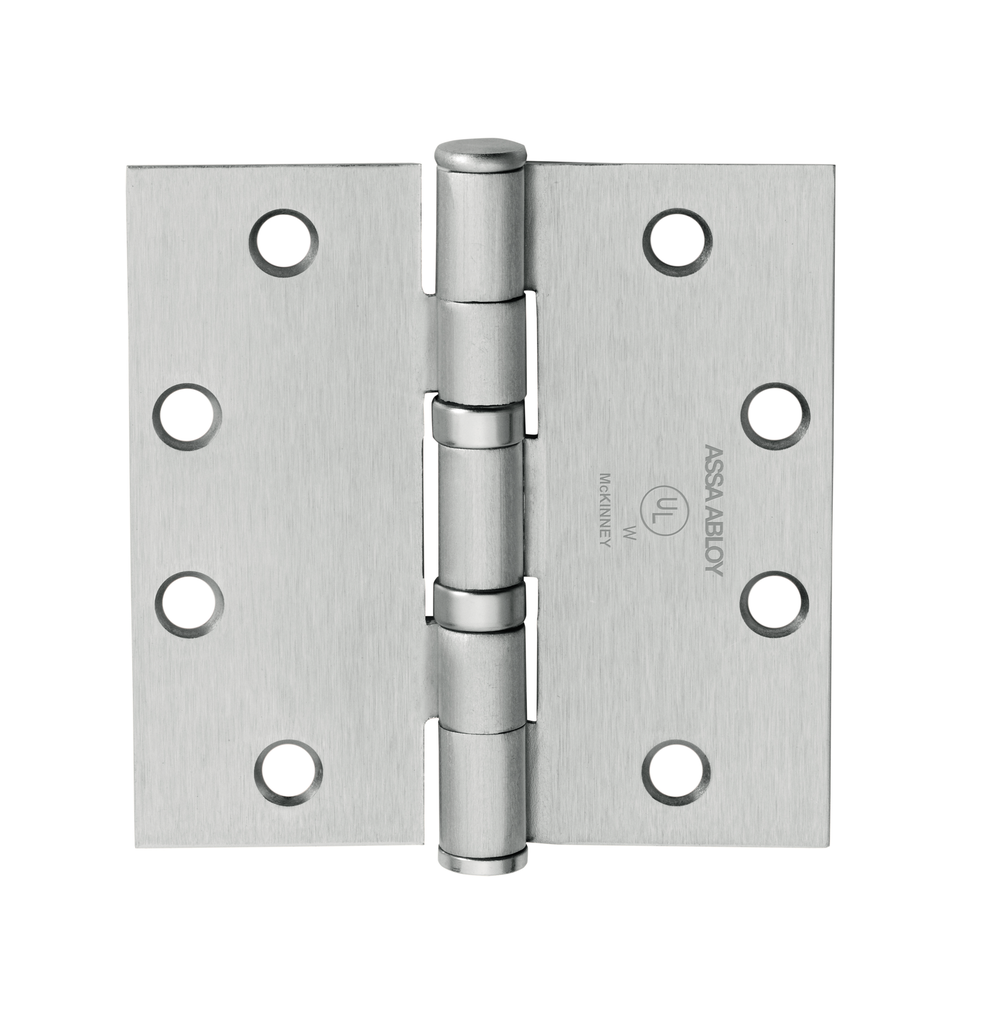

McKinney TA2714 Standard Weight Hinge | 5" x 4-1/2" US26D Satin Chrome
The McKinney TA2714 is a high-performance bearing steel hinge designed for average traffic in commercial construction. Meticulously engineered with a .146 gauge thickness, this 5-knuckle, full mortise hinge is a premier solution for door restoration in office buildings, schools, and hospitals. Its specialized oil impregnated bearings provide maintenance-free, self-lubricating operation, ensuring long-term reliability for doors equipped with closing devices.
Advanced Oil Impregnated Bearings (TA Prefix)
The TA Prefix identifies McKinney's specialized self-lubricating bearing system. This one-piece, non-ferrous design offers:
- Superior Durability: Drastically reduces wear and friction for a smoother, longer-lasting door swing and resistance to hinge failure.
- Environmental Resilience: Engineered to resist clogging and corrosion, preventing common hinge failures in high-frequency environments.
- Maintenance-Free Performance: Acts as a permanent solution for door edge reinforcement without the need for manual greasing.
Key Performance & Safety Features
- Standard Weight .146 Gauge: Optimized for common flush door, frame, and wall applications where architectural quality is required.
- 3-Hour Fire Rating: The US26D Satin Chrome finish is UL Certified (3-hour) for use on fire-rated door assemblies, ensuring full compliance with life-safety codes.
- ANSI/BHMA A156.1 Compliant: Corresponds to industry-standard ANSI A8112, meeting rigorous benchmarks for structural integrity and functional excellence.
- Non-Rising Steel Pin: Features a secure pin with button tips to maintain a professional, clean aesthetic while preventing the pin from working upward.
Technical Details & Specifications
- Brand: McKinney (ASSA ABLOY)
- Model: TA2714
- Dimensions: 5" Height x 4-1/2" Width (Standard Weight .146 Thickness)
- Material: Plated Steel
- Fasteners Included: Furnished with all Wood Screws (1-1/4" x 12 FPHW) and all Machine Screws (1/2" x 12-24 FPHM).
- Installation: Constructed with a template screw hole pattern for precision alignment and rapid replacement in standard commercial frames.
Why Choose the McKinney TA2714?
The McKinney TA2714 is the definitive professional choice for projects requiring a balance of architectural value and industrial durability. Whether you are performing a solution for door surface repair or outfitting a new commercial perimeter, its combination of self-lubricating bearings and .146 gauge steel ensures a high-intent solution for door security that stands the test of time.
| General - US Finishes | US26D - Satin Chrome or US26 - Polished Chrome or US15 - Satin Nickel or US10B - Oil Rubbed Bronze or USP - Prime Painted |
| Brand | McKinney |
| Hinge Height | 5.0" Hi |
| Hinge Width | 4.5" Wi |
| Hinge Grade/Thickness | Standard Wt .119 to .146 |
| Hinge Type | Full Mortise |
| Hinge Options | Ball Bearing |
| Base Material | Steel |
| Hinge Corners | Square |
