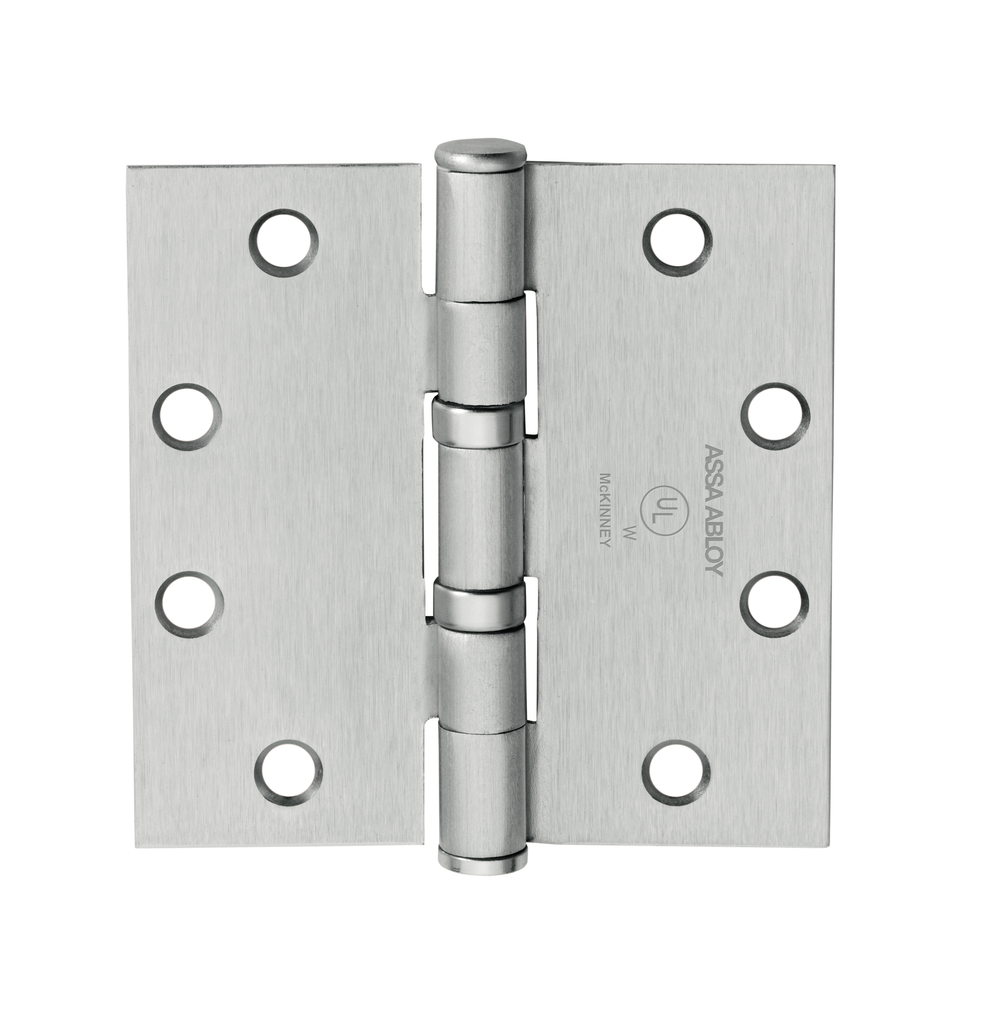

McKinney TA2714 Standard Weight Hinge | 5" x 5" Bearing Steel
The McKinney TA2714 is a high-performance bearing steel hinge engineered for average traffic in commercial construction environments. Meticulously crafted with a .146 gauge thickness, this 5-knuckle, full mortise hinge is an essential solution for door restoration in office buildings, schools, and healthcare facilities. Its specialized oil impregnated bearings provide a maintenance-free, self-lubricating operation that ensures your door hardware stands up to the rigors of high-frequency commercial use.
Advanced Oil Impregnated Bearings (TA Prefix)
The TA Prefix identifies McKinney's premium self-lubricating bearing system. This one-piece, non-ferrous design offers:
- Superior Durability: Drastically reduces friction for a smoother, longer-lasting door swing and high resistance to hinge failure.
- Environmental Resilience: Specifically engineered to resist clogging and corrosion, preventing common mechanical issues in demanding environments.
- Maintenance-Free Performance: Acts as a permanent solution for door edge reinforcement without the need for manual greasing or oiling.
Key Performance & Safety Features
- Heavy-Duty .146 Gauge Steel: Optimized for standard commercial flush doors and frames where structural integrity is a priority.
- UL Fire Rated: Rigorously tested and UL listed (3-hour) for use on fire-rated door assemblies, ensuring full compliance with life-safety codes and NFPA 80.
- ANSI/BHMA A156.1 Compliant: Corresponds to industry-standard ANSI A8112, meeting recognized benchmarks for structural durability.
- Non-Rising Steel Pin: Features a secure pin with architectural button tips to maintain a clean aesthetic while preventing the pin from working upward over time.
Technical Details & Specifications
- Brand: McKinney (ASSA ABLOY)
- Model: TA2714
- Dimensions: 5" Height x 5" Width (Standard Weight .146 Thickness)
- Base Material: High-strength plated steel
- Fasteners Included: Furnished with all Wood Screws (1-1/4" x 12 FPHW) and all Machine Screws (1/2" x 12-24 FPHM).
- Mounting: Features a template screw hole pattern for precision alignment and rapid field replacement on new or existing frames.
Why Choose the McKinney TA2714?
The McKinney TA2714 is the definitive professional choice for projects requiring a balance of architectural value and industrial durability. Whether you are performing a solution for door surface repair or outfitting a new commercial perimeter, its combination of self-lubricating bearings and .146 gauge steel ensures a high-intent solution for door security that stands the test of time.
| General - US Finishes | US26D - Satin Chrome or US26 - Polished Chrome or US15 - Satin Nickel or US3 - Polished Brass or US4 - Satin Brass or US10B - Oil Rubbed Bronze |
| Brand | McKinney |
| Hinge Height | 5.0" Hi |
| Hinge Width | 5.0" Wi |
| Hinge Grade/Thickness | Standard Wt .119 to .146 |
| Hinge Type | Full Mortise |
| Hinge Options | Ball Bearing |
| Base Material | Steel |
| Hinge Corners | Square |
