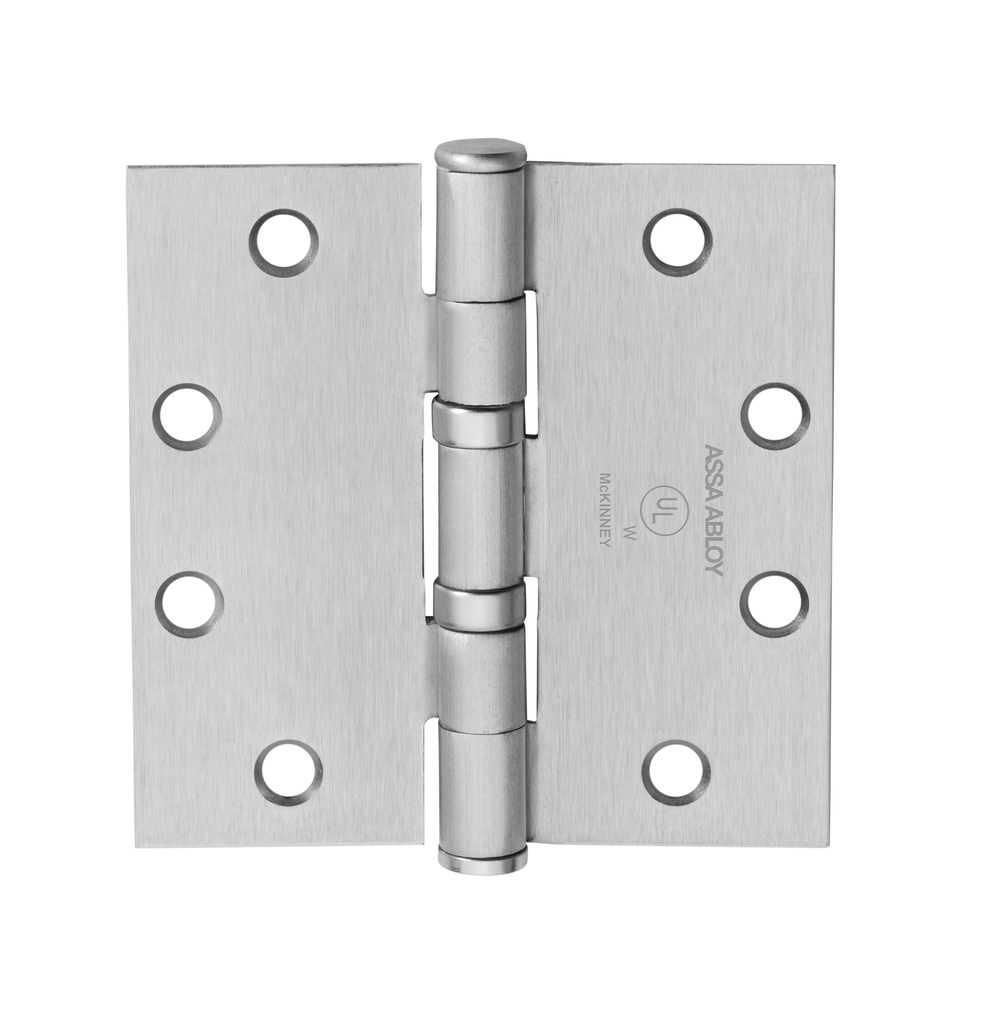

McKinney TA2714 Ball Bearing Hinge | 4" x 4" Ball Bearing Five Knuckle
The McKinney TA2714 is a professional-grade standard weight bearing hinge engineered for average traffic in commercial construction and light industrial applications. Featuring a robust .130 gauge thickness, this 5-knuckle, full mortise hinge is a premier solution for door restoration on medium-weight wood or metal doors. Utilizing McKinney's specialized Oil Impregnated Bearings, it provides a smooth, maintenance-free operation that excels in office buildings, retail spaces, and public facilities.
Advanced Oil Impregnated Bearings (TA Prefix)
The TA Prefix signifies McKinney’s high-performance self-lubricating bearing system. These one-piece, non-ferrous bearings provide:
- Superior Longevity: Drastically reduces friction for a smoother, silent door swing and high resistance to hinge failure.
- Clog & Corrosion Resistance: Specifically engineered to resist dust, debris, and oxidation, ensuring consistent performance in demanding environments.
- Maintenance-Free Life: Acts as a permanent solution for door edge reinforcement without the need for manual lubrication.
Professional Commercial Engineering
- Standard Weight .130 Gauge: A heavy-duty commercial thickness that provides significantly more stability than residential alternatives.
- Non-Rising Steel Pin: Equipped with architectural button tips to maintain a clean, professional aesthetic while preventing the pin from migrating upward over time.
- Template Screw Hole Pattern: Precision-engineered for exact alignment and rapid field replacement in standard commercial frames.
- Versatile Architectural Finishes: Available in high-quality options including US26D (Satin Chrome) for a brushed look, US26 (Polished Chrome) for high-reflectivity, and US3 (Polished Brass) for a classic aesthetic.
Technical Details & Specifications
- Brand: McKinney (ASSA ABLOY)
- Model: TA2714
- Dimensions: 4" Height x 4" Width (Standard Weight .130 Thickness)
- ANSI/BHMA A156.1 Compliant: Meets industry benchmarks for structural quality and performance.
- Fasteners Included: Furnished with all Wood Screws (1-1/4" x 12 FPHW) and all Machine Screws (1/2" x 12-24 FPHM).
Important Technical Note: This is a Commercial Grade Hinge. It does not share the same screw hole pattern or thickness as residential grade hinges. If your project requires residential hardware, verify your hole pattern before installation.
| General - US Finishes | US26D - Satin Chrome or US26 - Polished Chrome or US3 - Polished Brass or US10 - Satin Bronze or US10B - Oil Rubbed Bronze or USP - Prime Painted |
| Brand | McKinney |
| Hinge Height | 4.0" Hi |
| Hinge Width | 4.0" Wi |
| Hinge Grade/Thickness | Standard Wt .119 to .146 |
| Hinge Type | Full Mortise |
| Hinge Options | Ball Bearing |
| Base Material | Steel |
| Hinge Corners | Square |
