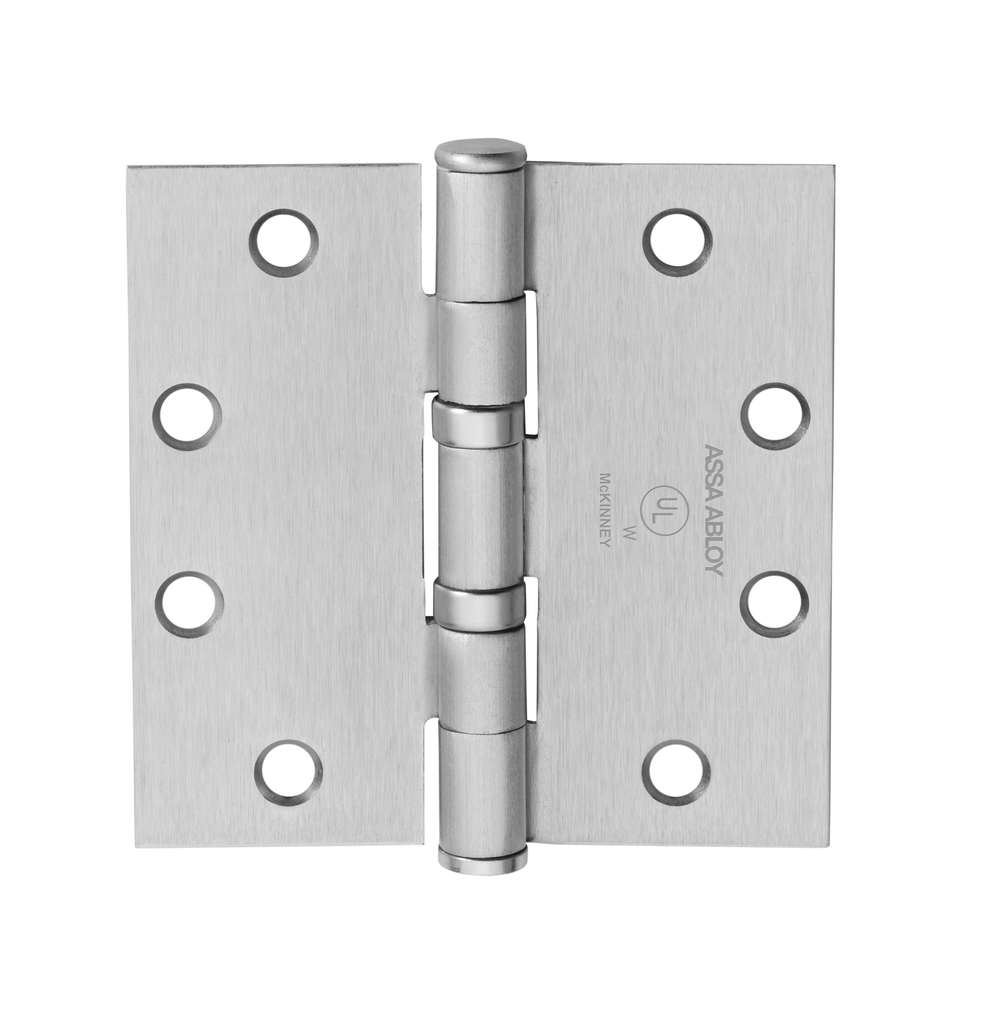

McKinney TA2714 Ball Bearing Hinge | 4-1/2" x 4" Steel
The McKinney TA2714 is a high-performance standard weight bearing hinge engineered for average traffic in commercial construction and architectural applications. Featuring a precision .134 gauge thickness, this 5-knuckle, full mortise hinge is a premier solution for door restoration on medium-weight wood or metal doors. Utilizing McKinney's specialized Oil Impregnated Bearings, it provides a smooth, maintenance-free operation that excels in office buildings, retail spaces, and public facilities.
Advanced Oil Impregnated Bearings (TA Prefix)
The TA Prefix signifies McKinney’s high-performance self-lubricating bearing system. These one-piece, non-ferrous bearings provide:
- Superior Longevity: Drastically reduces friction for a smoother, silent door swing and high resistance to hinge failure.
- Clog & Corrosion Resistance: Specifically engineered to resist dust, debris, and oxidation, ensuring consistent performance in demanding environments.
- Maintenance-Free Life: Acts as a permanent solution for door edge reinforcement without the need for manual lubrication.
Professional Commercial Engineering
- Standard Weight .134 Gauge: A heavy-duty commercial thickness that provides significantly more stability than residential alternatives.
- Non-Rising Steel Pin: Equipped with architectural button tips to maintain a clean, professional aesthetic while preventing the pin from migrating upward over time.
- Template Screw Hole Pattern: Precision-engineered for exact alignment and rapid field replacement in standard commercial frames.
- ANSI/BHMA A156.1 Compliant: Corresponds to industry-standard ANSI A8112, meeting the highest benchmarks for structural quality and performance.
Technical Details & Specifications
- Brand: McKinney (ASSA ABLOY)
- Model: TA2714
- Dimensions: 4-1/2" Height x 4" Width (Standard Weight .134 Thickness)
- Base Material: High-strength plated steel.
- Fasteners Included: Furnished with all Wood Screws (1-1/4" x 12 FPHW) and all Machine Screws (1/2" x 12-24 FPHM).
Why Choose the McKinney TA2714?
The McKinney TA2714 is the definitive professional choice for projects requiring a balance of durability and architectural value. Whether you are performing a solution for door surface repair or outfitting a new commercial suite, its combination of high-strength steel and self-lubricating bearings ensures your openings remain functional for decades.
| General - US Finishes | US26D - Satin Chrome or US26 - Polished Chrome or US15 - Satin Nickel or US3 - Polished Brass or US4 - Satin Brass or US10 - Satin Bronze or US10A - Oil Rubbed Bronze or US10B - Oil Rubbed Bronze or US10BE - Oil Rub Bronze Equal or USP - Prime Painted |
| Brand | McKinney |
| Hinge Height | 4.5" Hi |
| Hinge Width | 4.0" Wi |
| Hinge Grade/Thickness | Standard Wt .119 to .146 |
| Hinge Type | Full Mortise |
| Hinge Options | Ball Bearing |
| Base Material | Steel |
| Hinge Corners | Square |
