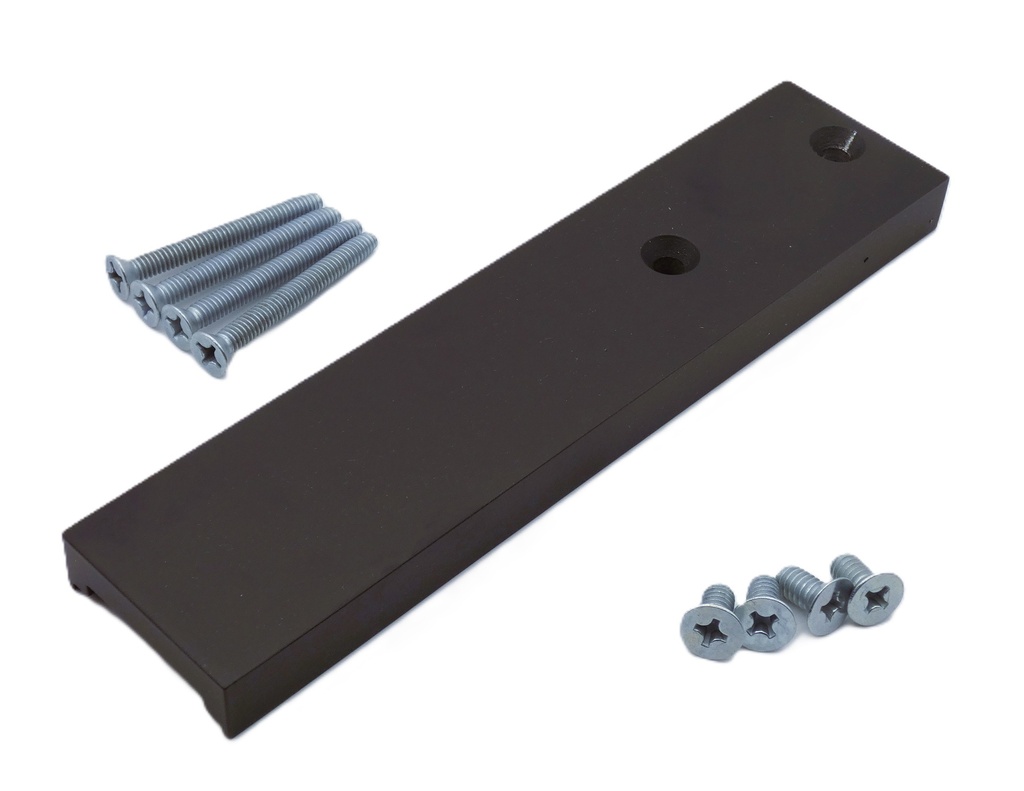

Rockwood 2601D In-Line Mounting Bracket for 2600 Series Coordinators

The Rockwood 2601D is a specialized, low-profile mounting solution designed for seamless hardware integration. Engineered specifically for use with 2600 Series Door Coordinators, this bracket allows for the secure installation of parallel arm closers, non-fire rated vertical rod strikes, and other soffit-applied hardware. By mounting directly through the coordinator, the 2601D provides a stable platform that adapts to any frame dimension, eliminating the need for custom-sized brackets.

Universal Compatibility & Architectural Features

• One-Size-Fits-All Design: Engineered to fit all frame dimensions, removing the complexity of ordering different style brackets for varying soffit widths.

• Low-Profile Aesthetic: The slim, unobtrusive design enhances the overall appearance of the door opening, maintaining a clean architectural look.

• Heavy-Duty Aluminum Build: Manufactured from high-strength aluminum with a durable Black finish to withstand the mechanical stress of heavy-duty door closers.
• Simplified Installation: Designed for efficiency, requiring only two thread-forming Type C screws for a fast and secure mount to the door frame.

• Versatile Hardware Support: The primary choice for mounting soffit-applied hardware when a coordinator is present, ensuring synchronized door closing without hardware interference.


Technical Specifications

• Model: Rockwood 2601D
• Material: High-Strength Aluminum
• Finish: Black
• Length: 7-13/16"
• Width: 1-13/16"
• Fasteners Included: 4 ea. 1/4"-20 x 1/2" FHMS and 2 ea. #12-24 x 2" FHMS
• Application: Used with Rockwood 2600 Series Coordinators

The Rockwood 2601D is a "lifesaver" for field retrofits. Because it mounts through the coordinator, it allows you to maintain the proper geometry for your door closer even when the frame soffit is too narrow for standard mounting. For a rock-solid installation, ensure the bracket is perfectly leveled before driving the thru bolts or machine screws; this prevents the closer arm from binding and ensures the coordinator functions smoothly during the closing cycle.

Installation Note: This bracket is designed for easy alignment. We recommend dry-fitting the 2601D against the 2600 Series Coordinator first to mark your holes accurately, ensuring the 1/4"-20 machine screws align perfectly with the coordinator's internal mounting channels.
