Accentra 2731 Heavy Duty Door Closer (Formerly Yale)
Rigid Parallel Arm with Integrated Dead Stop
The Accentra 2731 is a heavy-duty, architectural-grade door closer engineered for maximum protection in high-traffic and high-abuse environments. This model is equipped with a Rigid Parallel Arm with an Integrated Stop, providing a mechanical "dead stop" at a pre-set point in the door’s swing. By stopping the door before it can hit adjacent walls or over-extend the hinges, the 2731 eliminates the need for unsightly floor or wall stops, making it the premier choice for schools, hospitals, and exterior commercial entrances.
Built to ANSI/BHMA Grade 1 standards, the 2731 combines rugged cast-aluminum construction with the precision of a rack-and-pinion mechanism. It offers the same dependable performance as the original Yale 2700 series with the modern reliability of the Accentra brand.
Key Features
- Integrated Dead Stop: The heavy-duty rigid arm features a built-in stop that physically prevents the door from opening past a specific degree, protecting the door, frame, and hardware.
- Fully Adjustable Spring Power: Adjustable from Sizes 1 through 6, providing enough versatility to handle everything from light interior doors to heavy-duty exterior openings.
- Precision Valve Control: Features three independent, adjustable valves for Backcheck (cushioning the opening cycle), Closing Speed, and Latching Speed.
- Reinforced Mounting: Comes standard with thru-bolts, sleeve nuts, and grommet nuts to ensure a rock-solid, permanent installation on any door material.
- Universal Handing: Non-handed design allows for seamless installation on both left and right-hand door swings.
- Architectural Finishes: Available in Aluminum (689) or Dark Bronze (690) with a sleek full plastic cover that conceals all mounting and adjustment hardware.
Technical Specifications
| Feature | Specification |
| Grade | ANSI/BHMA A156.4 Grade 1 |
| Fire Rating | UL and cUL Listed for 3-Hour Fire Doors |
| Arm Type | Rigid Parallel Arm with Dead Stop (Push Side) |
| Body Material | Cast Aluminum with Rack and Pinion Operation |
| Adjustment | Adjustable with 8mm Socket or Wrench |
| Warranty | 5-Year Limited Warranty |
Applications & Best Use
The Accentra 2731 is specifically engineered for doors where a traditional floor or wall stop is not feasible or desired. It is ideal for exterior perimeter doors and high-traffic corridors where stopping the door's momentum safely is critical to preventing long-term structural damage to the opening.
| General - US Finishes | 689 - Spray Alumimun or 690 - Spray Dark Bronze |
| Brand | Accentra (formally Yale Security) |
| Series | Accentra - 2700 Series |
| Closer Arm Type | HD Positive Stop |
| Hold Open | Non-Hold Open |

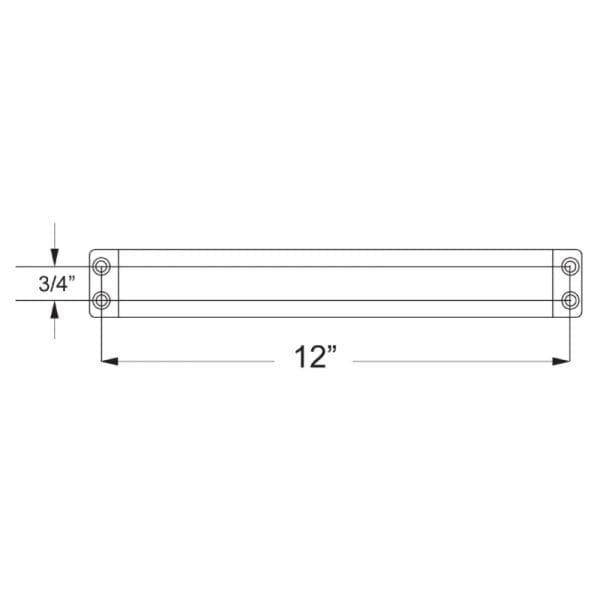

| Closer Body Hole Pattern | 12" x 3/4" |
