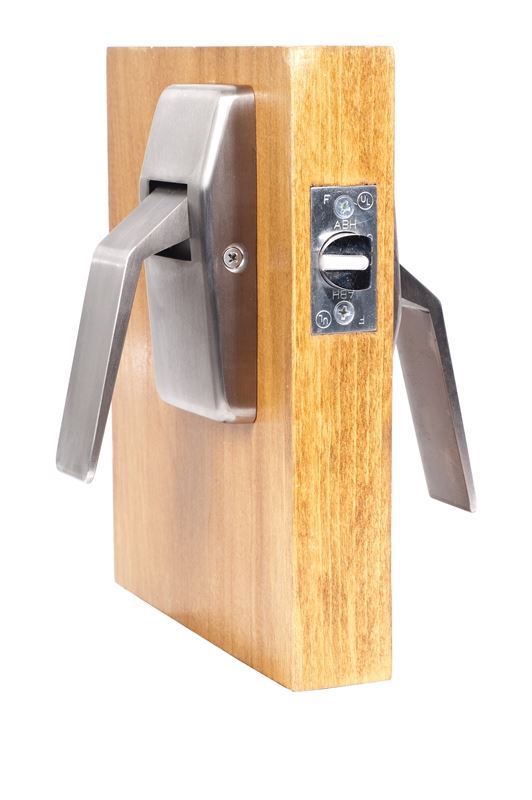

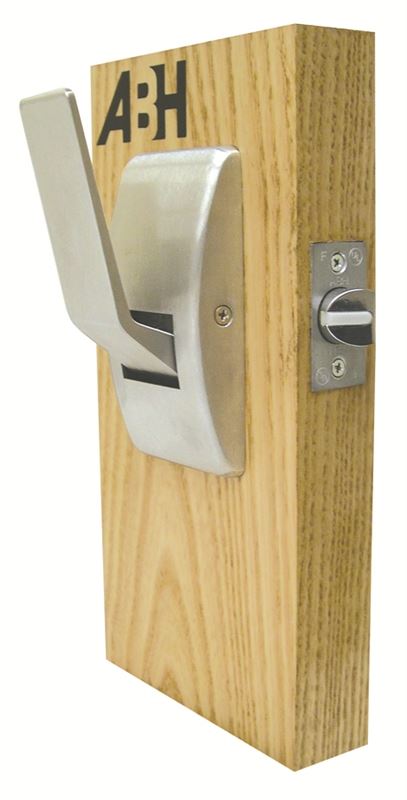

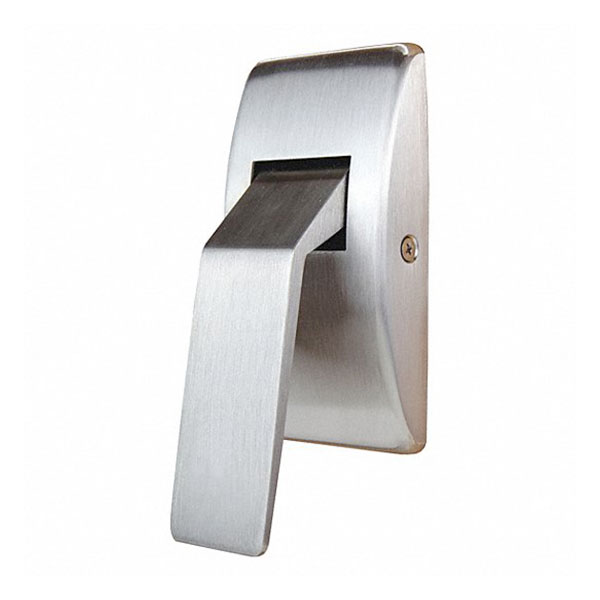

ABH 6819 Low Profile Push/Pull Latchset | Satin Stainless Steel

The ABH 6819 is a Grade 1, heavy-duty low profile push/pull latchset designed specifically for Right Hand (RH) door applications in demanding healthcare and institutional environments. Engineered as a premier solution for door restoration, this latchset features a specialized Push Down / Pull Down handle orientation. Crafted from architectural-grade stainless steel, the 6819 model provides a sleek, modern aesthetic while serving as a robust solution for commercial door convenience and universal accessibility.

Specialized Ergonomics for Healthcare & High-Traffic Access

The ABH 6819 is designed to facilitate effortless door transitions in fast-paced environments where hands-free access is a necessity for staff and patient safety:

• Intuitive Push Down / Pull Down Action: This specific configuration is optimized for Right Hand doors, allowing users to activate the latch with a natural downward motion on either side. This is an ideal solution for door surface repair in medical environments where staff frequently use elbows or hips to open doors while transporting equipment.

• Low Profile Architectural Footprint: With a slim cover projection of only 7/8" and a handle projection of 2-5/8", the 6819 significantly reduces the footprint on the door face. This prevents the hardware from catching on passing hospital stretchers, equipment carts, or pedestrians in narrow corridors.

• ADA Compliant Accessibility: Engineered to require less than 5 lbs of force for operation, ensuring the opening remains fully accessible and in total compliance with all ADA requirements.
• Patented Linear Acting Cam: Features a high-efficiency internal cam (Patent #7,258,374) that provides a smoother, more fluid motion than traditional pivot-style latches, reducing mechanical friction and user effort.


Industrial Stability with Thru-Bolt Engineering

The ABH 6819 is a Grade 1 architectural component built to withstand millions of cycles in the most demanding 24/7 institutions:

• Four Thru-Bolt Security: To ensure the unit remains rigid and perfectly aligned over time, the trim is mounted using four thru bolts. This heavy-duty "sandwich" installation provides maximum stability and serves as a robust solution for door edge reinforcement.

• Architectural Satin Stainless Steel: Finished in US32D (630), the 6819 is naturally corrosion-resistant, easy to sanitize, and maintains a premium appearance in both clinical and executive environments.

• Field-Reversible Flexibility: While specifically handed for Right Hand openings, the internal cam holder assembly is field-reversible, providing a versatile solution for door restoration should door functions or swings change during facility renovations.

• UL Fire Rated Protection: UL Listed for use on fire-rated doors (up to 90 minutes), ensuring your facility meets the highest standards for life safety and fire code compliance.


Technical Details & Specifications

• Brand: ABH Manufacturing
• Model: 6819 (Low Profile Series)

• Handing: Right Hand (RH)
• Operation: Push Down / Pull Down
• Finish: US32D / 630 (Satin Stainless Steel)
• Standard Door Thickness: 1-3/4” (Custom thicknesses available)

• Mounting: Four-Bolt Thru-Bolt Design
• Certifications: ANSI/BHMA Grade 1, ADA Compliant, UL Listed

Why Choose the ABH 6819?

For facilities that require the rugged durability of a hospital-grade latch with a modern, low-profile aesthetic, the ABH 6819 is the definitive choice. Its heavy-duty thru-bolt stability and specialized Push Down / Pull Down movement make it a reliable, long-term solution for door restoration. By combining ease of access with superior mechanical integrity, the 6819 ensures that your high-traffic commercial doors remain secure, compliant, and effortless to operate.
