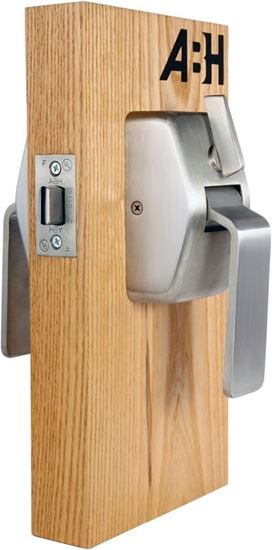

ABH 6400 Series Push/Pull Privacy Latchset | Satin Stainless Steel

The ABH 6400 Series is a heavy-duty, Grade 1 push/pull privacy latchset engineered specifically for healthcare patient rooms and commercial restrooms where privacy and accessibility are critical. As a premier solution for commercial door security, this latchset features a standard-profile design with a specialized privacy function (ANSI F76). This model includes a locking thumbturn on the pull side and an emergency override knob on the push side, making it the definitive solution for door restoration in modern medical facilities.

Specialized Privacy for Healthcare & Institutional Use

The ABH 6400 is designed to provide secure privacy without compromising emergency access. It is the gold standard for patient bathrooms and private clinical spaces:

• Integrated Privacy Locking: The door is locked by moving the thumbturn into the locked position. It is instantly unlocked by operating the handle on the thumbturn side or by using the emergency override knob on the opposite side—a vital safety solution for door restoration.

• Hands-Free ADA Accessibility: Featuring large, tactile paddles, the 6400 series meets ADA requirements for effortless operation. Users can open the door with an elbow or arm, providing a sanitary solution for door surface repair by reducing direct hand contact.

• Non-Handed Versatility: The unit is field-reversible and non-handed, allowing for easy installation on both left and right-hand doors. This flexibility makes it an ideal stock item for maintenance teams needing a quick solution for commercial door security.

• Durable Continuous Spring: Utilizing a patented internal spring design, the 6400 series offers a smoother, more consistent feel than traditional latches, ensuring the handles return to center and reducing mechanical fatigue.


Industrial-Grade Stability with Thru-Bolt Security

The ABH 6400 Series is built to withstand the constant use and abuse of 24/7 hospital environments. It acts as a robust solution for door edge reinforcement through its high-strength mounting architecture:

• Four Thru-Bolt Mounting: To ensure the unit remains rigid and never pulls loose from the door, the trim is secured using four thru bolts. This "clamping" installation distributes force across the door face, preventing the wobbling often found in cheaper, surface-mounted hardware.

• Architectural Satin Stainless Steel: Finished in US32D (630), this latchset is naturally corrosion-resistant and easy to sanitize, standing up to the aggressive medical-grade disinfectants used in sterile environments.

• UL Fire Rated Protection: UL Listed for use on fire doors rated up to 90 minutes, ensuring your facility remains compliant with all life safety and fire codes.

• Standard 161 Door Prep: Designed to fit standard government #161 door cutouts, making it a seamless solution for door restoration when upgrading existing hardware.

Technical Details & Specifications

• Brand: ABH Manufacturing
• Model: 6400 Series (Privacy Function)
• Locking: Thumbturn on Pull Side / Override Knob on Push Side

• Finish: US32D / 630 (Satin Stainless Steel)

• Standard Door Thickness: 1-3/4” (Specify if different)

• Backset: 2-3/4” Standard (3-3/4”, 5”, and 7” options available)

• Mounting: Four-Bolt Thru-Bolt Design

• Certifications: ANSI/BHMA Grade 1, ADA Compliant, UL Listed


Why Choose the ABH 6400 Series?

When your project requires the perfect balance of privacy, safety, and durability, the ABH 6400 Series is the highest-performing hardware choice. Its heavy-duty thru-bolt stability and reliable emergency override make it a permanent solution for door restoration in high-stakes environments. Whether you are outfitting a new surgical wing or upgrading a school's accessible restrooms, this latchset ensures a secure, professional, and compliant opening every time.
