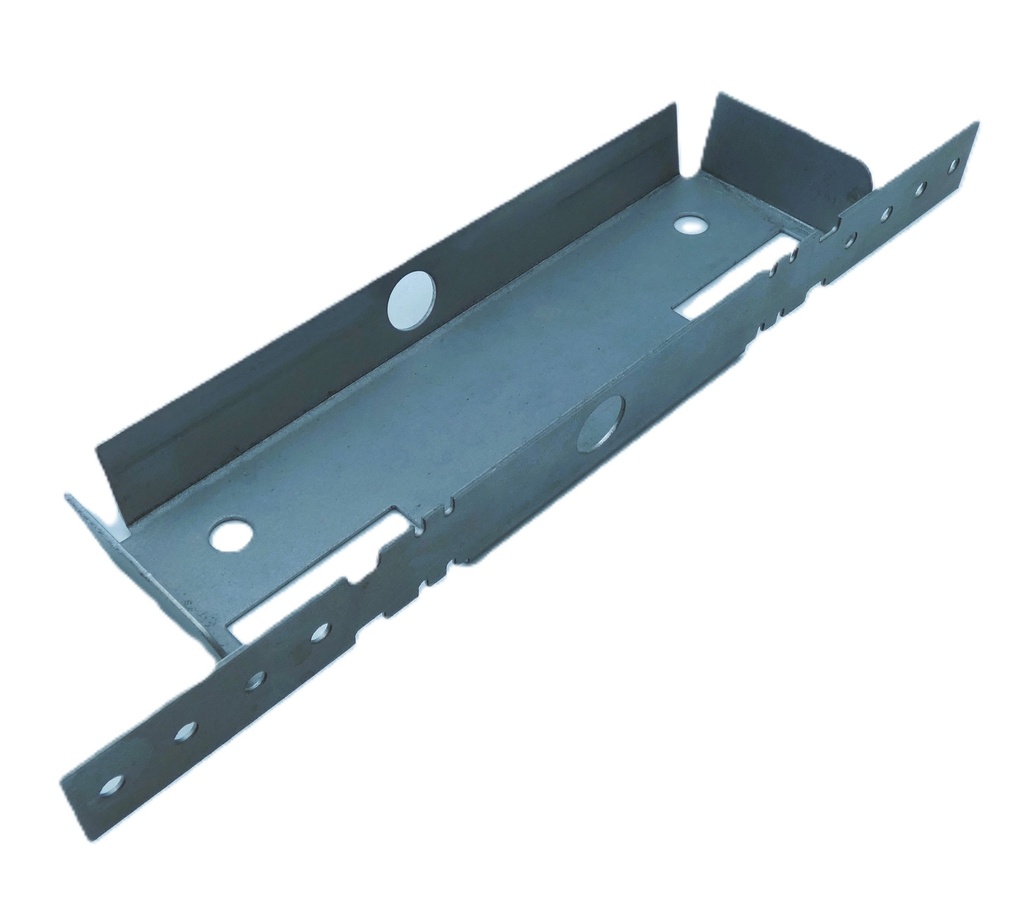

Curries 005136 Multi-Purpose Masonry Anchor | 6-3/4" Jamb Depth

The Curries 005136 is an industrial-strength multi-purpose frame anchor specifically engineered for the structural installation of Curries M Series masonry profile frames. Designed for wider wall profiles, this anchor provides a permanent, rigid bond between the hollow metal frame and a metal or wood stud wall. It is an essential solution for door restoration and new construction in heavy-duty commercial, industrial, and institutional environments.

Optimized for M-Series Masonry Frames

The Curries 005136 is tailored to meet the exact tolerances required for commercial hollow metal door openings:

• Masonry Profile Compatibility: Specifically designed to fit the throat of Curries Masonry (M Series) frames, providing a secure anchoring point that prevents frame shifting or twisting.

• Flexible Field Adjustment: Features integrated tabs that can be manually bent to accommodate jamb depth variations within a +/- 1/4" range. This makes it a versatile solution for door surface repair when working with inconsistent wall widths.

• Superior Load Distribution: Engineered to withstand the constant vibration and force of heavy doors, acting as a vital solution for door edge reinforcement at the frame foundation.

Professional Installation Requirements

To ensure a high-security, "no-fail" opening that complies with commercial building codes, proper anchor spacing is required:

• Standard Quantity: Industry standards typically require 3 anchors per jamb for a single door (6 anchors per total door opening) to ensure the frame remains plumb and square.
• 6-3/4" Jamb Depth: Precision-sized for 6-3/4" jamb depths, filling the frame throat to allow for proper grouting and mortar bonding.
• Corrosion-Resistant Steel: Manufactured from heavy-gauge galvanized steel to prevent rust and degradation within the masonry cavity, ensuring the long-term integrity of the door opening.

Technical Details & Specifications

• Brand: Curries (ASSA ABLOY)
• Model: 005136
• Frame Series: Masonry Profile (M Series)
• Standard Jamb Depth: 6-3/4"
• Adjustability: +/- 1/4" via bendable tabs

• Material: High-strength galvanized steel
• Quantity Recommendation: 3 per jamb / 6 per opening


Why Choose Genuine Curries Frame Anchors?

The Curries 005136 is the definitive choice for installers who require a reliable solution for commercial door security. By using genuine ASSA ABLOY components, you guarantee that your hollow metal frames are installed according to manufacturer specifications. Whether you are outfitting a warehouse, a hospital, or a correctional facility, these anchors provide the structural "grip" needed to maintain a perfectly aligned opening.

​
