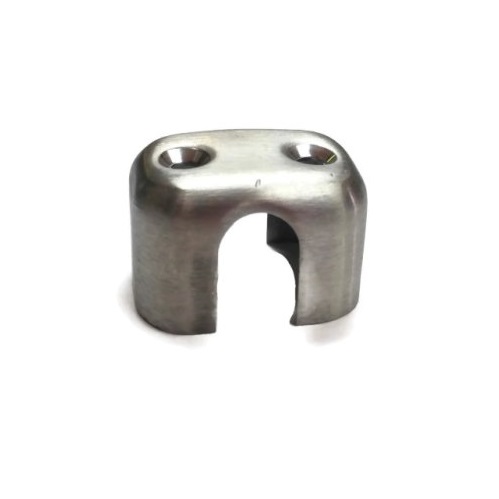

Sargent 97-0020 Rod Guide | For Surface Vertical Rod Devices

The Sargent 97-0020 is a genuine OEM replacement rod guide designed for Sargent Surface Vertical Rod (SVR) Exit Devices. Identified as Part #11 in technical service diagrams, this guide is critical for maintaining the vertical alignment of the top and bottom rods. By holding the rods flush against the door face, the 97-0020 prevents the rods from bowing or vibrating, which ensures the mechanical force from the push-bar is delivered directly to the latches for immediate egress.

Institutional Grade Features & Benefits

• Universal SVR Compatibility: Precision-engineered to fit the 8700, 9700, 3727, and 2727 Series surface vertical rod hardware.

• Eliminates Rod Rattle: Securely captures the vertical rod to prevent noisy vibration and metal-on-metal clanging during door operation.
• Reduces Mechanical Friction: Keeps the rod in a perfectly straight path, reducing the physical effort required to depress the pushpad and retract the latches.
• Heavy-Duty Durability: Manufactured from high-strength materials to withstand the impact and abuse common in high-traffic school hallways and hospital corridors.

• Essential for Security: Prevents the rods from being pulled away from the door face, protecting the integrity of the vertical locking system.

Technical Specifications

• Model Number: 97-0020
• Part Type: Vertical Rod Guide / Stabilizer
• Technical Reference: Part #11
• Compatibility: Sargent 8700, 9700, 3727, 2727 (SVR Series)

• Application: Top or Bottom Vertical Rods

The Sargent 97-0020 is often overlooked until it breaks or goes missing, causing the vertical rods to "flop" and the latches to bind. If your door is difficult to open or the rods feel loose, check your rod guides. A missing guide allows the rod to bow under tension, which can eventually bend the internal lift arms or snap the top latch springs.

Installation Note: For the highest level of security and to prevent the guide from being ripped off the door in high-use areas, we recommend mounting the 97-0020 using high-strength thru bolts. Standard surface screws can loosen over time due to the constant vibration of the rods; thru bolts provide a permanent, "sandwich-style" grip that keeps the guide and rod perfectly stationary.
