Sargent 41 Mortise Cylinder x LA Keyway

Price:

$ 112.50
  2. Shop
  3. Cylinders
  4. Sargent 41 Mortise Cylinder x LA Keyway
Sargent 1431 Closer x RUO Universal Arm
Sargent 1431 Closer x RUO Universal Arm
$ 437.33
$ 437.33
Sargent 42 Mortise Cylinder x LA Keyway
Sargent 42 Mortise Cylinder x LA Keyway
$ 112.50
$ 112.50

Sargent 41 Mortise Cylinder x LA Keyway

https://www.doorwaysplus.com/web/image/product.template/833/image_1920?unique=49dfafa

Sargent 41 Mortise Cylinder x LA Keyway

$ 112.50 112.5 USD $ 112.50

$ 112.50

Not Available For Sale

  • General - US Finishes
  • Brand
  • Cylinder Length
  • Cylinder Options
  • Sargent Mortise Cams
  • Key Length
  • Key Length

This combination does not exist.

Contact Us
Share :

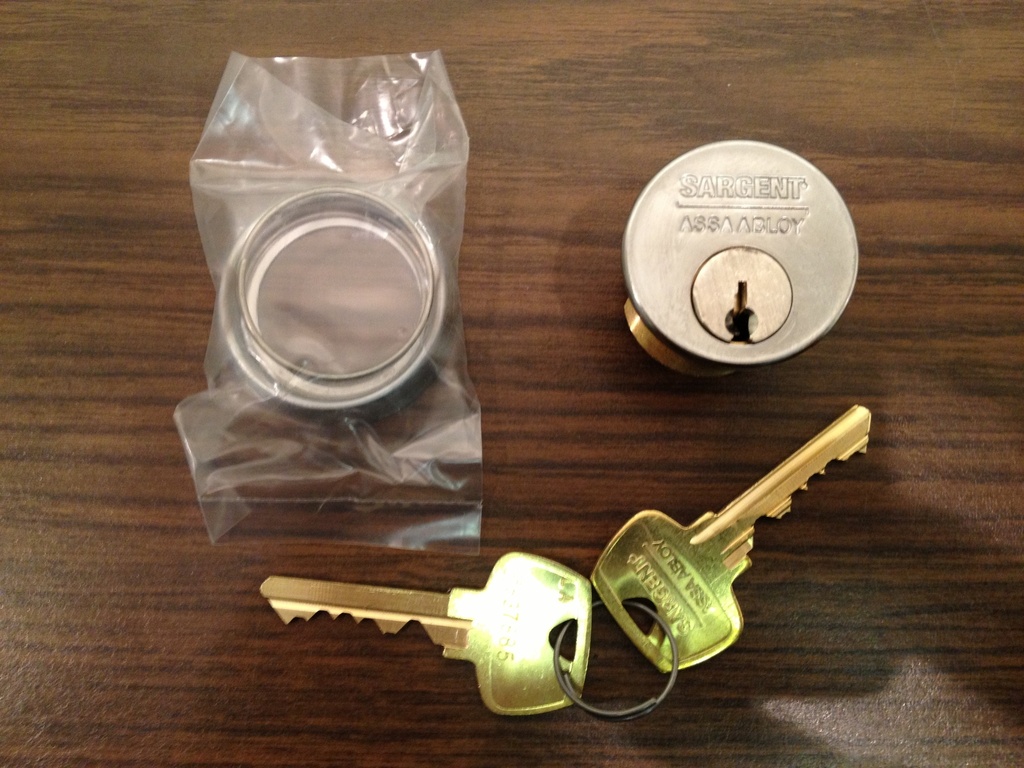

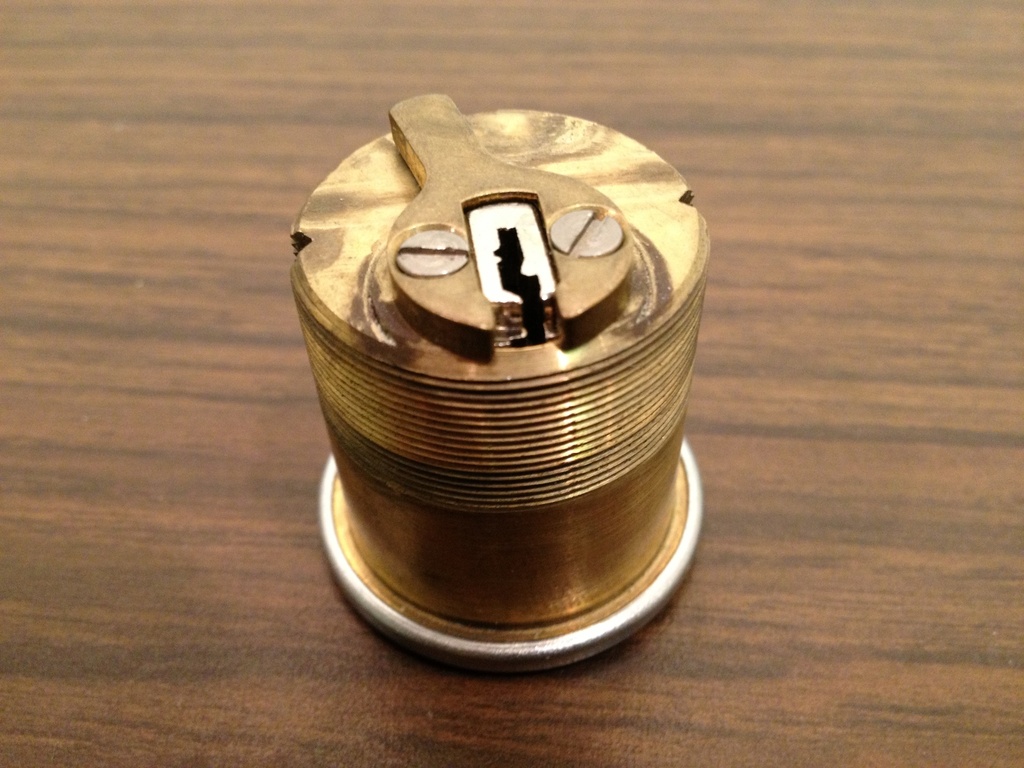

Sargent 41 Mortise Cylinder, 1 1/8" length x LA Keyway

6 pin
Solid Brass Cylinder, Conventional keyed
1-5/32" diameter
Furnished standard with No 97  (1/4" trim ring) rosette and compression spring
Standard Sargent offset cam 13-0664
Cylinders are keyed differently with 2 keys each
Cylinders are stocked in US26D, US10, US10B, US32D US3 & US5
Other finishes available by quote include US9,  US10BL, US15, US20D, US26, US32

Need a different Sargent keyway? Change the LA keyway to another keyway. Please call us for a quote

Sargent Mortise Cylinder dimensions


General - US Finishes US26D - Satin Chrome or US32D - Satin Stainless Steel/ 630 or US3 - Polished Brass or US5 - Blackened Satin Brass or US10 - Satin Bronze or US10B - Oil Rubbed Bronze
Brand Sargent
Cylinder Length 1-1/8"
Cylinder Options LA Keyway
Sargent Mortise Cams Standard
Key Length 5 Pin, 6 Pin
Sargent Conventional Cylinder Catalog
