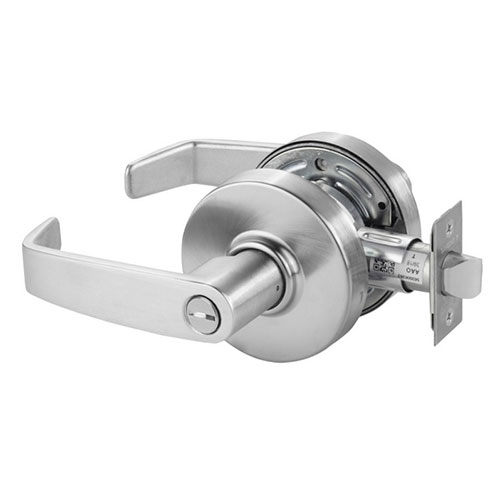

Sargent 28-7U65 LL Privacy Function, Cylindrical Latchset
A bathroom privacy latchset suitable for standard duty use on both exterior and interior restroom doors in settings such as offices, commercial spaces, medical facilities, government buildings, and public areas. It surpasses ANSI/BHMA A156 2 standards for performance and longevity.
Function Information:
All Locks and Latches include 4 7/8" ASA Strike - Only. 2 1/4" Full Lip Strikes and 2 3/4" T Strikes are available separately
Strength and Durability
- Cycle Test: Exceeds ANSI/BHMA A156 2 Grade 2 cycle requirements
- 5 Year limited warranty. No service required
Convenience
- Installs in 1 minute or less
- Non-handed design for ease of installation and efficient warehousing — with standard lever designs (Except G&Y)
- User friendly packaging
- User friendly instruction
- Convenient installation diagram on box
Design
- Solid feel and precise lever action
- Decorative Levers — Coastal Series designs – Gulfport and Yarmouth
- Levers are solid, one-piece cast construction
Flexibility
- Fits modified 161 door preps Internal through-bolts supply strength and stability without requiring additional door preparation
- 14 architectural grade finishes
- 10 standard functions
- SARGENT uses engineered solutions and flexible manufacturing processes to accommodate special applications
Security
- Torx® and spanner screws optional
- Security key systems available (Degree®, Signature, XC, Keso, and Keso F1)
- Vandal resistant trim optional (FW- option)
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 625 - US26 Polish Chrome |
| Backset | 2-3/4" Backset or 2-3/8" Backset |
| Brand | Sargent |
| ANSI Cyl Lock Function | F76 - Privacy |
| Trim Design | LL |
| Series | Sargent - 7 Line |
| Occupancy Indicator | No |
