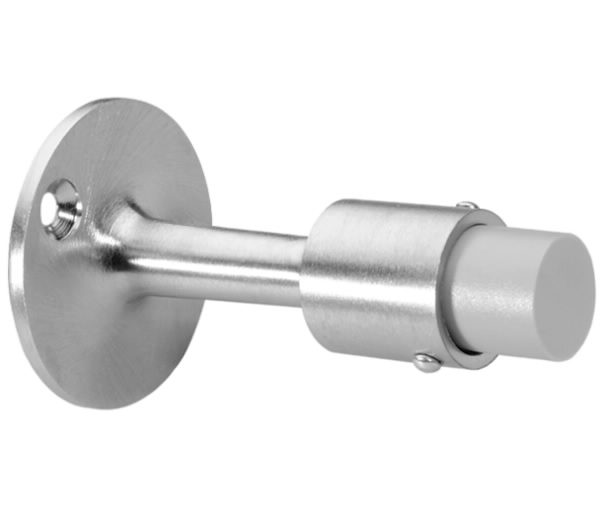

Rockwood 475 Heavy-Duty Wall Mounted Door Stop | 3-3/4" Projection
The Rockwood 475 Wall Stop is a robust, commercial-grade solution engineered for high-traffic environments and heavy-duty doors. Crafted from solid cast brass, this stop features an extended 3-3/4" projection, making it the ideal choice for applications where standard door stops are too short to prevent hardware from impacting the wall. Equipped with a DuraFlex bumper, it provides superior impact absorption, ensuring long-term protection for both your doors and your facility's walls.
Industrial-Grade Durability & Performance
- Extended Reach for Heavy Doors: The generous 3-3/4" projection is designed to clear large levers, exit devices, or specialized trim that typical 1-inch stops cannot accommodate.
- Premium Cast Brass Construction: Built to withstand constant abuse in institutions, schools, and hospitals, providing a much higher service life than standard residential options.
- ANSI/BHMA Certified: Fully compliant with ANSI A156.16: L02021 standards, ensuring it meets the highest industry benchmarks for strength and quality.
- Non-Marring DuraFlex Bumper: The resilient rubber-like bumper absorbs the shock of heavy swinging doors without scuffing the door face or losing its shape over time.
Versatile Installation & Finish Options
- Secure Single-Point Mounting: The 475 model features a simplified one-hole mounting design, provided with a 5/16 - 18 x 1-3/4" stud and lead anchor for masonry, plus a secondary sheet metal screw and plastic anchor for versatile wall types.
- Architectural Aesthetics: Available in a wide range of professional finishes to match your existing hardware, including Satin Chrome (US26D), Oil Rubbed Bronze (US10B), and Bright Brass (US3).
- Compact Base: The 2-1/4" diameter base provides a stable foundation that distributes impact force effectively, preventing the stop from being pushed through the drywall.
Technical Specifications
- Model: Rockwood 475
- Material: Solid Cast Brass with DuraFlex Bumper
- Base Diameter: 2-1/4"
- Projection: 3-3/4"
- ANSI Code: L02021
- Fasteners: 1 ea. 5/16 - 18 x 1-3/4 stud, lead anchor; #8 x 3/4 OH SMS, plastic anchor
| General - US Finishes | US26D - Satin Chrome or US26 - Polished Chrome or BSP - Black Suede Power Coat or US15 - Satin Nickel or US3 - Polished Brass or US4 - Satin Brass or US10 - Satin Bronze or US10B - Oil Rubbed Bronze or US10BE - Oil Rub Bronze Equal |
| Brand | Rockwood |
| Stop Type | Wall Stop |
| Projection | 3-3/4 Inch |
Rockwood Condensed Catalog 2017.pdf
Download
