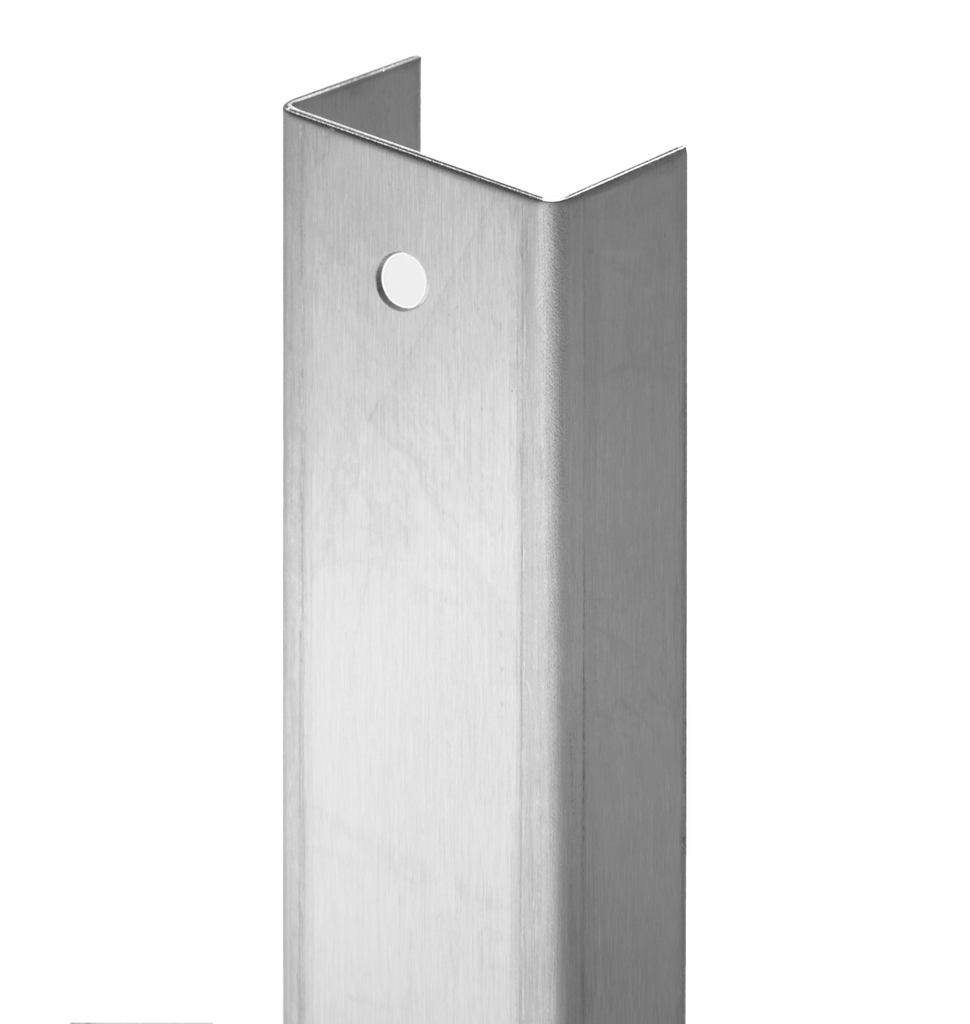

Rockwood 306B Beveled Door Edge Guard | Stainless Steel Protection
The Rockwood 306B Beveled Door Edge Guard is a high-performance architectural solution designed to shield the vertical edges of beveled doors from constant impact. Featuring a U-shaped "wrap-around" design, it provides simultaneous protection for both the door face and the edge. Crafted from .050" thick stainless steel, this surface-applied guard is the industry standard for maintaining the structural integrity of doors in hospital corridors, loading docks, and school entryways.
Industrial-Grade Protection & Fire Safety
- Beveled Edge Optimization: Specifically engineered for beveled-edge doors, ensuring a precision fit that doesn't interfere with the door's latching or closing cycle.
- Non-Mortised Surface Application: The low-profile design allows for surface-applied installation, eliminating the need for complex door prep or mortising while maintaining a clean, professional aesthetic.
- UL Fire Rated Options: Available as the 306B-UL, this guard is UL listed for use on wood/plastic fire doors (up to 1.5 hours) and hollow metal/composite fire doors (up to 3 hours).
- Corrosion-Resistant Stainless Steel: The US32D Satin Stainless Steel finish offers superior durability and resistance to harsh cleaning chemicals and heavy carts.
Technical Specifications
- Model: Rockwood 306B (Beveled)
- Material: .050" Thick Stainless Steel
- Finish: US32D Satin Stainless Steel
- Door Thickness: Sized for standard 1-3/4" thick doors (Custom thicknesses available).
- Fasteners: Included #6 x 5/8" FH SMS.
- Dimensions: Custom lengths and cutouts for hinges or locks are available by quote.
| Height | 36 inch Ht or 40 inch Ht or 48 inch Ht |
| Fire Rated | Non-Rated or Fire Rated |
| Brand | Rockwood |
| General - US Finishes | US32D - Satin Stainless Steel/ 630 |
| Door Edge | Beveled |
| Door Edge Type | Non-Mortised |
| Door Thickness | 1-3/4" Dr Thickness |
