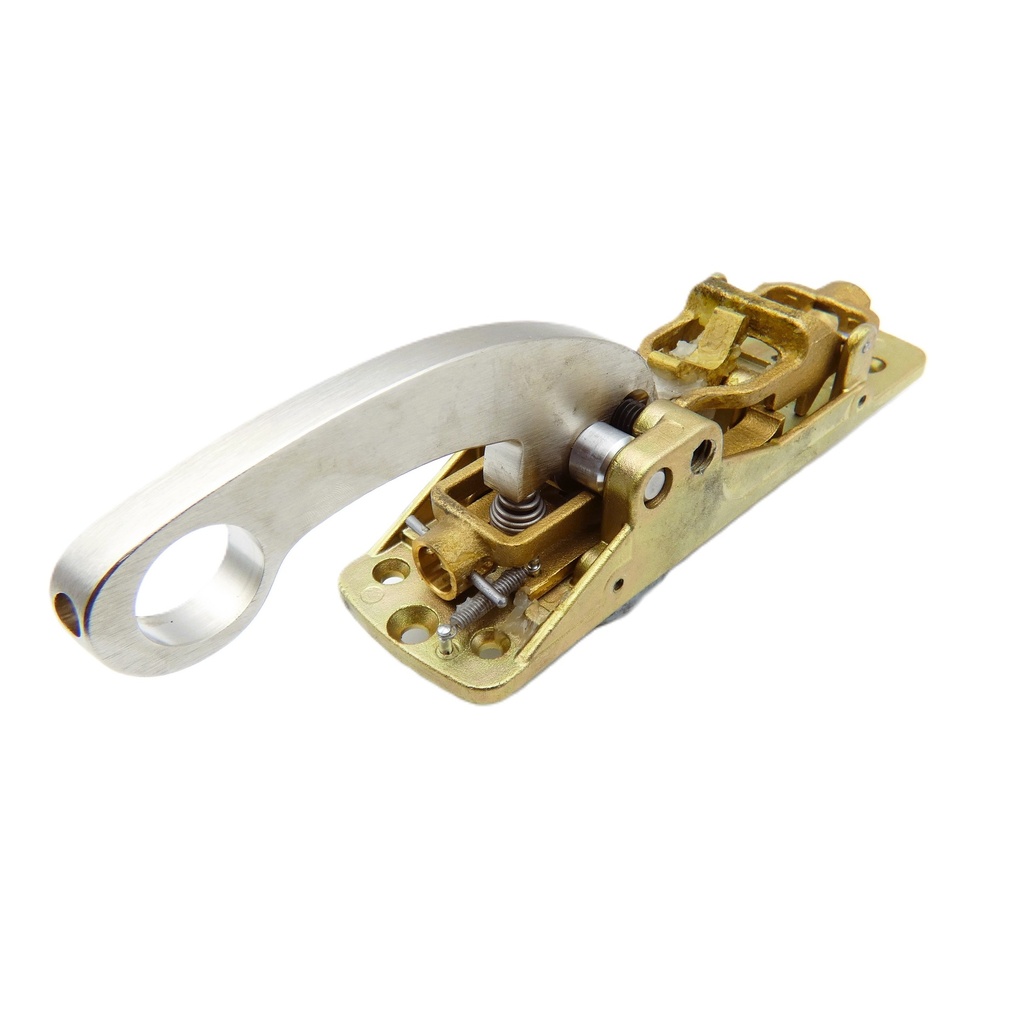

Sargent 97-2042 Chassis Assembly - Less Cover (Non-Fire Rated)

The Sargent 97-2042 is a genuine OEM Chassis Assembly designed specifically for the Sargent 9700 Series Surface Vertical Rod Exit Device. As the primary mechanical housing, it contains the latch bolt, the main heavy-duty springs, and the internal linkage required to operate the push bar. This Non-Fire Rated version is the factory-standard replacement for commercial and institutional doors where panic hardware is required, providing the smooth, reliable Grade 1 performance Sargent is known for.

Institutional Grade Features

• Core Mechanical Engine: Contains the entire active mechanism for the device. If your exit device is sticking, jammed internally, or has a broken latch, replacing the 97-2042 chassis is the fastest way to restore full functionality.
• 9700 Series Compatibility: Engineered for a seamless fit with the Sargent 9700 Surface Vertical Rod Exit Device, ensuring perfect alignment with existing rails and strikes.
• "Less Cover" Configuration: This unit is sold without the architectural housing cover, allowing you to reuse your existing cover to maintain the visual consistency and finish of your current door hardware.
• Direct OEM Replacement: Ensures that all internal "timing" for latch retraction and dogging is factory-calibrated for maximum life cycles and security.
• Heavy-Duty Latch Bolt: Features the high-strength Sargent latch bolt designed to withstand high-traffic use in schools, office buildings, and retail spaces.

Technical Specifications

• Manufacturer: Sargent (ASSA ABLOY)
• Model Number: 97-2042
• Function: Storeroom/ Nightlatch (9706) or Classroom (9713)
• Device Type: Rim Exit Device Chassis
• Series Compatibility: Sargent 9700 Series
• Rating: Non-Fire Rated (Panic Hardware)
• Note: For Fire-Rated applications, use Chassis Assembly #97-2240

​
