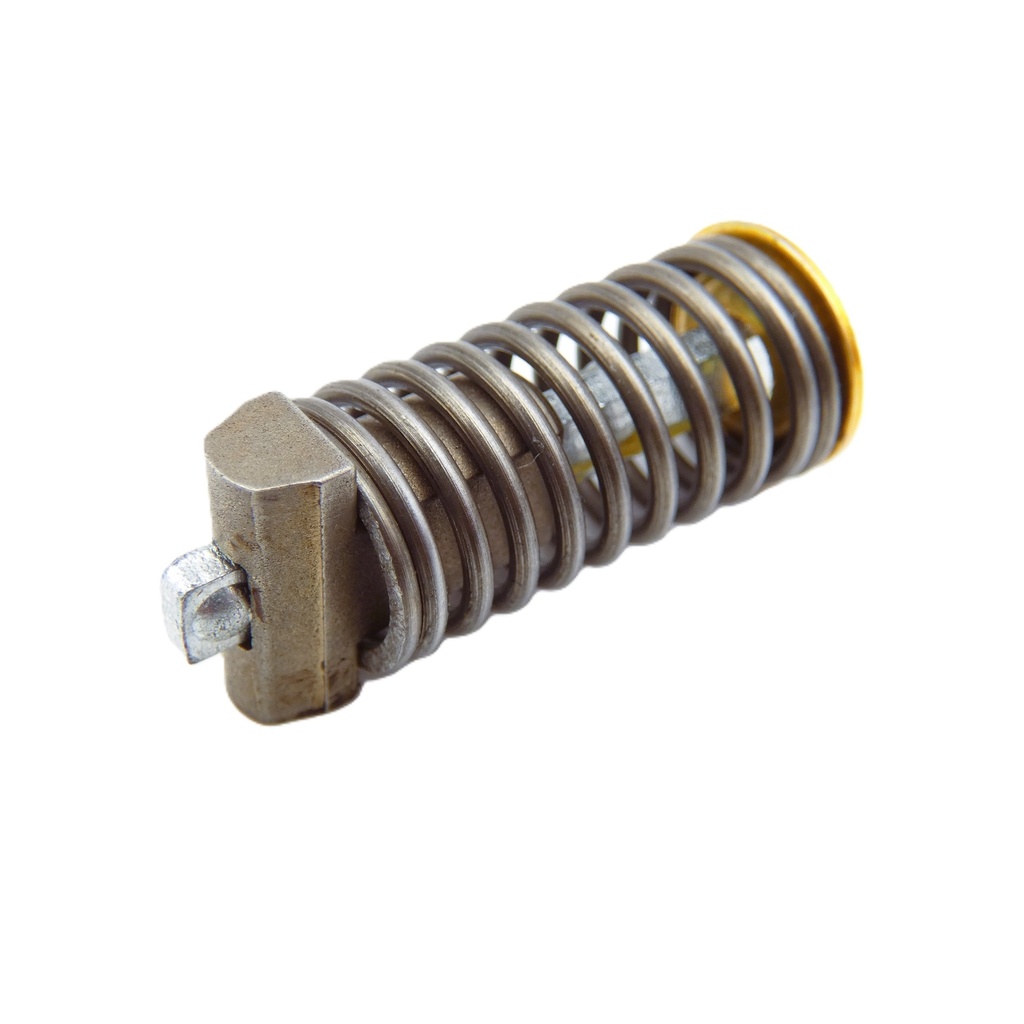

Sargent 82-2004 Spring Cartridge Assembly | For 8200 Series Mortise Locks

The Sargent 82-2004 is a genuine OEM Spring Cartridge Assembly engineered specifically for the Sargent 8200 Series mortise lock. This assembly is the "engine" of the lever trim, providing the necessary tension to return the lever to a perfectly horizontal position after each use. Identified as Part #17 on official Sargent technical diagrams, this cartridge is essential for preventing "lever sag" and ensuring the internal hub timing remains precise.

Institutional Grade Features & Benefits

• High-Cycle Durability: Contains a heavy-duty clock spring designed to withstand millions of cycles in high-traffic commercial and institutional environments.

• Restores Horizontal Alignment: Specifically engineered to eliminate "drooping" or "sagging" levers, which can cause both aesthetic issues and mechanical binding.
• Direct OEM Replacement: A factory-spec component that fits perfectly within the 8200 series cassette, maintaining the Grade 1 status of your hardware.
• Smooth Tactile Feedback: Restores the crisp, positive "snap-back" feel that users expect from premium Sargent hardware.
• Easy Maintenance: Replacing Part #17 is a fast and cost-effective way to refresh a mortise lock body without the expense of a full device replacement.

Technical Specifications

• Model Number: 82-2004
• Part Type: Internal Spring Cartridge Assembly
• Compatibility: Sargent 8200 Series Mortise Locks
• Technical Reference: Part #17 on Sargent 8200 Series Exploded View Diagrams
• Material: Tempered Spring Steel and Heavy-Duty Housing

​
