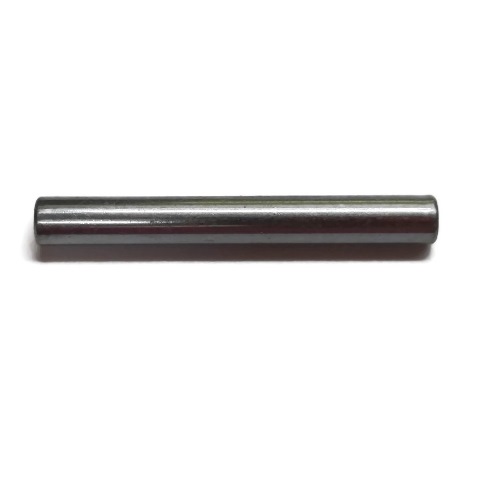

Sargent 68-0945 Pivot Pin | For 20, 30 & 80 Series Mounting Rails

The Sargent 68-0945 is a genuine OEM replacement Pivot Pin designed specifically for the mounting rail side of Sargent 20, 30, and 80 Series Exit Devices. This is the current style pin, engineered to provide a low-friction axis for the pushpad mechanism. As a critical load-bearing part, the 68-0945 ensures that the push-bar remains perfectly aligned and responds instantly to pressure, maintaining the life-safety integrity of your exit openings.

Institutional Grade Features & Benefits

• Universal Rail Compatibility: Precision-fit for the mounting rails of Sargent’s most popular exit device lines, including the heavy-duty 80 Series and the 20/30 Series crossbar and push-rail hardware.
• Essential Maintenance Part: Identified as Part #6 in technical diagrams; two pins are required per rail device to ensure balanced rotation and prevent rail sagging.

• Current Style Engineering: Updated design for modern Sargent rails, ensuring maximum durability and resistance to shearing under high-cycle use.
• Hardened Steel Construction: Manufactured from high-strength alloy to withstand the constant pivot force required in schools, hospitals, and busy commercial exits.
• Smooth Mechanical Response: Replacing worn or bent pivot pins eliminates "stickiness" in the pushpad and ensures a quiet, reliable exit experience.

Technical Specifications

• Model Number: 68-0945
• Part Type: Mounting Rail Pivot Pin
• Series Compatibility: Sargent 20, 30, and 80 Series
• Quantity Required: 2 per Device
• Design Version: Current Style (Post-vantage design)
• Technical Reference: Part #6 on Rail Assembly Diagrams

The Sargent 68-0945 is the most common fix for an exit device rail that feels "loose" or "rattly." Over years of use, these pins can develop grooves or flat spots, causing the pushpad to sit at an angle. If one pin fails, it puts double the stress on the remaining pin, which can lead to a total mechanical jam. We always recommend replacing these in pairs to ensure the rail stays perfectly level.

Installation Note: For the pivot pins to stay seated and rotate freely, the mounting rail must be perfectly stable against the door face. We highly recommend securing the mounting rail and chassis using high-strength thru bolts. If the rail is loose, it causes the 68-0945 pins to "bind" against the bracket, which is the leading cause of pin shearing and internal rail wear.
