Sargent 68-0229 Pivot Pin | US32D Satin Stainless Steel

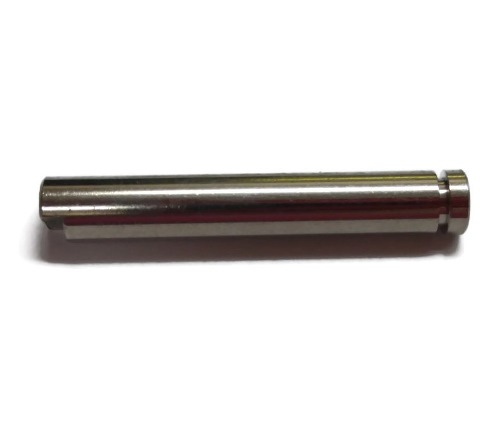

The Sargent 68-0229 is a genuine OEM replacement Pivot Pin designed for the push rail side of Sargent 20, 30, and 80 Series Exit Devices. Finished in US32D (Satin Stainless Steel), this pin serves as the primary axis for the push-bar mechanism. Identified as Part #7 in technical rail diagrams, this current style pin is engineered to withstand the high-cycle demands of institutional and commercial environments.
Institutional Grade Features & Benefits
- Wide Series Compatibility: Engineered to fit the internal rail architecture of Sargent’s heavy-duty 80 Series and the versatile 20/30 Series push-rail devices.
- Corrosion-Resistant US32D Finish: The Satin Stainless Steel finish offers superior durability and matches the architectural aesthetic of modern door hardware.
- Essential Component Pair: Two pins are required per rail device to ensure balanced operation and prevent the push-rail from sagging or binding.
- Current Style Design: Replaces older pivot pins with a modernized, high-strength geometry designed for smoother rotation and longer service life.
- Smooth Mechanical Action: Replacing worn, grooved, or bent pins restores the "snap-back" feel of the pushpad and ensures reliable latch retraction.
Technical Specifications
- Model Number: 68-0229
- Part Type: Push Rail Side Pivot Pin
- Series Compatibility: Sargent 20, 30, and 80 Series
- Finish: US32D (Satin Stainless Steel)
- Quantity Required: 2 per Device
- Technical Reference: Part #7 on Rail Assembly Diagrams
The Sargent 68-0229 is often the culprit behind a "sticky" or uneven push-bar. Because these pins bear the constant force of every person exiting the building, they can eventually develop flat spots. If your rail feels like it’s catching or clicking during use, it’s time to replace your pivot pins. We always recommend replacing these in pairs to maintain even tension across the rail assembly.
Installation Note: To ensure long-term stability and prevent the pivot pins from vibrating loose, the rail must be securely fixed to the door. We highly recommend anchoring the device using high-strength thru bolts. A stable, thru-bolted connection prevents the mounting rail from shifting, which keeps the 68-0229 pins in perfect alignment and prevents them from shearing under heavy torque.
| Brand | Sargent |
| General - US Finishes | US32D - Satin Stainless Steel/ 630 |
| Series | Sargent - 20 Series, Sargent - 30 Series, Sargent - 80 Series |
