Sargent 05-0031 Cylinder Filler Bushing Ring - Package of 5

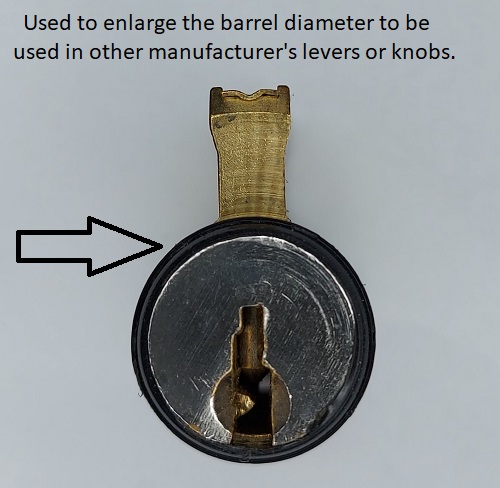

The Sargent 05-0031 is a precision-engineered Cylinder Filler Bushing Ring designed to bridge the gap between Sargent’s unique cylinder diameter and standard industry lockset preps. Because Sargent cylinders are manufactured with a smaller outer diameter than competitors like Schlage, Ilco, or Hager, this bushing is required to center and secure a Sargent cylinder within a larger housing. Sold in a package of 5, these rings are a "toolbox essential" for any facility looking to maintain a unified Sargent key system across mixed-manufacturer hardware.

Institutional Grade Features

• Universal Sargent Compatibility: Designed to fit cylinders used in the Sargent 11 Line, 10 Line, 7 Line, 6500 Series, and 6 Line lever sets.

• Exit Device Versatility: Compatible with Sargent 80 Series and 30 Series exit device trims, ensuring a tight, wobble-free fit for the cylinder.

• Cross-Manufacturer Retrofit: The primary solution for installing Sargent cylinders into locksets from manufacturers such as Schlage, Ilco, Hager, and PDQ, where the cylinder bore is traditionally larger.

• Precision Centering: Eliminates the "slop" or rattling that occurs when a smaller Sargent cylinder is placed in a standard 1-1/8" or 1-1/4" bore, protecting the internal tailpiece from binding.
• Durable Construction: Manufactured to OEM tolerances to ensure the ring does not compress or deform under the torque of the cylinder nut.

Technical Specifications

• Manufacturer: Sargent (ASSA ABLOY)
• Model Number: 05-0031
• Part Type: Cylinder Filler / Spacer Bushing
• Quantity: Package of 5
• Application: Diameter reduction for Sargent cylinders
