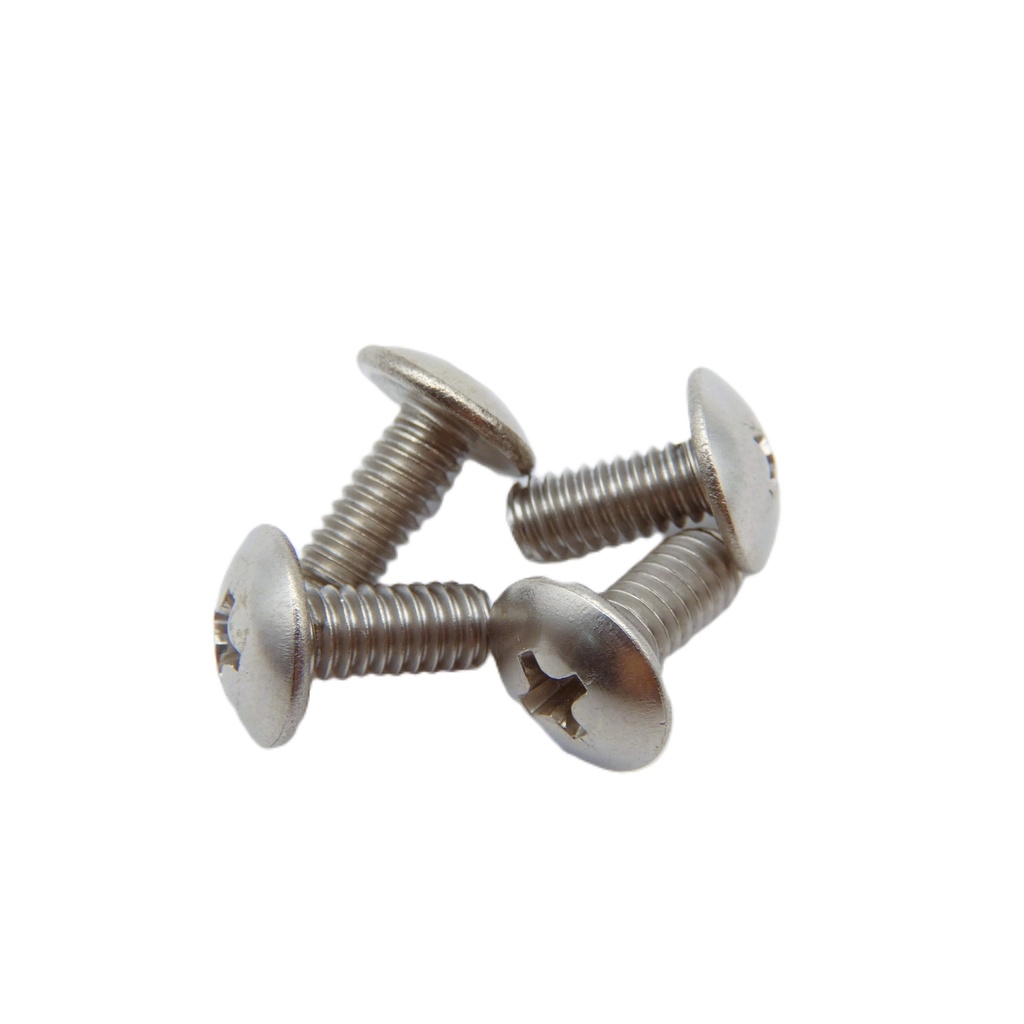

Sargent 01-1141 US32D Machine Screw - Package of 4
The Sargent 01-1141 is a genuine OEM Machine Screw designed to provide a high-strength connection between the exit device rail and the chassis assembly. These specialized fasteners are the primary anchors for the structural framework of the device. Finished in US32D (Satin Stainless Steel), they offer superior corrosion resistance and a professional architectural finish that matches the high-standard aesthetic of Sargent’s Grade 1 hardware.
Institutional Grade Features
- Critical Structural Support: Specifically engineered to mount the exit device rail to the active chassis, ensuring the entire unit operates as a single, rigid assembly.
- Versatile Compatibility: This is the standard mounting screw for multiple generations of Sargent hardware:
- 80 Series: Requires 2 screws per device.
- 20 & 30 Series: Requires 4 screws per device.
- Precision Specifications: Each screw is a #8-32 x 3/8" Phillips head with a countersunk (flat head) design, allowing for a flush, snag-free installation within the device rail.
- Direct OEM Replacement: Identified as Part #13 in Sargent technical manuals, ensuring factory-spec thread pitch and head geometry for a perfect fit.
- High-Durability Finish: The US32D Stainless Steel finish provides maximum longevity in high-moisture environments or high-traffic corridors where cleaning chemicals are frequently used.
Technical Specifications
- Manufacturer: Sargent (ASSA ABLOY)
- Model Number: 01-1141
- Size: #8-32 Machine Thread x 3/8" Length
- Head Type: Phillips Drive / Countersunk (Flat Head)
- Finish: US32D (Satin Stainless Steel / 630)
- Quantity: Package of 4
| Brand | Sargent |
| Series | Sargent - 80 Series, Sargent - 30 Series, Sargent - 20 Series |
| Part Type | Screw |
