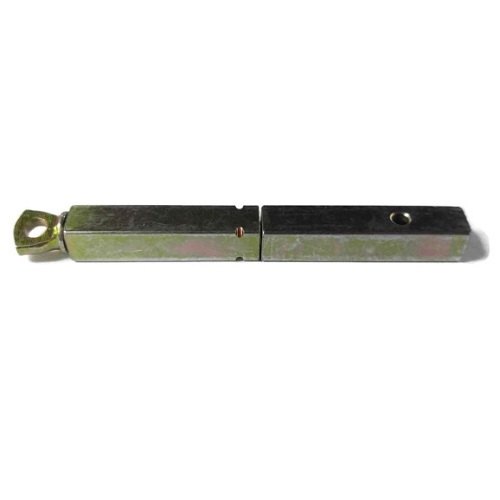

Corbin Russwin 499F83-8 Spindle - For ML2000 Series (1-3/4" Doors)
The Corbin Russwin 499F83-8 is a genuine OEM Mortise Lock Spindle designed specifically for the ML2000 Series heavy-duty mortise locks. This spindle acts as the critical drive shaft, transmitting the rotation of the lever handles directly into the mortise lock case to retract the latchbolt. Engineered for 1-3/4" thick doors, this Grade 1 component is a factory-standard replacement part that ensures your door hardware operates with the smooth, synchronized feel that Corbin Russwin is known for.
Institutional Grade Features
- ML2000 Series Precision: Purpose-built for the ML2000 architecture, providing the exact dimensions required to interface with the lock’s internal hubs without binding.
- Standard Door Optimization: Calibrated for the industry-standard 1-3/4" door thickness, ensuring the spindle is perfectly centered between the interior and exterior trim.
- Two-Piece Swivel Design: Engineered to support independent lever movement (where applicable), allowing the outside lever to remain locked while the inside lever provides free egress.
- High-Torque Construction: Manufactured from high-strength steel to resist the twisting forces and mechanical fatigue associated with high-traffic commercial and institutional use.
- Direct OEM Replacement: Using the 499F83-8 maintains the UL fire-rating and mechanical warranty of your ML2000 mortise locksets.
Technical Specifications
- Manufacturer: Corbin Russwin (ASSA ABLOY)
- Model Number: 499F83-8
- Compatible Lock Series: ML2000 Series Mortise Locks
- Door Thickness: 1-3/4" (Standard)
- Part Type: Replacement Lever Spindle
| Brand | Corbin Russwin |
| Series | Corbin Russwin - ML2000 Series |
| Part Type | Spindle |
| Door Thickness | 1-3/4" Dr Thickness |
CR Lockset ML2000 45300 315.pdf
Download
Corbin Russwin M, N, and P Escutcheon Trim for ML2000 Series Mortise Locks Installation Instructions.pdf
Download
Corbin Russwin ML2000 Mortise Lock Parts Diagrams 45305.pdf
Download
Corbin Russwin Sectional Trim for ML2000 Series Mortise Locks Installation Instructions.pdf
Download
