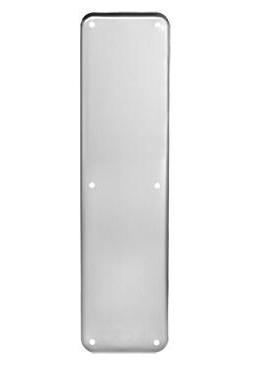

Rockwood 85 Raised Push Plate | 3.5" x 15" Cold Forged Stainless Steel
The Rockwood 85 Raised Push Plate is a specialized architectural solution designed for high-traffic doors with unique mounting requirements. Unlike standard flat plates, the Rockwood 85 is cold forged to create a raised profile. This design is specifically engineered for doors where pull handle mounting screws or internal hardware cannot be recessed flush with the door surface. By providing a 1/4" projection, this plate fits perfectly over protruding fasteners, ensuring a clean, professional appearance and a smooth "push" surface.
Heavy-Duty Engineering & Compliance
- Cold Forged Strength: Manufactured through a cold forging process to a substantial 7/32" thickness, providing superior rigidity and resistance to denting or bending in industrial environments.
- Protrusion Clearance: The 1/4" projection creates the necessary internal clearance to straddle thru bolts or mounting screws from the opposite side of the door.
- ANSI/BHMA Certified: Meets ANSI J302 standards, guaranteeing that the plate meets architectural requirements for quality, finish, and durability.
- Premium US32D Finish: Crafted from Satin Stainless Steel, offering a corrosion-resistant, easy-to-clean surface that is ideal for hospitals, schools, and commercial kitchens.
Technical Specifications
- Model: Rockwood 85
- Material: Cold Forged Stainless Steel
- Finish: US32D (Satin Stainless)
- Size: 3.5" x 15"
- Projection: 1/4"
- Thickness: 7/32"
- ANSI Code: J302
| General - US Finishes | US32D - Satin Stainless Steel/ 630 |
| Brand | Rockwood |
| Plate Height | 15" |
| Plate Width | 3.5" |
Rockwood Condensed Catalog 2017.pdf
Download
