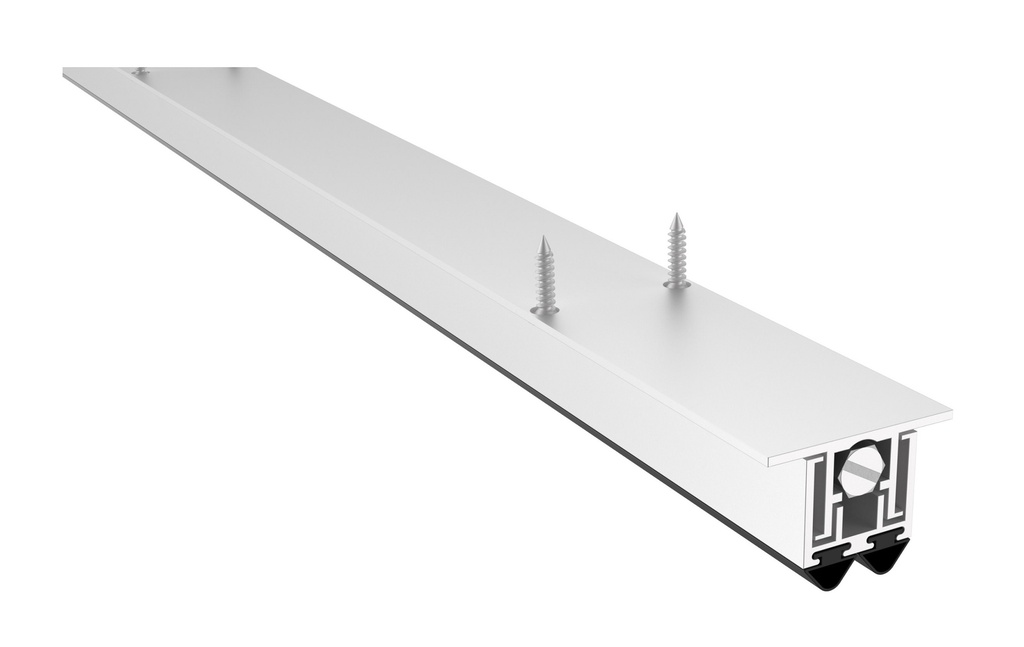

Pemko 420APKL Hollow Metal Automatic Door Bottom with PemkoPrene Insert
The 420 Series Full Mortise Automatic Door Bottom is specifically designed for hollow metal doors with a 13/16" inverted channel. It features a heavy-duty mechanism for smooth operation and is fitted with two fire-rated rubber seals. This door bottom prevents drafts, dust, moisture, smoke, fire, and sound from entering the gap under the door. It can be easily cut in the field for additional adjustment. The aluminum casing is fully mortised, maintaining the appearance of the door alleviating the need for end plates.
Specifications
- Base Material: Aluminum
- Fasteners: PHSMS #6 x 5/8"
- Maximum Length: 72"
- Minimum Length: 12"

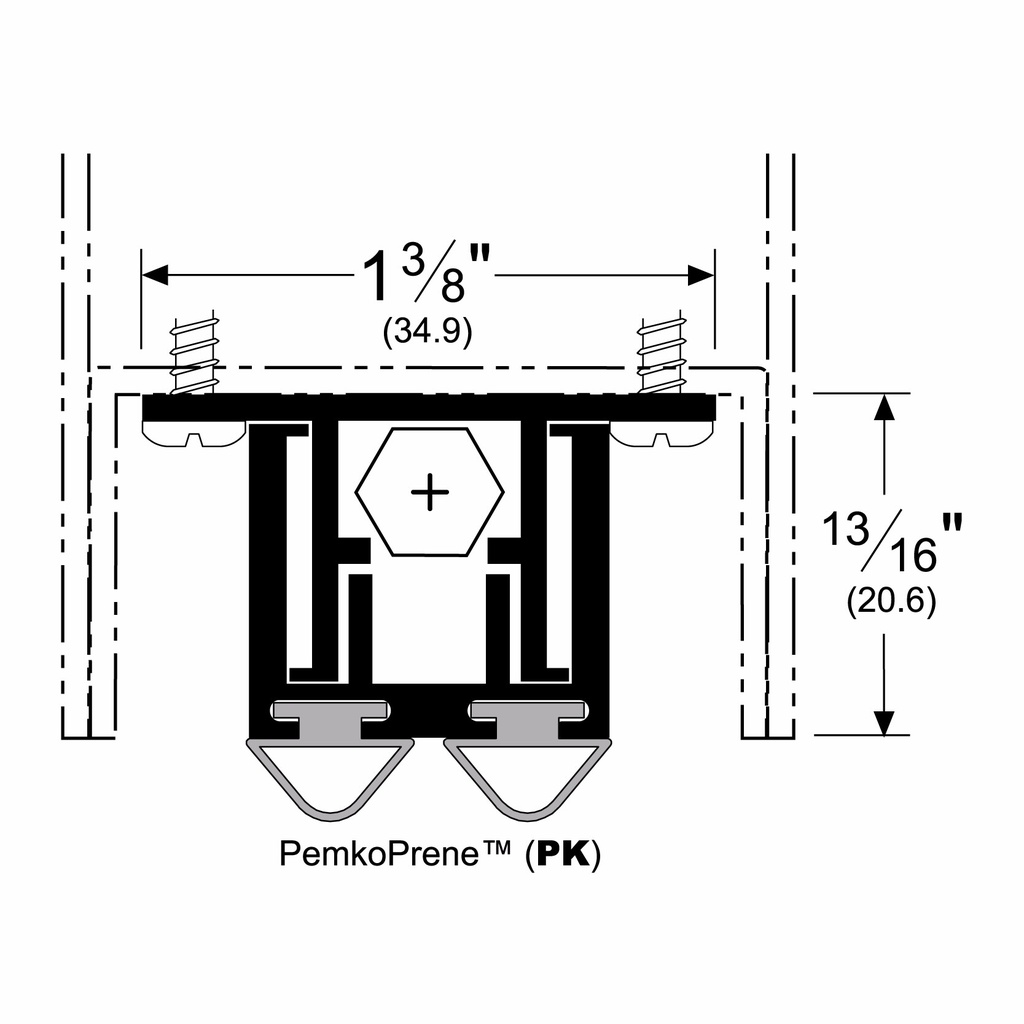

- Overall Height: 13/16"
- Width: 1 3/8"
Features
- Automatic door bottom for hollow metal doors with inverted channel
- Maximum drop seal is 1/2"
- Recommended gap is 3/8"
- Smoother action positive seal mechanism: Aluminum case encloses a movable drop-bar seal actuated by a jamb-contacting plunger during door closure, providing an effective seal
- Fitted with set of fire rated double rubber seals
- Drop-bar seal actuation mechanism (all models) ensures hinge-side actuation, preventing seal skidding and door hang up during closure
- Provided at NET length
- Can be trimmed down by as much as 2" in the field (stock lengths only). If non-stock sizes are ordered, order must note need to trim 2 inches from the size ordered
- Used on hollow metal door and does not come with end plates
- Requires a hole for the plunger to extend through the hinge side of the door edge
- Rubber-like materials that can be processed like conventional thermoplastics
- Possesses the same flexibility and durability common to natural rubber compounds
- Offers excellent design freedom in the field of architectural door seals
- Outstanding resistance to cleaning fluids and disinfectants
- Everyday resilience and low impedance to opening or closing requirements on door assemblies
- Used for general purpose gaskets, weatherstripping for windows and doors, and commercial glazing seals
Benefits
- Provides excellent seal to keep out draft, dust, moisture, insects, fumes, light, and sound
- Mortised application provides a clean aesthetic
Certifications
- GREENGUARD Gold Certified
- UL 1784 - Standard for Air Leakage Tests of Door Assemblies and Other Opening Protectives
- UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
- ASTM E-283-04 (2012)
- ASTM E 90-2009
- ANSI/BHMA A156.22 Door Gasketing and Edge Seal Systems
| Length | 36 Inch or 42 Inch or 48 Inch |
| Brand | Pemko |
| Insert Material | PemkoPrene |
| Fire Rated | Fire Rated |
| Mounting Type | Full Mortise |
| Bottom Weatherseal Type | Automatic Door Bottom |
| Housing Finish | Aluminum |
| Sweeps, Door Bottom or Rain Drip | Door Bottom |
