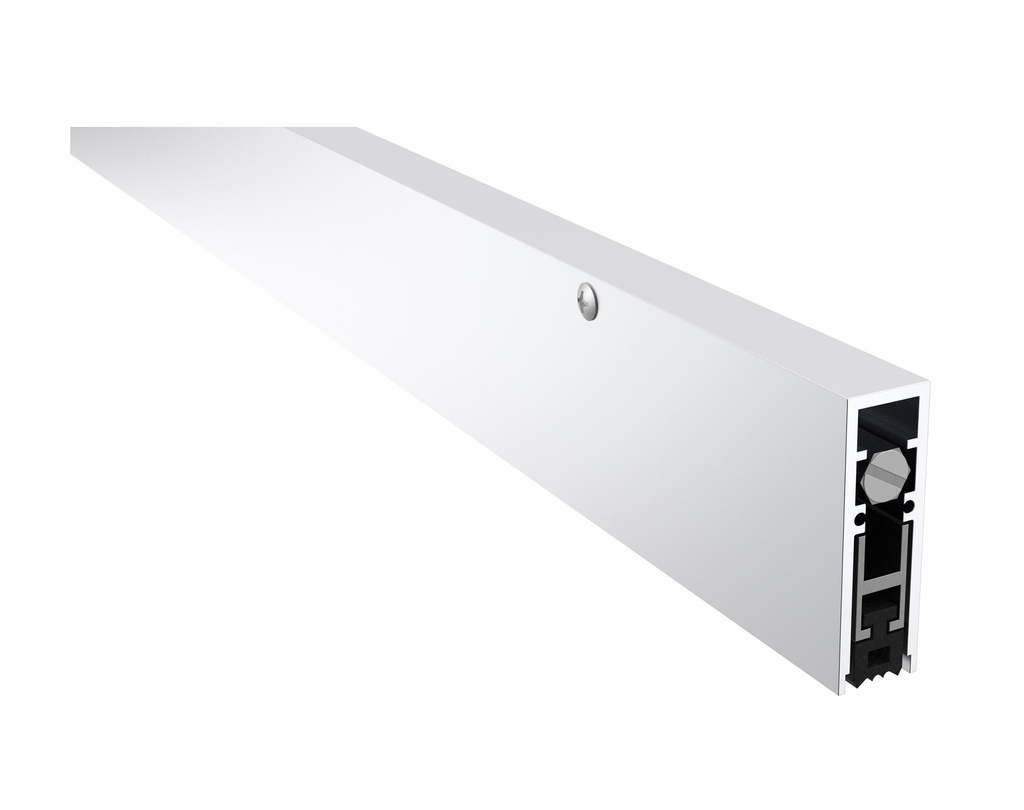

Pemko 4131CRL Fire-Rated Surface Applied or Semi-Mortise Automatic Door Bottom with Sponge Neoprene Insert
Specifications
- Base Material: Aluminum
- Fasteners: THSMS #8 x 1 1/4"
- Maximum Length: 72"
- Minimum Length: 12"

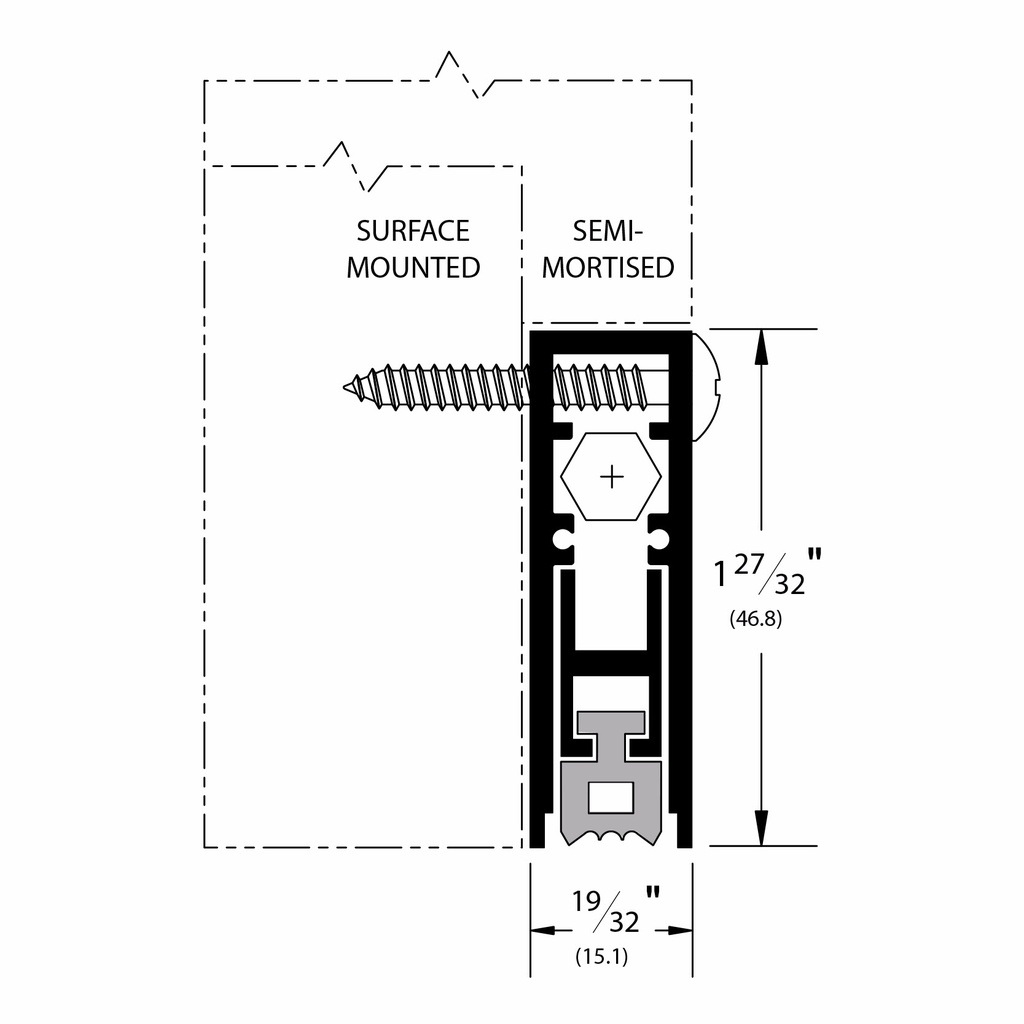

- Overall Height: 1 27/32"
- Width: 19/32"
Features
- Flexible at high and low temperatures
- Resists deterioration from oily substances
- Slightly compressible
- Non-Handed, Surface or Semi-Mortise
- Smoother action positive seal mechanism: Aluminum case encloses a movable drop-bar seal actuated by a jamb-contacting plunger during door closure, providing an effective seal
- Most models available with nylon brush (NB) seals. Nylon filaments conform extremely well to irregular surfaces such as carpet, stone and grout lines
- Some models can be mounted to either wood or hollow metal doors
- End plates are provided for all mounting applications
- Fills gaps up to 3/4"; Available in any size ranging from 18" to 48"
- Lead line available upon request; consult Customer Service for options on profiles
- Drop-bar seal actuation mechanism (all models) ensures hinge-side actuation, preventing seal skidding and door hang up during closure
- Provided at NET length
- Can be trimmed down by as much as 2" in the field (stock lengths only). If non-stock sizes are ordered, order must note need to trim 2 inches from the size ordered
Benefits
- Provides excellent seal to keep out draft, dust, moisture, insects, fumes, light, and sound
- Clean symmetrical square-shaped case design for even flush mounting
Certifications
- GREENGUARD Gold Certified
- UL 1784 - Standard for Air Leakage Tests of Door Assemblies and Other Opening Protectives
- UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
- ASTM E-283-04 (2012)
- ASTM E 90-2009
- ANSI/BHMA A156.22 Door Gasketing and Edge Seal Systems
| Length | 36 Inch or 42 Inch or 48 Inch |
| Brand | Pemko |
| Insert Material | Neoprene |
| Fire Rated | Fire Rated |
| Mounting Type | Surface Mounted |
| Bottom Weatherseal Type | Automatic Door Bottom |
| Housing Finish | Aluminum |
| Sweeps, Door Bottom or Rain Drip | Door Bottom |
