Pemko 357SP Flat Bar Steel Astragal - 2" x 1/8" Grey Primer
The Pemko 357SP is an industrial-grade Flat Bar Steel Astragal engineered for high-security and fire-rated applications. Manufactured from 11-gauge (1/8" thick) Galvannealed Steel, this 2-inch wide security plate is designed to be surface-mounted to the active leaf of a pair of doors. It serves a dual purpose: providing a physical barrier against tampering and "loiding" of the latchbolt, while simultaneously acting as a critical fire and smoke seal for double-door assemblies.
High-Security & Safety Features
- 11-Gauge Galvannealed Steel: Constructed from heavy-duty, zinc-iron alloy-coated steel that offers superior corrosion resistance and a perfect surface for field painting.
- Fire & Smoke Certified: When installed correctly on the active leaf, the 357SP helps maintain the integrity of fire-rated openings. Smoke ratings specifically apply to this SP (Grey Primer) finish.
- Tamper-Resistant Barrier: Effectively covers the gap between doors, preventing unauthorized access to the latchbolt [link] or lockset mechanics.
- NFPA 80 Compliant: Designed to meet the rigorous requirements for the installation of hardware on pairs of fire doors, ensuring code compliance during life-safety inspections.
- Durable Grey Primer: Supplied in a professional grey primer finish, ready for immediate installation or a custom topcoat to match your building’s aesthetic.
Technical Specifications
- Manufacturer: Pemko (ASSA ABLOY)
- Model Number: 357SP

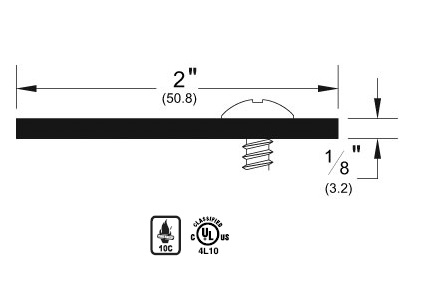

- Dimensions: 2" Wide x 1/8" Thick (11 Gauge)
- Material: Galvannealed Steel
- Finish: Grey Primer (SP)
- Application: Surface-mounted to the meeting stile of the active door leaf.
| Length | 84 Inch or 96 Inch |
| Brand | Pemko |
| Mounting Type | Surface Mounted, Screw Applied - Exp Screw |
| Weatherstripping Type | Astragal |
