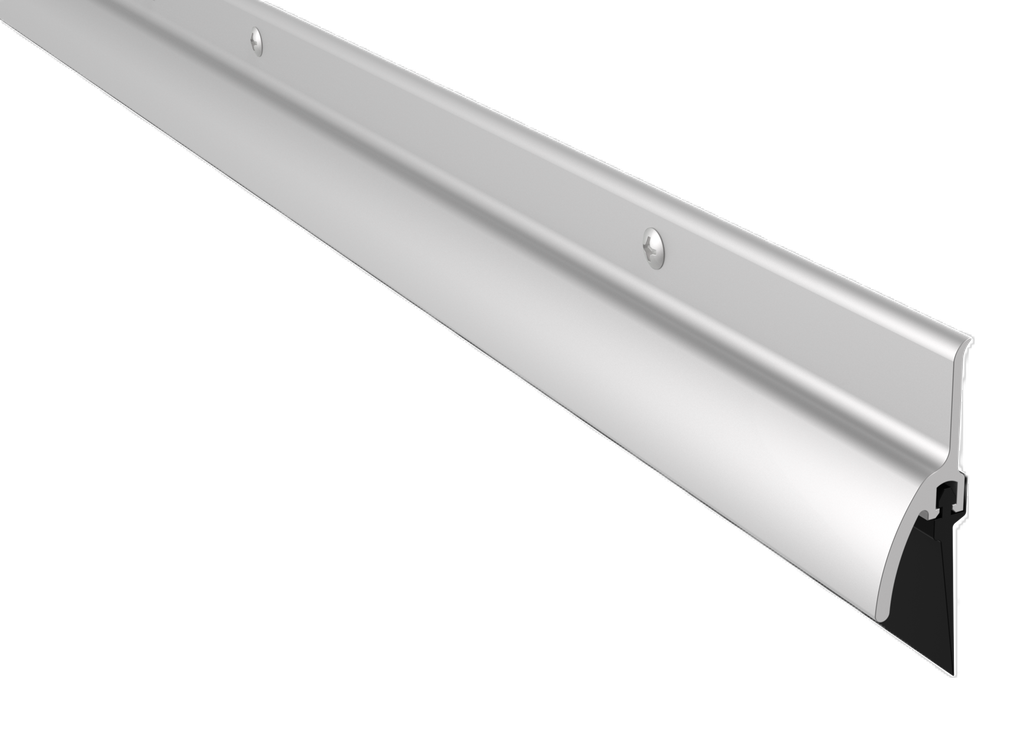

Pemko 345AV Sill Sweep with Rain Drip - Mill Aluminum
The Pemko 345AV is a professional-grade Commercial Sill Sweep designed to provide a comprehensive weather barrier while protecting the base of your door. Featuring a durable mill-finish aluminum retainer with an integrated Rain Drip flange, this sweep is specifically engineered to deflect water away from the threshold. The 345AV utilizes a premium Eco-V Gray Vinyl Insert that features a unique "extra flap" design, ensuring the gasket remains securely locked in place even under heavy use.
High-Performance & Weatherproofing Features
- Integrated Rain Drip Deflector: The exterior-facing flange is perfectly angled to redirect rain away from the bottom of the door, preventing moisture from wicking into the door core or leaking across the threshold.
- Secure Eco-V Seal: The EV54 gray vinyl insert includes a secondary anchor flap under the housing for superior stability. This material operates effectively in temperatures ranging from -4° F to +122° F.
- Life Safety Certified: Rigorously tested to meet UL 1784 smoke leakage standards and UL 10C for positive pressure, making it a critical safety component for fire-rated commercial openings.
- Precision Adjustability: The aluminum housing is punched with elongated slotted holes, allowing for easy vertical adjustment during installation to ensure a perfect alignment with the threshold bevel.
- Health & Sustainability: GREENGUARD Gold Certified for low chemical emissions (V.O.C.), contributing to a healthier indoor environment and supporting LEED-certified projects.
Technical Specifications
- Manufacturer: Pemko (ASSA ABLOY)
- Model Number: 345AV
- Retainer Dimensions: 9/16" Width x 2" Total Height (with insert)
- Finish: Mill Aluminum (A)
- Insert Material: Eco-V Gray Vinyl (V)
- Standard Lengths: 36" and 48" (Furnished net length; field trimming required)
- Certifications: BHMA Certified (ANSI/BHMA A156.22), UL Listed, ANSI: R3D534.
Pro-Tip for Facility Managers
The Pemko 345AV is best installed on the exterior face of outswing doors. For the tightest possible seal, adjust the sweep so that the vinyl fingers just make contact with the bevel of your threshold. If your facility is located in an area with extreme sub-zero winters, we recommend requesting the PemkoPrene (PK) insert, which extends the flexibility range down to -22° F. To maintain your energy efficiency, inspect the vinyl annually for wear and replace it with a fresh EV54 insert if it begins to stiffen or crack.
| Length | 36 Inch or 48 Inch |
| Brand | Pemko |
| Insert Material | Vinyl |
| Material Length | 1/2" |
| Bottom Weatherseal Type | Sill Sweep w/ Rain Drip |
| Fire Rated | Fire Rated |
| Smoke Rated | Smoke Rated |
| Housing Finish | Aluminum |
| Housing Length | 1-1/2" |
