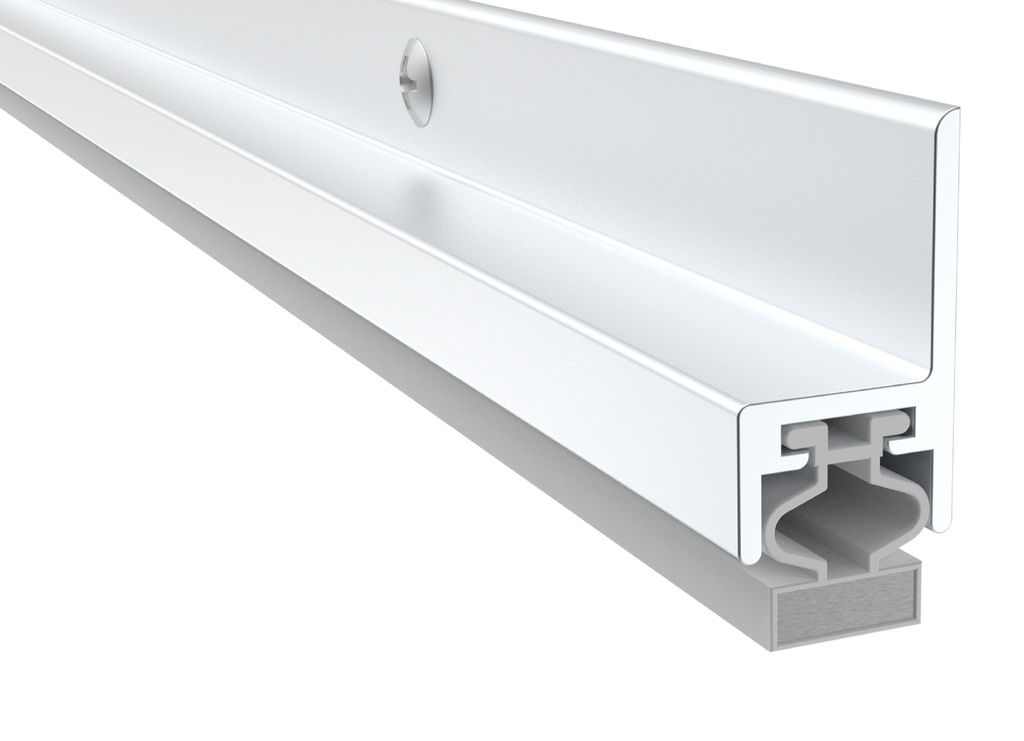

Pemko 2815CM Magnetic Weatherstrip - Aluminum Finish
The Pemko 2815CM is an architectural-grade magnetic weatherstrip designed specifically for use with steel and metal doors. Featuring a powerful magnetic insert encased in a UV-stable TPE cover, this seal provides a "fridge-door" style closure that snaps against the door face for an airtight barrier. Its low-profile Aluminum Finish housing makes it an ideal solution for the head of the frame, especially in openings utilizing parallel arm door closers or other surface-mounted hardware.
High-Performance & Energy Efficiency Features
- Magnetic Snap-Seal Technology: The encased magnet provides a constant, high-tension seal against metal doors, effectively compensating for slightly warped doors or uneven frames.
- UV-Stable TPE Cover: The magnetic insert is protected by a high-quality Thermo-Plastic Elastomer (TPE) jacket that remains flexible and resists degradation from sunlight and extreme temperatures.
- Air Infiltration Tested: Rigorously tested to ASTM E-283 standards, this seal significantly reduces drafts and unconditioned air loss, leading to improved building energy efficiency.
- Acoustic & Smoke Benefits: By creating a continuous perimeter seal, the 2815CM helps reduce sound transmission between rooms and provides an additional layer of smoke and fire resistance.
- Hardware Friendly: The 1" x 7/16" profile is specifically designed to fit at the frame head without interfering with the mounting brackets of heavy-duty door hardware.
Technical Specifications
- Manufacturer: Pemko (ASSA ABLOY)
- Model: 2815CM (Clear Anodized Aluminum)
- Gasketing Material: Magnetic insert with TPE jacket
- Dimensions: 1" Width | 7/16" (219/500") Height
- Mounting Type: Screw-applied to the frame; supplied with #6 x 5/8" PHSMS.
- Sizing Options: Available in lengths up to 185" (36" units supplied undrilled for custom field fitting).
Pro-Tip for Metal Door Sealing
The Pemko 2815CM is the ultimate solution for metal doors that have "sprung" or where traditional compression seals fail to make contact. Because the magnet pulls the seal to the door, it provides a more forgiving and reliable barrier than standard rubber gaskets. For a complete perimeter seal, we recommend pairing this head-section magnetic strip with matching jamb seals to fully encapsulate the opening.
| Gasketing Set Size | 3'0 x 7'0 Set or 4'0 x 7'0 Set or 6'0 x 7'0 Set |
| Brand | Pemko |
| Insert Material | Magnetic |
| Housing Finish | Aluminum |
| Weatherstripping Type | Perimeter Gasketing |
| Fire Rated | Fire Rated |
| Smoke Rated | Smoke Rated |
| Mounting Type | Screw Applied - Exp Screw, Surface Mounted |
