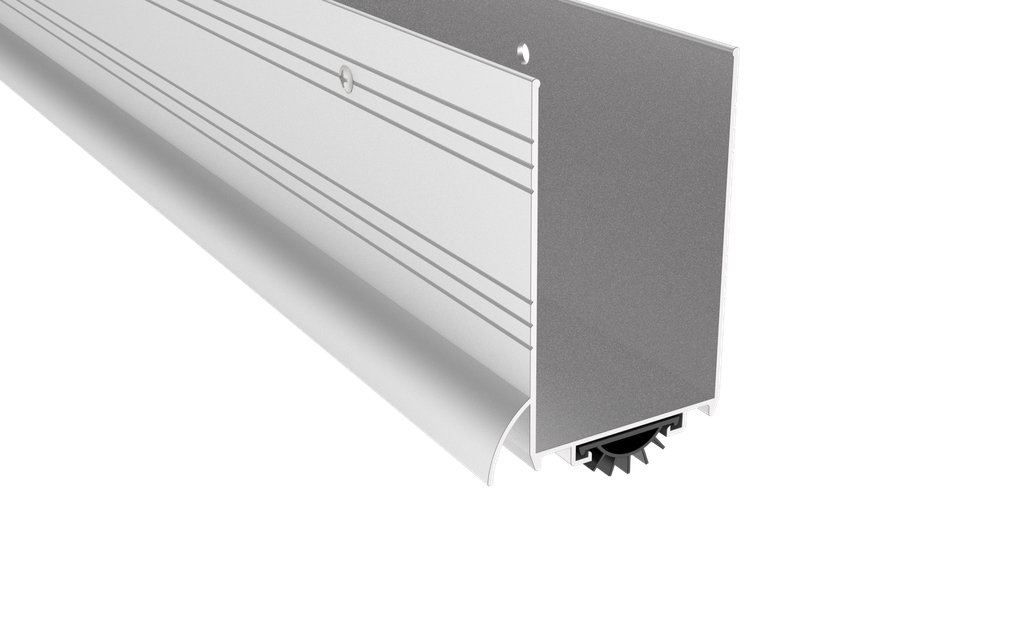

Pemko 2211AV Extended Door Bottom Shoe, Rain Drip & Kick Plate
The Pemko 2211AV is a heavy-duty, multi-functional U-Shaped Door Shoe designed for standard 1-3/4" thick doors. This high-performance hardware combines a 3-inch high kick plate, an integrated rain drip deflector, and a flexible fingered seal into a single unit. It is specifically engineered to protect against heavy traffic abuse while sealing gaps up to 1/2 inch. The 2211AV is the premier solution for restoring rusted or damaged door bottoms, providing a structural "cap" that extends the life of the door and ensures a weather-tight entry.
High-Performance & Weatherproofing Features
- Triple-Action Protection: Combines a 3" kick plate for physical impact protection, a rain drip to shed water away from the threshold, and a vinyl insert for air sealing.
- Door Restoration Hero: Effectively reinforces and hides damage on badly rusted or dented hollow metal doors, saving the cost of a full door replacement.
- Eco-V Fingered Insert: Features the EV9 gray vinyl insert with multiple flexible fingers that conform to irregular floor surfaces to block drafts, light, and smoke.
- Life Safety Certified: Rigorously tested to UL 10C Positive Pressure fire standards and UL 1784 for smoke leakage control.
- Precision Adjustment: Retainers are punched with elongated slotted holes, allowing for easy vertical adjustment to maintain perfect contact with the threshold.
Technical Specifications
- Manufacturer: Pemko (ASSA ABLOY)
- Model Number: 2211AV
- Casing Height: 3" (76.2 mm)
- Door Thickness: Optimized for 1-3/4" (44.5 mm)
- Finish: Mill Aluminum (A)
- Insert Material: Eco-V Gray Vinyl (V)
- Required Clearance: Maintain a 1/2" clearance from the floor or threshold for proper operation.
- Certifications: BHMA Certified (ANSI/BHMA A156.22), GREENGUARD Gold, ANSI: R3D514.
| Length | 36 Inch or 48 Inch |
| Brand | Pemko |
| Insert Material | Vinyl |
| Material Length | 1/2" |
| Bottom Weatherseal Type | Door Bottom w/ Rain Drip |
| Housing Length | 3" |
| Housing Finish | Aluminum |
| Fire Rated | Fire Rated |
| Smoke Rated | Smoke Rated |
| Sweeps, Door Bottom or Rain Drip | Door Bottom |
