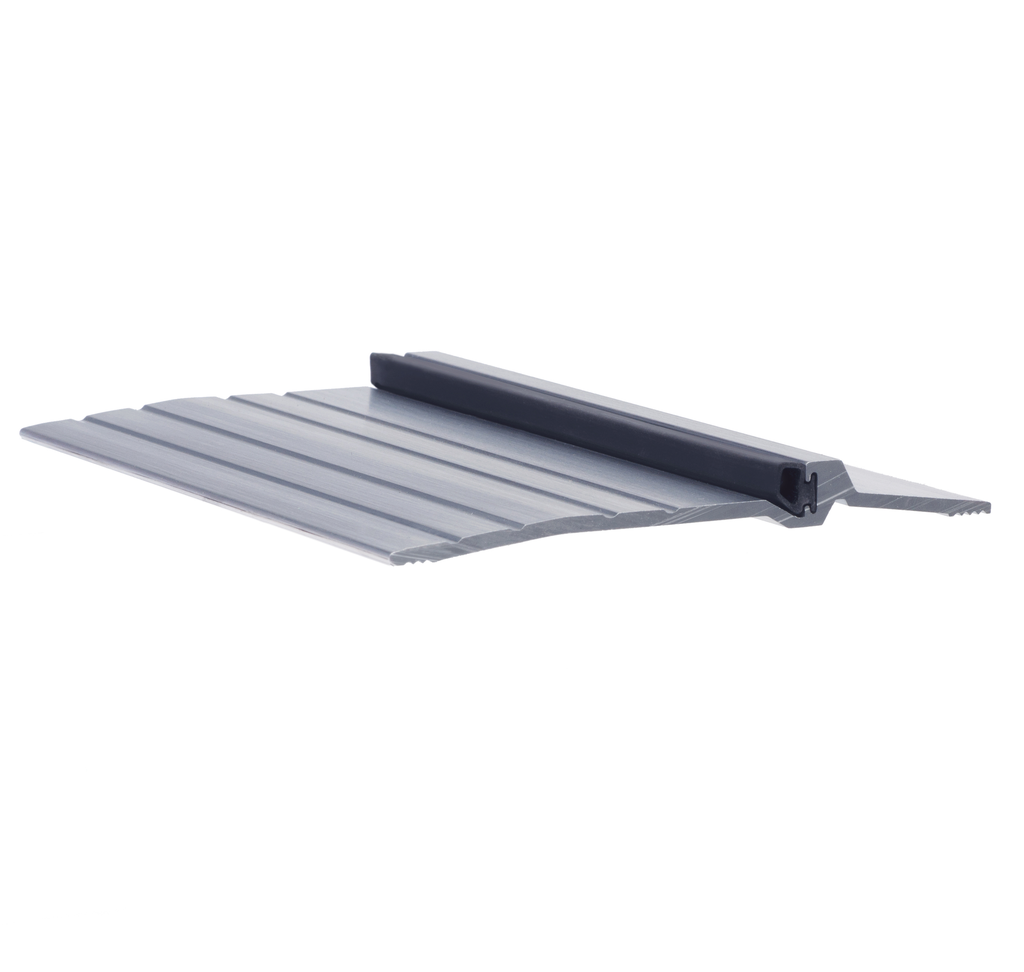

Pemko 2005AT 5" Wide Latching Panic Threshold - Mill Aluminum
The Pemko 2005AT is a high-performance Latching Panic Exit Threshold engineered to provide a secure latching point and a high-efficiency seal for commercial openings. Measuring 5 inches wide and 1/2 inch tall, this threshold features an integrated stop that serves as the strike point for surface-applied vertical rods. Equipped with a premium ThermoSeal (T) insert, the 2005AT creates a weather-tight and sound-attenuated barrier, making it an essential component for schools, theaters, and municipal buildings.
High-Performance Features
- Vertical Rod Integration: Specifically designed to function as a doorstop and latching strike for surface vertical rod exit devices [link], ensuring secure closure at the floor.
- ThermoSeal Technology: Includes a high-density ThermoSeal insert that remains flexible in extreme temperatures, blocking air infiltration, sound (ASTM E90 Tested), and smoke.
- ADA & Barrier-Free Entry: Fully compliant with ADAAG-1998, ICC/ANSI A117.1, and California Building Code Title 24. The 1/2" profile provides an accessible transition for mobility devices.
- Fire-Rated Safety: Rigorously tested under UL10C Positive Pressure and Category J certified, supporting up to 3-hour ratings on steel doors and 90-minute ratings on wood doors.
- Environmental Health: GREENGUARD Gold Certified for low chemical emissions, supporting healthy indoor air quality and LEED project points.
Technical Specifications
- Manufacturer: Pemko (ASSA ABLOY)
- Model Number: 2005AT
- Width: 5" (127.0 mm)
- Height: 1/2" (12.7 mm)
- Finish: Mill Aluminum (A)
- Required Door Clearance: 3/8" (9.5 mm)
- Replacement Insert: #T5 ThermoSeal
- ANSI Number: J16123
| Length | 36 Inch or 48 Inch or 72 Inch |
| Brand | Pemko |
| Threshold Grade | Commerical- Standard |
| Threshold Type | Lipped |
| Threshold Width | 5" |
| Threshold Height | 1/2" |
| Door Undercut | 3/8" |
