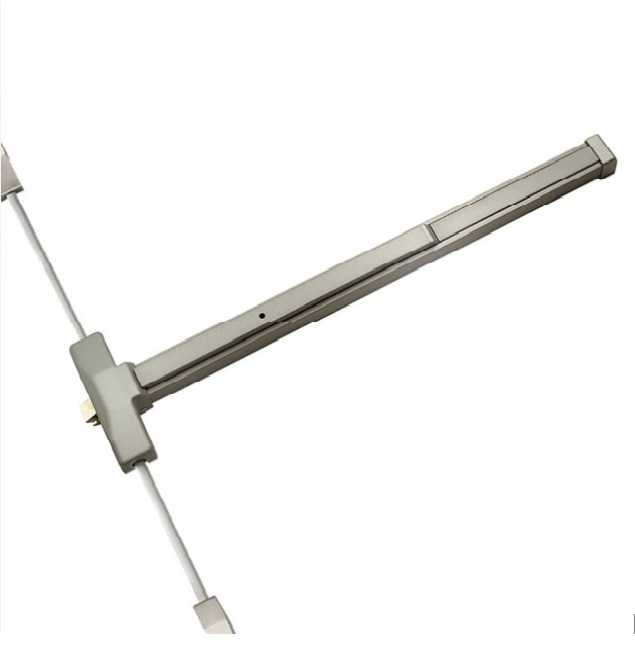

PDQ 4200V Vertical Rod Exit Device
CHASSIS: Cadmium plated steel
RAIL: Heavy gauge steel or stainless steel
TOUCH PAD: Heavy gauge steel or stainless steel
LATCH BOLT: Stainless steel dead locking / 3/4" throw rim / 5/8" throw SVR
PROJECTION: 2-5/8" projection
HAND: Device is non-handed
DOGGING: Hex key dogging standard / No dogging on Fire labeled devices
APPLICATION: Rim or surface vertical rod (7'0" tall door standard)
STILE WIDTH: 4-1/4" minimum
DOOR THICKNESS: 1-3/4"
DOOR WIDTH: Supplied Standard for 3 ft doors "A" size for 3'2"- 4'0" door maximum *Consult Door Width Chart to determine correct device for your application 4200 Standard Exit Device Cut Down Charts
DEVICE FINISHES: Aluminum (689), Duronodic (695), Gold (696), Satin Chrome (US26D), Polished Brass (605) and Satin Stainless Steel (US32D)
FASTENERS: Fasteners furnished for wood and metal door applications / Sex nuts and bolts standard with fire labeled devices
CERTIFICATION: U.L./U.L.C. listed for Panic, Fire Exit Hardware labeled for up to 1-1/2 hour for 3'0" x 7'0" maximum single, 6'0" x 7'0" maximum pairs / Complies with U.L. 10C and UBC 7.2 (1997)
WARRANTY: Five (5) year limited warranty
Please note: Use standard unit for 3 ft doors. "A" unit cannot be cut below 3'2" and therefore cannot be used on a 3 ft. door.
| General - US Finishes | US26D - Satin Chrome or US32D - Satin Stainless Steel/ 630 or 689 - Spray Alumimun or 695 - Spray Stat Bronze or 696 - Spray Gold or US3 - Polished Brass |
| Brand | PDQ |
| Exit Device Type | SVR Exit Device |
| Series | PDQ - 4200 Series |
| Fire Rated | Non-Rated |
| Door Opening Width | 36 Inches |
| Door Height | 7'0" Dr Ht |
