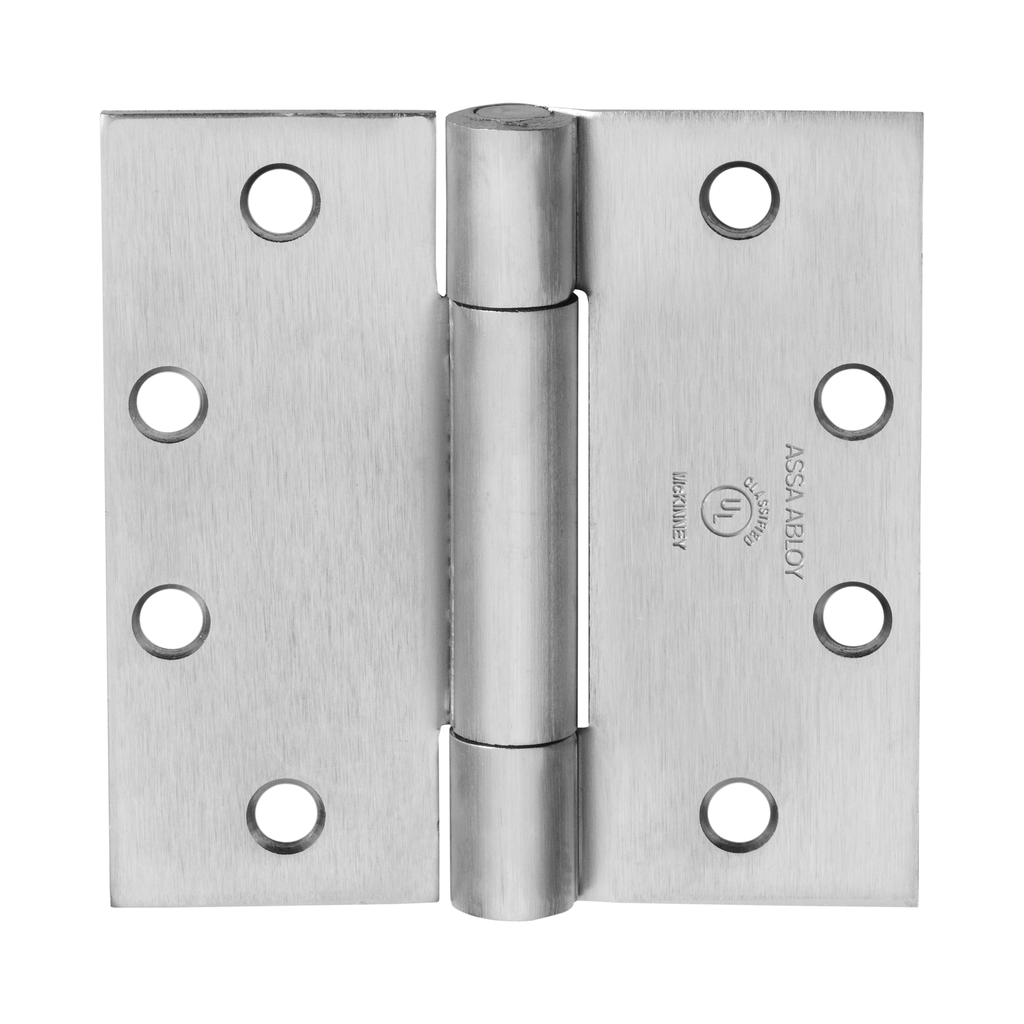

McKinney TA786 NRP Concealed Bearing Hinge | 4-1/2" x 4-1/2" Heavy Weight 3-Knuckle
The McKinney TA786 NRP is a high-security, heavy-duty architectural hinge designed for out-swinging doors in high-traffic commercial environments. This model combines a sleek 3-knuckle design with Non-Removable Pin (NRP) technology, making it the definitive solution for door security. It provides a clean, modern aesthetic for schools, hospitals, and government facilities while ensuring the door remains impenetrable from the exterior, even if the hinge barrels are exposed.
Equipped with concealed vertical and lateral thrust twin anti-friction bearings, the TA786 NRP delivers smooth, silent operation under extreme weight. The NRP feature utilizes a hidden set screw driven into the hinge barrel, which is inaccessible when the door is closed, preventing intruders from removing the pin to gain entry. This hinge is a vital component for any solution for door restoration, offering a professional-grade upgrade for high-security perimeters.
Key Features & Performance
- NRP High-Security Protection: The Non-Removable Pin is an essential solution for commercial door security, specifically designed for outward-swinging doors where hinge pins are accessible from the outside.
- Concealed Anti-Friction Bearings: Features twin bearings hidden within the knuckles to manage heavy loads, acting as a permanent solution for door edge reinforcement.
- Heavy-Weight .180 Gauge Steel: Precision-engineered to withstand the rigors of high-traffic institutional use without sagging or failure.
- Aesthetic 3-Knuckle Profile: Provides a contemporary, architectural look with a flush pin design, serving as an ideal solution for door surface repair during hardware modernizations.
- Durable Plated Finishes: Available in professional finishes that act as a protective remodeling scar plate, resisting corrosion and the physical demands of public spaces.
Technical Details & Specifications
- Brand: McKinney (ASSA ABLOY)
- Model Number: TA786 NRP
- Dimensions: 4-1/2" x 4-1/2" (Full Mortise)
- Security Feature: NRP (Non-Removable Pin) Set Screw
- Bearing Type: Concealed Vertical & Lateral Thrust (TA Prefix)
- Thickness: Heavy Weight .180 Gauge
- ANSI Number: A8111
- Fasteners Included: Furnished with All Wood Screws (1-1/4" x 12 FPHW) and All Machine Screws (1/2" x 12-24 FPHM).
Why Choose the McKinney TA786 NRP?
The McKinney TA786 NRP is the professional’s choice for projects that demand the highest level of security without compromising on architectural elegance. While standard hinges are vulnerable to pin removal, the NRP feature ensures total peace of mind for exterior-facing exits. It offers a permanent and cost-effective solution for door security, delivering industrial-grade reliability and the polished, high-end appearance required for modern, secure facilities.
| General - US Finishes | US26D - Satin Chrome or US15 - Satin Nickel |
| Brand | McKinney |
| Hinge Height | 4.5" Hi |
| Hinge Width | 4.5" Wi |
| Hinge Grade/Thickness | Heavy Wt .180 to .190 |
| Hinge Type | Full Mortise |
| Hinge Options | NRP (Non Removable Pin), Concealed Bearing |
| Base Material | Steel |
| Hinge Corners | Square |
