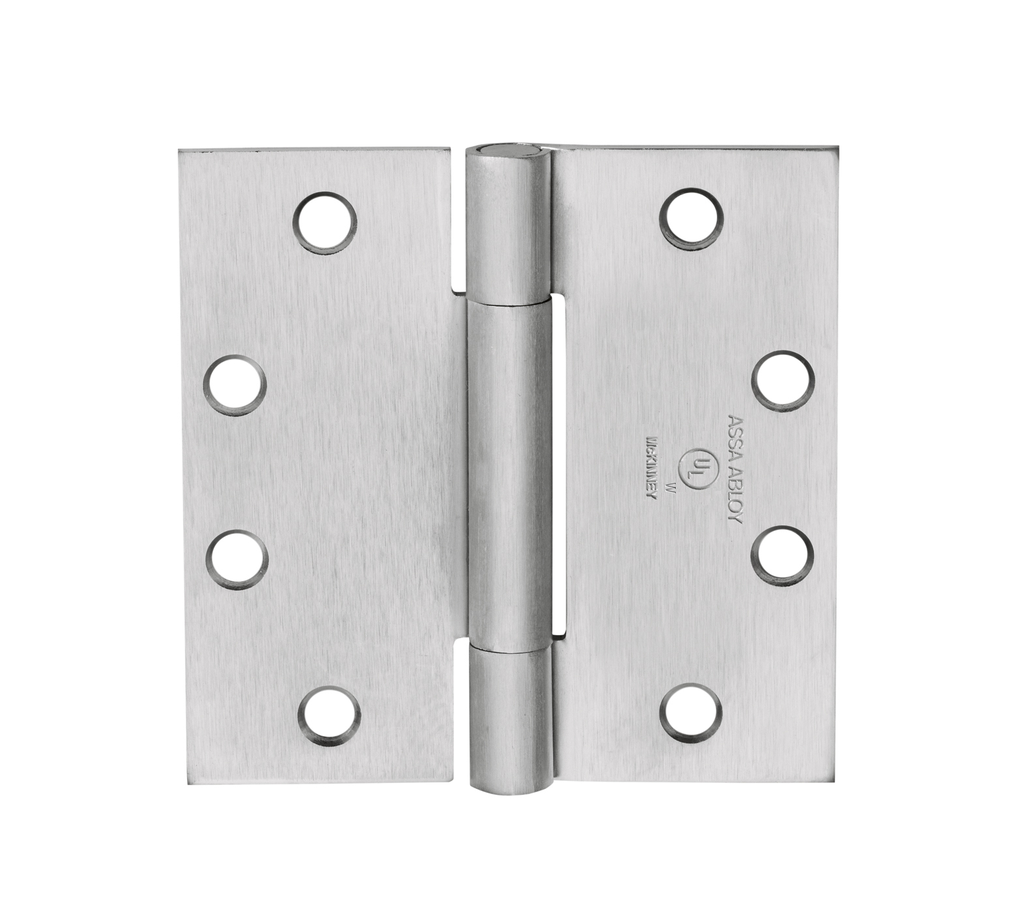

McKinney TA714 Concealed Bearing Hinge | 4-1/2" x 4-1/2" 3-Knuckle Steel Hinge
The McKinney TA714 is a high-performance, full-mortise architectural hinge designed for modern commercial construction. Featuring a sleek 3-knuckle design and advanced concealed bearings, this hinge provides a clean, streamlined aesthetic without sacrificing the weight-bearing capabilities required for average-traffic openings. It serves as an ideal solution for door restoration, offering a sophisticated look for offices, hospitality suites, and high-end retail environments.
Engineered with vertical and lateral thrust twin anti-friction bearings at both joints, the TA714 ensures a lifetime of smooth, silent operation. These bearings are completely concealed within the knuckles, protecting them from environmental contaminants and providing a tamper-resistant solution for commercial door security. This hinge is a vital component for any solution for door surface repair, as its standard template screw hole pattern allows for seamless replacement of worn-out hardware on existing metal or wood doors.
Key Features & Performance
- Concealed Anti-Friction Bearings: Features twin bearings at both joints to handle vertical and lateral loads, acting as a permanent solution for door edge reinforcement.
- Modern 3-Knuckle Design: Provides a contemporary, architectural appearance with a flush pin and non-rising steel pin construction.
- Commercial Grade Durability: Built with .134 gauge thickness steel, this hinge is rated for average traffic in commercial facilities.
- Versatile Plated Finishes: Available in a variety of high-quality plated finishes that serve as a protective remodeling scar plate, resisting corrosion and daily wear.
- Fire Rated Compatibility: Designed to meet rigorous standards for use on fire-rated door assemblies, ensuring safety and code compliance.
Technical Details & Specifications
- Brand: McKinney (ASSA ABLOY)
- Model Number: TA714
- Dimensions: 4-1/2" x 4-1/2" (Full Mortise)
- Bearing Type: Concealed Vertical & Lateral Thrust (TA Prefix)
- Knuckle Count: 3 Knuckle
- Thickness: .134 Standard Weight
- ANSI Number: A8112
- Fasteners Included: Furnished with All Wood Screws (1-1/4" x 12 FPHW) and All Machine Screws (1/2" x 12-24 FPHM).
Why Choose the McKinney TA714?
The McKinney TA714 is the professional’s choice for projects where aesthetics are as important as function. While traditional 5-knuckle hinges show visible bearing lines, the concealed bearing technology of the TA714 provides a smooth, unbroken profile. It offers a permanent and cost-effective solution for door security, delivering industrial-grade reliability and the polished, high-end appearance required for modern architectural spaces.
| General - US Finishes | US26D - Satin Chrome or US26 - Polished Chrome or US15 - Satin Nickel or US3 - Polished Brass or US4 - Satin Brass or US10 - Satin Bronze or US10A - Oil Rubbed Bronze or US10B - Oil Rubbed Bronze or USP - Prime Painted or D4 - Black Powdercoat |
| Brand | McKinney |
| Hinge Height | 4.5" Hi |
| Hinge Width | 4.5" Wi |
| Hinge Grade/Thickness | Standard Wt .119 to .146 |
| Hinge Type | Full Mortise |
| Hinge Options | Concealed Bearing |
| Base Material | Steel |
