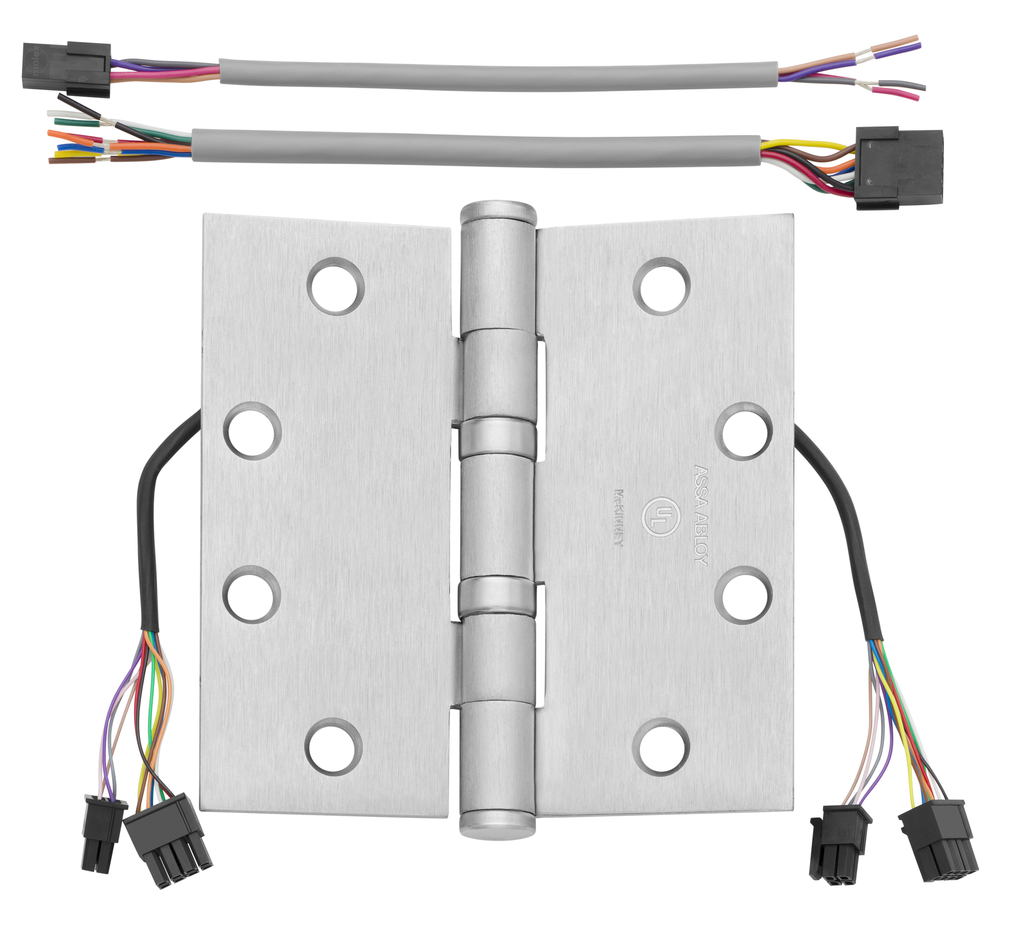

McKinney TA2714 QC12 ElectroLynx Electric Hinge | 4-1/2" x 4-1/2" Electrified Power Transfer
The McKinney TA2714 QC12 ElectroLynx Electric Hinge is the ultimate "plug-and-play" power transfer solution for modern commercial door openings. Featuring the patented ElectroLynx® Quick Connect system, this 12-wire, 6-circuit hinge is specifically engineered to transfer power from the frame to ASSA ABLOY brand exit devices. It serves as a definitive solution for door restoration in facilities upgrading to electronic access control, providing a clean, concealed wiring path that eliminates the risk of pinched, frayed, or exposed wires.
Constructed with a standard commercial .134 gauge thickness, the TA2714 is a vital solution for door security in corporate offices, healthcare facilities, and schools. The Oil Impregnated Bearings (TA Prefix) utilize a one-piece, non-ferrous, and self-lubricating design that ensures smooth operation while resisting clogging and corrosion. This hinge is an essential component for any solution for door surface repair or hardware retrofit, maintaining the door's fire rating and architectural integrity while enabling high-security electrified hardware.
Key Features & Performance

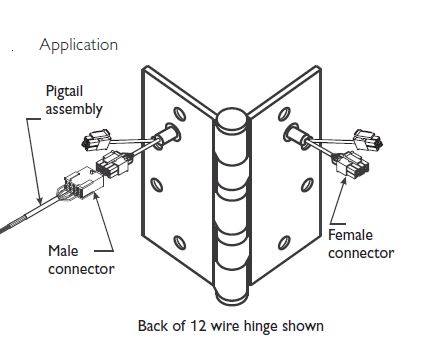

- ElectroLynx® Quick Connect: Utilizes installer-friendly 8-position and 4-position connectors for a "no-guesswork" solution for door restoration and rapid wiring.
- 12-Wire (6-Circuit) Capacity: Features 28-gauge multi-strand wires rated for 4 amp continuous @ 24 volts AC/DC, providing maximum power for electrified exit devices and request-to-exit (REX) sensors.
- 3-Hour Fire Rating: This UL Listed hinge is certified for use on fire-rated door assemblies for up to 3 hours, ensuring full compliance with life-safety codes.
- Vandal-Resistant Concealed Wiring: All electrical components are hidden within the hinge leaves and protected by brass eyelets, acting as a reliable solution for commercial door security.
- Self-Lubricating Bearings: The TA-series bearings act as a permanent solution for door edge reinforcement, preventing hinge failure in average to high-traffic commercial environments.
Technical Details & Specifications
- Brand: McKinney (ASSA ABLOY)
- Model Number: TA2714 QC12
- Dimensions: 4-1/2" x 4-1/2" (Full Mortise)
- Wire Count: 12 Wires / 6 Circuits
- Bearing Type: Oil Impregnated (TA) - 5 Knuckle
- Thickness: .134 Standard Weight
- ANSI Number: A8112
- Fasteners: Includes All Wood Screws (1-1/4" x 12 FPHW) and All Machine Screws (1/2" x 12-24 FPHM).
Why Choose the McKinney TA2714 QC12?
The McKinney TA2714 QC12 is the professional’s choice for reliable, high-capacity power transfer to ASSA ABLOY exit devices. By concealing the electrical connection within the hinge and using heavy-duty bearings, it provides a much more durable solution for door security than traditional loops or surface-mounted power transfers. It delivers the industrial-grade performance, ease of installation, and polished architectural look required for modern high-security facilities.
| General - US Finishes | US26D - Satin Chrome or US26 - Polished Chrome or BSP - Black Suede Power Coat or US3 - Polished Brass or US4 - Satin Brass or US10 - Satin Bronze or US10B - Oil Rubbed Bronze |
| Brand | McKinney |
| Hinge Height | 4.5" Hi |
| Hinge Width | 4.5" Wi |
| Hinge Grade/Thickness | Standard Wt .119 to .146 |
| Hinge Type | Electric Hinge, Full Mortise |
| Hinge Options | Ball Bearing |
| Electric Hinge Options | QC12 - Electrolynx, Power Transfer, 12 Wire |
| Base Material | Steel |
| Hinge Corners | Square |
