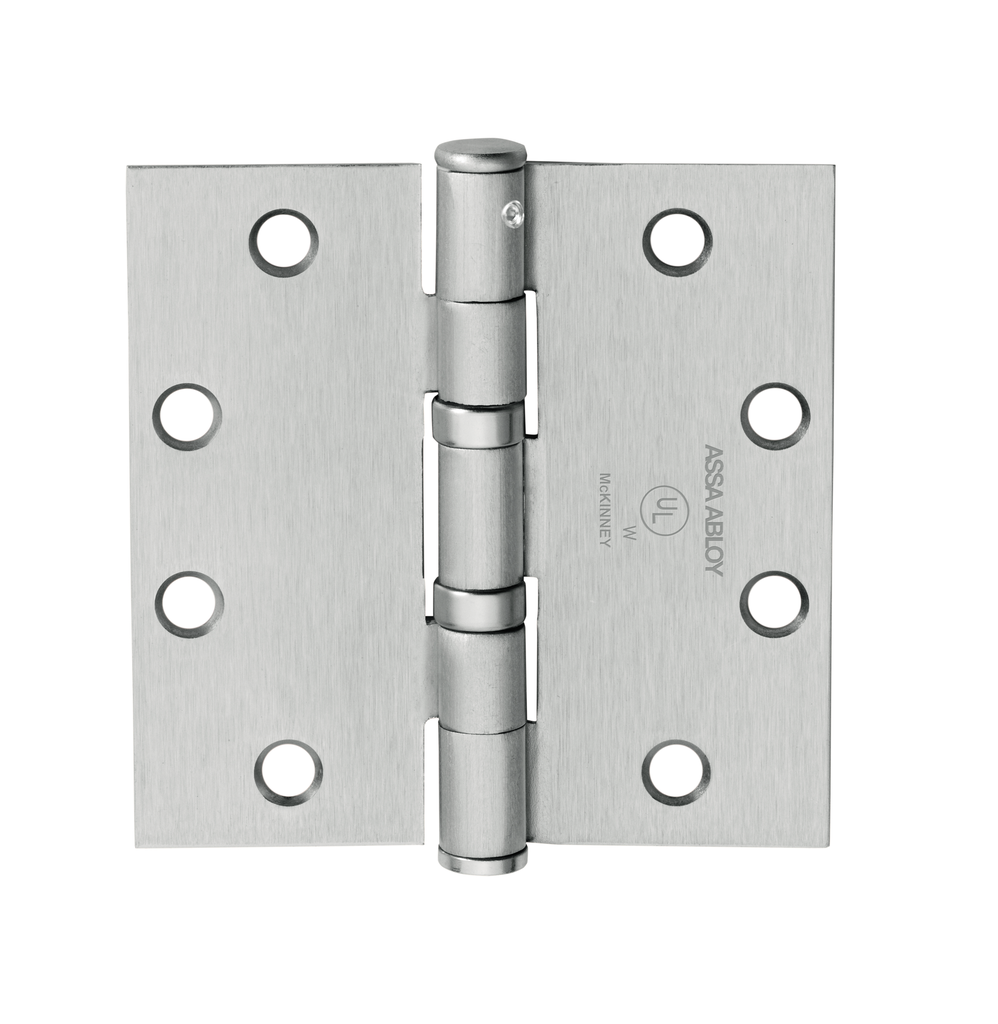

McKinney TA2714 NRP Standard Weight Hinge | 4-1/2" x 4-1/2" Steel
The McKinney TA2714 NRP is a high-performance bearing steel hinge designed for average traffic in commercial construction. Engineered with a .134 standard weight thickness, this 5-knuckle, full mortise hinge is a premier solution for door restoration, offering superior security and smooth operation for wood or metal doors.
High-Security NRP (Non-Removable Pin)
The NRP (Non-Removable Pin) feature is a critical innovation for modern facility security. It utilizes a hidden set screw within the hinge barrel that is completely inaccessible when the door is closed. This provides:
- Enhanced Security: Prevents unauthorized removal of the door by ensuring the hinge pin cannot be tapped out from the exterior.
- Optimal for Outward Swinging Doors: A vital solution for commercial door security on doors where hinge barrels are exposed to the public side.
- Tamper Protection: Designed to withstand forced entry attempts through hinge manipulation, providing long-term peace of mind.
Advanced Oil Impregnated Bearings (TA Prefix)
The TA Prefix signifies McKinney’s specialized self-lubricating bearing system. These one-piece, non-ferrous bearings ensure:
- Superior Durability: Drastically reduces friction for a smoother, longer-lasting door swing and resistance to hinge failure.
- Environmental Resilience: Specifically engineered to resist clogging and corrosion, even in demanding high-frequency environments.
- Maintenance-Free Operation: Acts as a permanent solution for door edge reinforcement without the need for manual lubrication.
Technical Details & Specifications
- Brand: McKinney (ASSA ABLOY)
- Model: TA2714 NRP
- Dimensions: 4-1/2" x 4-1/2" (Standard Weight .134 Gauge)
- ANSI/BHMA A156.1 Compliant: Corresponds to industry-standard ANSI A8112, meeting recognized benchmarks for structural integrity.
- Finish: High-quality plated finishes (e.g., Satin Chrome 626) to match existing commercial hardware.
- Fasteners Included: Furnished with all wood screws (1-1/4" x 12 FPHW) and machine screws (1/2" x 12-24 FPHM).
Why Choose the McKinney TA2714 NRP?
The McKinney TA2714 NRP is the definitive choice for projects requiring a balance of architectural aesthetics and high-level security. Whether you are performing a solution for door surface repair or outfitting a new commercial office, its combination of self-lubricating bearings and a non-removable pin ensures your opening remains safe and functional for decades.
| General - US Finishes | US26D - Satin Chrome or US15 - Satin Nickel or US3 - Polished Brass or US4 - Satin Brass or US10 - Satin Bronze or US10A - Oil Rubbed Bronze or US10B - Oil Rubbed Bronze or US10BE - Oil Rub Bronze Equal or USP - Prime Painted or D4 - Black Powdercoat |
| Brand | McKinney |
| Hinge Height | 4.5" Hi |
| Hinge Width | 4.5" Wi |
| Hinge Grade/Thickness | Standard Wt .119 to .146 |
| Hinge Type | Full Mortise |
| Hinge Options | NRP (Non Removable Pin) |
| Base Material | Steel |
