McKinney TA2714 CC8 Electrified Hinge | 4-1/2" x 4-1/2" US26D Satin Chrome

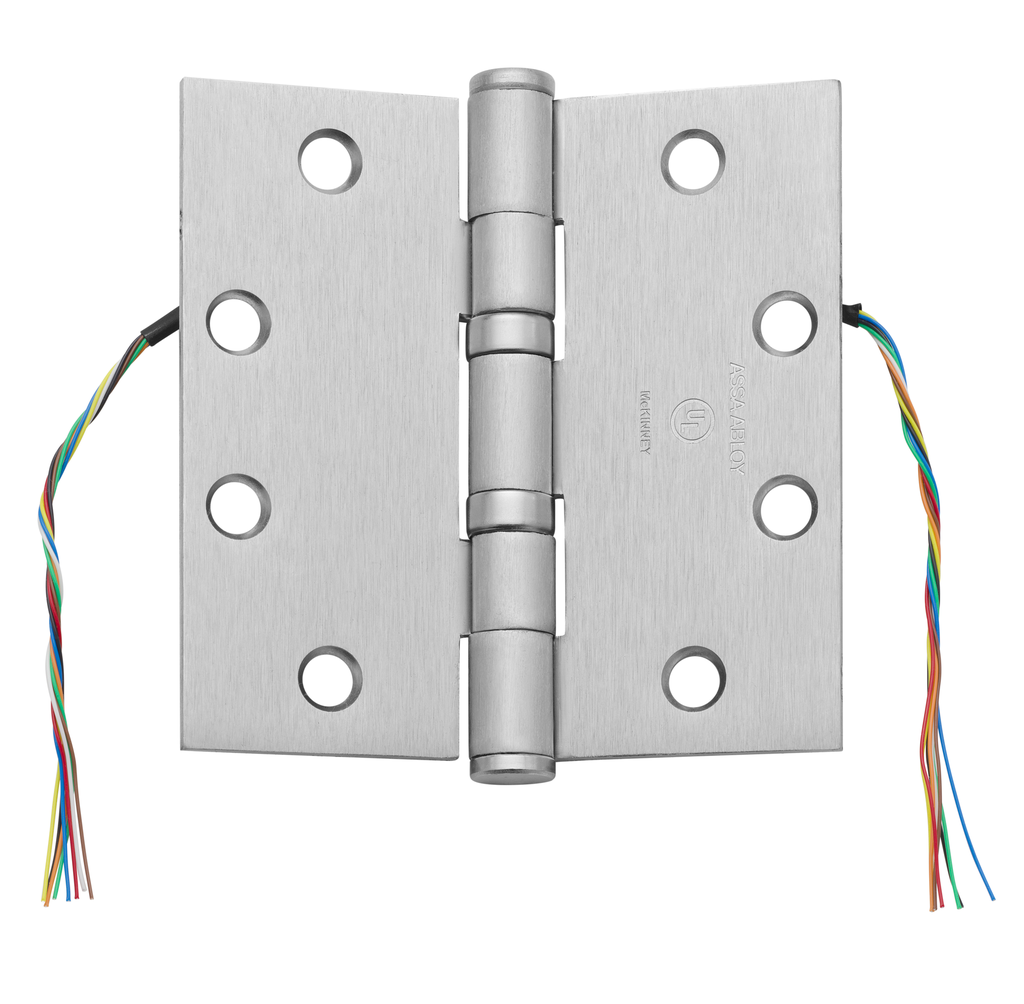

The McKinney TA2714 CC8 Electrified Hinge is a sophisticated, high-capacity intermediate connector designed for the most advanced access control systems. Featuring an 8-wire (4-circuit) configuration, this Concealed Circuit (CC) hinge facilitates the seamless transfer of power and data between the door frame and electrified hardware such as multi-point locks, exit devices with monitoring, and card readers. It is a critical solution for door restoration, offering a completely hidden wiring path that protects your system from tampering while preserving the door's architectural aesthetics.
Engineered for medium-frequency commercial use, the TA2714 CC8 is constructed from high-strength steel with a professional US26D Satin Chrome finish. McKinney hinges are renowned for their industry-leading durability; while the ANSI/BHMA A156.1 standard requires only 350,000 cycles, this unit has been tested to over 3,700,000 cycles. This extreme longevity makes it the ultimate solution for commercial door security in mission-critical environments like hospitals, universities, and government facilities.
Key Features & Performance
- 8-Wire Concealed Circuit (CC8): Provides 4 individual circuits using 28-gauge multi-strand wire, allowing for complex electrified functions including request-to-exit (RX), latch bolt monitoring, and high-draw power requirements.
- Superior Cycle Life: Exceeds ANSI standards by over 10x, ensuring that your electrified opening remains functional long after standard hinges fail.

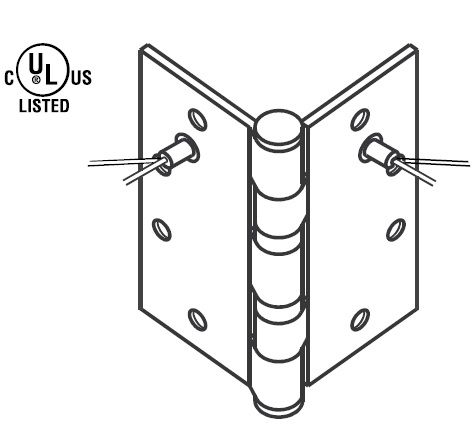

- Vandal-Resistant Security: Because the wires are contained entirely within the hinge barrel and protected by brass eyelets, the system is invisible and tamper-proof when the door is closed.
- Oil-Impregnated Bearings (TA Prefix): Features self-lubricating, non-ferrous bearings that resist corrosion and clogging, acting as a permanent solution for door edge reinforcement.
- UL Listed for Fire Safety: Rated for use on fire-rated doors for up to 3 hours, making it compliant with strict building codes for institutional stairwells and corridors.
Technical Details & Specifications
- Brand: McKinney (ASSA ABLOY)
- Model Number: TA2714 CC8 (Concealed Circuit)
- Dimensions: 4-1/2" x 4-1/2" (Standard Weight .134 Gauge)
- Finish: US26D (626) Satin Chrome (Other plated finishes available by quote)
- Electrical Rating: 4.0 Amps continuous @ 24V AC/DC per circuit; 16.0 Amp intermittent pulse (300ms)
- ANSI Number: A8112 (Template Hole Pattern)
- Fasteners Included: Furnished with 1-1/4" x 12 Wood Screws and 1/2" x 12-24 Machine Screws.
Important Installation Notes
The McKinney TA2714 CC8 is supplied with 8" leads as standard to simplify field wiring. During the installation of this solution for door surface repair, ensure that the door and frame are prepped with a 1/2" diameter "snake hole" to accommodate the wire bundle without pinching. The hinge features a Non-Rising Steel Pin with button tips for added security and ease of maintenance.
Why Choose the McKinney TA2714 CC8?
The McKinney TA2714 CC8 is the professional’s choice for projects that demand high-density wiring and absolute reliability. By utilizing an 8-wire setup, you can power a lock and monitor multiple strike or latch positions through a single, clean hinge point. It offers a permanent and cost-effective solution for door security, delivering industrial-grade performance and a polished, professional appearance for modern institutional security deployments.
| General - US Finishes | US26D - Satin Chrome or US26 - Polished Chrome or BSP - Black Suede Power Coat or US15 - Satin Nickel or US3 - Polished Brass or US4 - Satin Brass or US10 - Satin Bronze or US10B - Oil Rubbed Bronze |
| Brand | McKinney |
| Hinge Height | 4.5" Hi |
| Hinge Width | 4.5" Wi |
| Hinge Grade/Thickness | Standard Wt .119 to .146 |
| Hinge Type | Full Mortise, Electric Hinge |
| Electric Hinge Options | 8 Wire, CC8 - Concealed Circuit, Power Transfer |
| Base Material | Steel |
