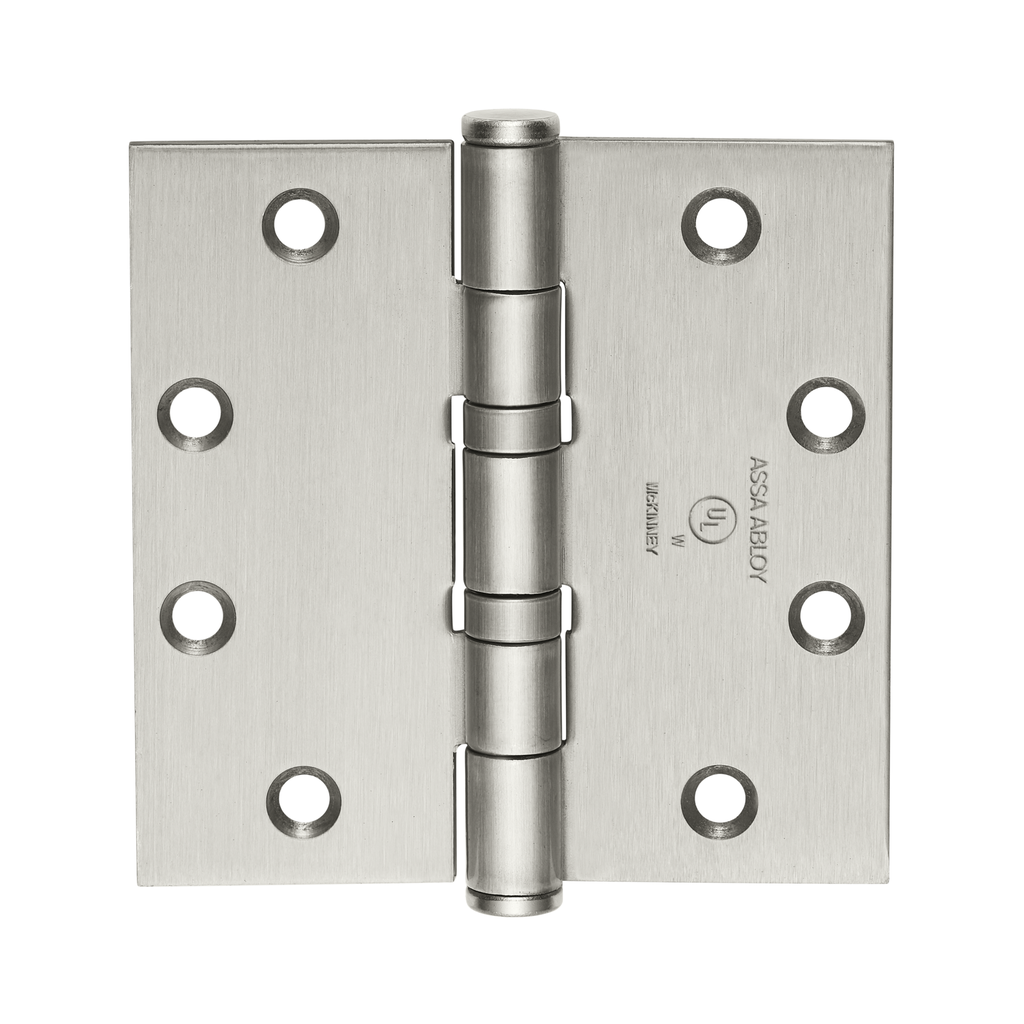

McKinney TA2314 Standard Weight Hinge | 4.5" x 4" US32D Satin Stainless Steel
The McKinney TA2314 is an architectural-grade bearing stainless steel hinge engineered for average traffic and medium-frequency commercial applications. Featuring a precision .134 standard weight thickness, this 5-knuckle, full mortise hinge is a premier solution for door restoration in environments where corrosion resistance and life safety are top priorities. Finished in US32D Satin Stainless Steel, it provides a sleek, modern aesthetic that is as durable as it is functional.
Advanced Oil Impregnated Bearings (TA Prefix)
The TA Prefix signifies McKinney’s high-performance self-lubricating bearing system. These one-piece, non-ferrous bearings provide:
- Superior Longevity: Drastically reduces friction for a smoother, silent door swing and high resistance to hinge failure.
- Clog & Corrosion Resistance: Specifically engineered to resist dust, debris, and oxidation, ensuring consistent performance in demanding coastal or high-moisture environments.
- Maintenance-Free Life: Acts as a permanent solution for door edge reinforcement without the need for manual lubrication.
Certified Fire Safety & Durability
- UL 3-Hour Fire Rating: Unlike brass alternatives, the US32D Stainless Steel construction is rigorously tested and UL listed for use on fire-rated door assemblies for up to 3 hours, ensuring full compliance with NFPA 80.
- ANSI/BHMA A156.1 Compliant: Corresponds to industry-standard ANSI A5112, meeting recognized benchmarks for structural integrity and high-performance functionality.
- Non-Rising Stainless Steel Pin: Features a secure pin with button tips to maintain a professional, clean aesthetic while preventing the pin from working upward over time.
Technical Details & Specifications
- Brand: McKinney (ASSA ABLOY)
- Model: TA2314
- Dimensions: 4-1/2" Height x 4" Width (Standard Weight .134 Gauge)
- Finish: US32D (630) Satin Stainless Steel
- Base Material: High-grade Stainless Steel
- Fasteners Included: Furnished with all Wood Screws (1-1/4" x 12 FPHW) and all Machine Screws (1/2" x 12-24 FPHM).
- Installation: Constructed with a template screw hole pattern for precision alignment and rapid replacement in existing commercial frames.
Why Choose the McKinney TA2314?
The McKinney TA2314 is the definitive professional choice for projects requiring a balance of safety, architectural value, and extreme durability. Whether you are performing a solution for door surface repair or outfitting a new high-occupancy office building, its combination of stainless steel construction and self-lubricating bearings ensures your openings remain safe and functional for decades.
| General - US Finishes | US32D - Satin Stainless Steel/ 630 or US10B - Oil Rubbed Bronze |
| Brand | McKinney |
| Hinge Height | 4.5" Hi |
| Hinge Width | 4.0" Wi |
| Hinge Grade/Thickness | Standard Wt .119 to .146 |
| Hinge Type | Full Mortise |
| Hinge Options | Ball Bearing |
| Base Material | Brass, Stainless Steel |
| Hinge Corners | Square |
