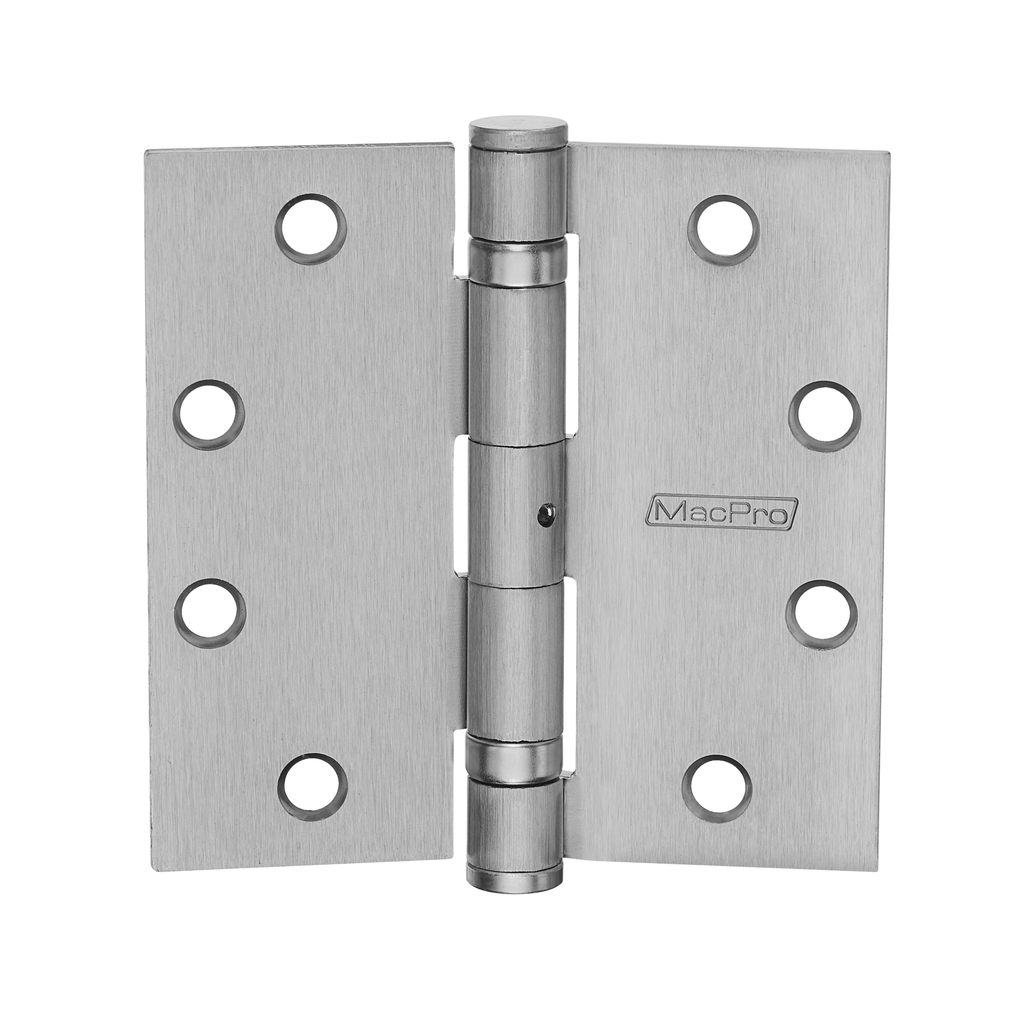

McKinney MacPro MPB79 NRP Ball Bearing Hinge | 4-1/2" x 4-1/2" Steel
The McKinney MacPro MPB79 NRP is a high-performance, contractor-grade ball bearing hinge designed for average traffic in commercial construction. Meticulously engineered with a .134 Standard Weight thickness, this 5-knuckle, full mortise hinge is a premier solution for door restoration, offering smooth operation and long-term durability for wood or metal doors.
High-Security NRP (Non-Removable Pin) Innovation
The NRP (Non-Removable Pin) feature is a critical security upgrade for modern door installations. It utilizes a hidden set screw within the hinge barrel that is completely inaccessible when the door is closed. This provides:
- Enhanced Exterior Security: Prevents unauthorized door removal by ensuring the hinge pin cannot be tapped out from the outside.
- Optimal for Outward Swinging Doors: A vital solution for commercial door security on exterior openings where hinge barrels are exposed to the public.
- Tamper Protection: Safeguards against forced entry via hinge manipulation, offering peace of mind for high-security areas.
Key Performance & Installation Features
- Ball Bearing Construction: Features precision-engineered ball bearings that ensure effortless door movement, acting as a permanent solution for door edge reinforcement.
- Reliable Steel Build: Constructed from high-strength steel with professional plated finishes to resist wear and maintain architectural appeal.
- Standardized Alignment: Designed with a template screw hole pattern to ensure fast, accurate installation and easy field replacement.
- Smooth Functionality: Equipped with a non-rising steel pin and button tips to maintain a clean appearance and prevent pin migration over time.
Technical Details & Specifications
- Brand: McKinney (ASSA ABLOY)
- Model: MacPro MPB79 NRP
- Dimensions: 4-1/2" x 4-1/2" (Standard Weight .134 Gauge)
- Bearing Type: Ball Bearing
- Fasteners Included: Furnished with all Wood Screws (1-1/4" x 12 FPHW) and all Machine Screws (1/2" x 12-24 FPHM).
Why Choose the McKinney MacPro MPB79 NRP?
The McKinney MacPro MPB79 NRP is the definitive choice for projects requiring a balance of fluid operation and robust security. Whether you are performing a solution for door surface repair or securing a commercial perimeter, the integrated non-removable pin and ball bearing design ensure your opening remains safe, silent, and functional. It delivers a cost-effective, high-quality solution for door security that stands the test of time in any commercial setting.
| General - US Finishes | US26D - Satin Chrome or US10B - Oil Rubbed Bronze or US10BE - Oil Rub Bronze Equal or USP - Prime Painted |
| Brand | McKinney |
| Hinge Height | 4.5" Hi |
| Hinge Width | 4.5" Wi |
| Hinge Grade/Thickness | Standard Wt .119 to .146 |
| Hinge Type | Full Mortise |
| Hinge Options | Ball Bearing, NRP (Non Removable Pin) |
| Base Material | Steel |
| Hinge Corners | Square |
