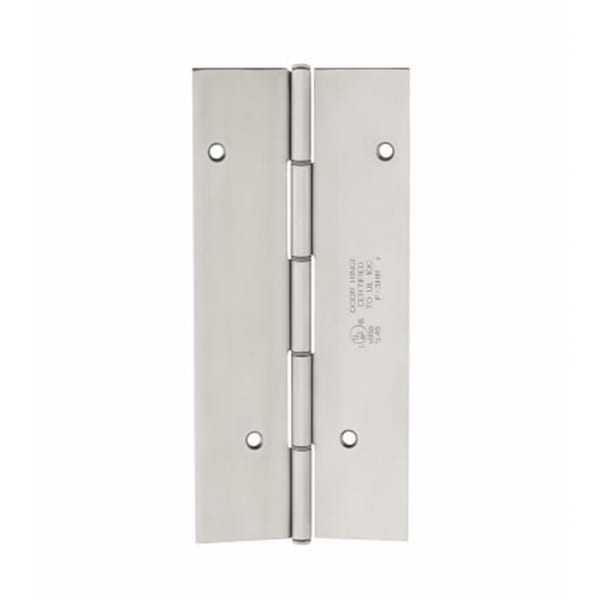

Markar FM300 Edge Mounted Stainless Steel Pin & Barrel Continuous Hinge
This edge-mounted pin and barrel type hinge is used high traffic, high abuse doors.
Supports weights up to 600 lbs. 4'0" maximum door width
3/16" diameter barrel type hinges, 304 stainless steel pin (rod) Medical bearings. Exterior barrel diameter .438" (7/16")
Heavy-duty 14 gauge, type 304 stainless steel, finished in US32D (630)
Fasteners concealed when door is closed. Fastener screwpack includes Custom 12-24 x 11/16 S.S Phillips Flat Head Undercut TEK Screws
ANSI/BHMA Standard A156.26 Grade 1
6/8 Height = 79-3/16" net length
7/0 Height = 83-1/8" net length
8/0 Height = 95" net length
Fire Rating:
Classified in accordance with UL10C for positive pressure
20 minutes - wood doors
90 minutes - hollow metal and composite core wood fire doors
3 hours - hollow metal doors
| Continuous Hinge Height | 79 Inch (6/8 Dr) or 83 Inch (7/0 Dr) or 95 Inch (8/0 Dr) |
| Brand | Markar |
| Continuous Hinge Grade | Heavy Duty |
| General - US Finishes | US32D - Satin Stainless Steel/ 630 |
| Base Material | Stainless Steel |
| Hinge Type | Continuous Hinge, Full Mortise |
