Accentra AU NTM628 NR NexTouch US26D Touchscreen Mortise Deadbolt - Yale
Accentra NexTouch AU-NTM628-NR US26D Touchscreen Mortise Deadbolt

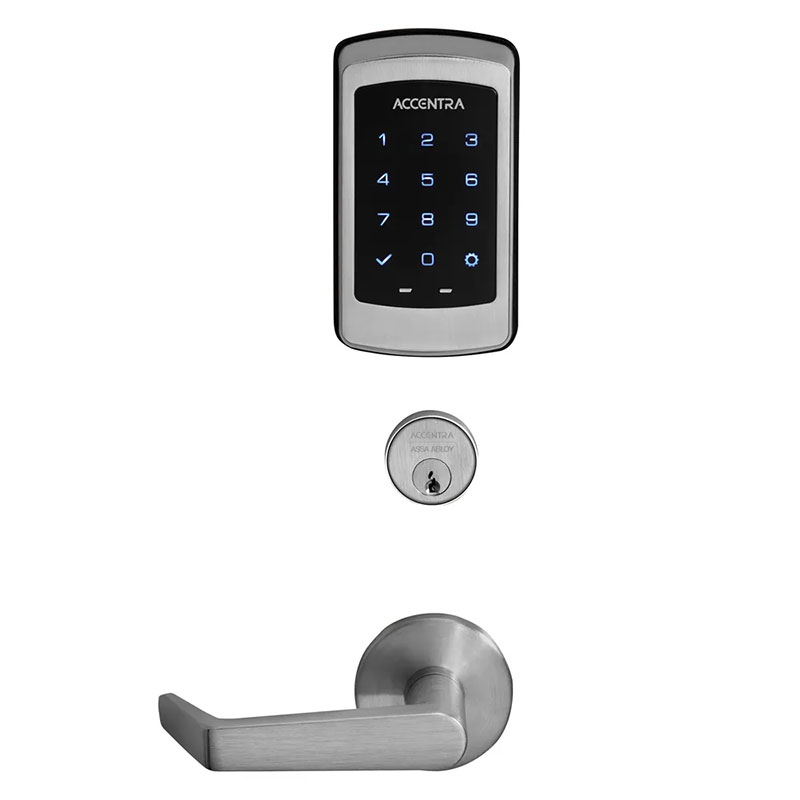

Yale NexTouch AU-NTM628-NR US26D Touchscreen Mortise Deadbolt with Cylinder Override
Function Info:
| • Latchbolt retracted by lever either side, except when outside lever is locked. • Deadbolt operated by key outside, thumbturn inside. • When outside lever is locked, latchbolt and deadbolt are operated by key outside. • When deadbolt is projected, lever is automatically locked. • Anti-panic operation. Operating inside lever automatically retracts latchbolt and deadbolt with outside lever remaining locked. • Deadlocking latchbolt. |
TECHNICAL SPECIFICATIONS:
Door Specifications: Fits into the standard mortise door prep
Backset: 2-3/4" (70mm) standard backset
Door Thickness: 1-3/4" (44mm) door thickness standard; please specify for other door thicknesses
Handing: Field reversible
Latchbolt: 3/4" spring latchbolt standard, 1" throw deadlocking latchbolt optional
Strike: Curved lip strike with 1-1/4” (32 mm) lip length standard
Cylinder: Accepts conventional, interchangeable core, security and high security cylinders, and other manufacturers’ keyway cylinders (1-1/8" Length)
ANSI/BHMA: Certified ANSI/BHMA Grade 1
UL/cUL: Functions are UL - cUL Fire Listed for use on fIre doors having a rating up to and including 3-hours
Warranty: 1-year electrical warranty; 3-year mechanical and finish warranty
Environmental Specifications: Operating temperature: -40°F to +140°F (-40°C to +60°C) at 95% relative humidity when used with an external power supply
Power Source: 4 AA alkaline batteries (included) with optional hardwire input for 9VDC external power; 9V battery power backup on keypad
Interface: Capacitive touchscreen
User Codes: Up to 500 unique user codes
| General - US Finishes | 626 - Satin Chrome |
| Standard Cylinders and Keyways | Yale PARA E1R Keyway |
| Brand | Accentra (formally Yale Security) |
| Series | Accentra - NexTouch |
| ANSI Mortise Lock Function | Keypad |
| Trim Design | AU - Augusta Lever |
| Lock Type | Mortise Lock |
