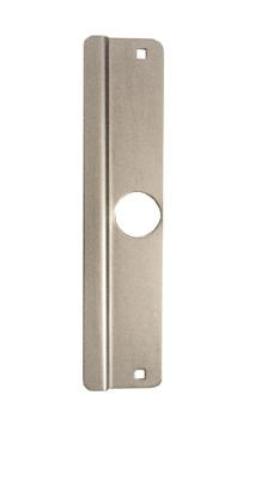

Latch Gard LG160 x SF710 Door Latch Guard | 12" Narrow Stile Security Plate

The Latch Gard LG160 x SF710 is a professional-grade security plate engineered to protect commercial aluminum entrance doors from forced entry and tampering. Measuring 2-5/8" x 12" with a 7/32" offset, this heavy-duty shield is specifically designed to fit Adams-Rite locks typically found on narrow stile storefront doors. It serves as a definitive solution for door security, preventing intruders from prying or "jimmying" the latch bolt while simultaneously acting as a permanent solution for door restoration for previously damaged door frames.

Constructed from heavy 12-gauge plate steel (.105" thick), the LG160 provides a robust physical barrier that prevents expensive repairs caused by break-in attempts. The unique 7/32" offset allows the plate to clear the door stop, making it an essential component for any solution for door surface repair. This model features a 1-1/2" cylinder hole designed to fit directly over the lock cylinder, ensuring the lock remains accessible while the latch remains fully protected.

Key Features & Performance

• Narrow Stile Optimization: Precision-fit for Adams-Rite style locks used on aluminum storefront doors, serving as a high-performance solution for commercial door security.

• Enhanced Thru-Bolt Security: Includes SF710 carriage bolts that feature a flat-head design, ensuring they do not snag on clothing or interfere with weatherstripping.

• Flexible Backset Compatibility: While optimized for 1-1/8" backsets, it can be adapted for 31/32" and 1-1/2" backsets by slightly adjusting the cylinder hole center horizontally.

• Universal Handing: The plate is completely reversible for right or left-hand openings, providing a versatile solution for door restoration in any facility layout.

• Made in the USA: Manufactured in Wakarusa, Indiana, utilizing premium domestic steel for maximum structural remodeling scar plate strength.


Technical Details & Specifications

• Brand: Latch Gard
• Model Number: LG160 x SF710
• Dimensions: 2-5/8" Width x 12" Height
• Offset: 7/32"
• Material: 12-Gauge Plate Steel (.105" thick)

• Lock Compatibility: Adams-Rite Locks and some electric strikes.

• Cylinder Hole: 1-1/2" diameter.

• Installation Style: Designed for a secure "sandwich" mount. This kit utilizes high-strength thru bolts (carriage bolts) to anchor the plate through the door, creating a tamper-proof bond that cannot be pried off from the exterior.


Why Choose the Latch Gard LG160?

The Latch Gard LG160 is the first line of defense for retail, office, and municipal storefronts. Standard aluminum doors are often vulnerable at the latch point; installing this 12-inch latch guard provides a permanent and cost-effective solution for door security. It delivers the industrial-grade reliability, easy installation, and clean professional appearance required to protect your assets and provide a high-strength solution for door edge reinforcement.

​
