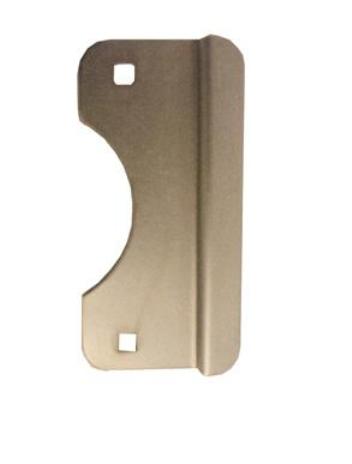

Latch Gard LG150 x SF710 Door Latch Guard | 6" Narrow Frame Security Shield

The Latch Gard LG150 x SF710 is a professional-grade security plate designed to defend out-swinging doors against forced entry and tampering. Measuring 2-5/8" x 6" with a 5/16" offset, this heavy-duty shield is specifically engineered for doors with cylindrical locks and narrow door frames where space is limited. It serves as a definitive solution for door security, providing a physical barrier that prevents "jimmying" or prying of the latch bolt while acting as a permanent solution for door restoration for frames previously compromised by attempted break-ins.

Constructed from heavy 12-gauge plate steel (.105" thick), the LG150 is a vital component for any solution for door surface repair. Its compact 6-inch height makes it an ideal choice for narrow-stile doors or situations where a larger guard might interfere with other hardware. This Made in the USA security plate helps prevent expensive repairs by reinforcing the strike area and discouraging vandalism in retail, commercial, and residential settings.

Key Features & Performance

• Narrow Frame Optimization: Specifically designed for doors with limited frame clearance, serving as a high-performance solution for commercial door security.
• 5/16" Offset Design: Engineered to clear the door stop on out-swinging doors, acting as a permanent solution for door edge reinforcement.
• Tamper-Resistant Hardware: Includes SF710 carriage bolts with a flat-head design, ensuring they cannot be removed from the exterior and won't snag on clothing or weatherstripping.
• Universal Reversible Fit: The plate is fully reversible for right or left-hand openings, offering a versatile and easy-to-install solution for door restoration.

• Heavy-Duty Steel Construction: The .105" thick steel plate functions as a structural remodeling scar plate, shielding the latch area from physical attack.


Technical Details & Specifications

• Brand: Latch Gard
• Model Number: LG150 x SF710
• Dimensions: 2-5/8" Width x 6" Height
• Offset: 5/16"
• Material: 12-Gauge Plate Steel (.105" thick)

• Compatibility: Standard metal and wood doors with cylindrical locks and narrow frames.

• Fasteners: Flat-head SF710 carriage bolts.
• Installation Style: Simple drilling required. This kit utilizes high-strength thru bolts (carriage bolts) to create a secure "sandwich" mount that cannot be defeated from the outside.

Why Choose the Latch Gard LG150?

The Latch Gard LG150 is the professional’s choice for securing doors with restricted mounting space. While larger plates may be too bulky for narrow-stile aluminum or wood frames, this compact 6-inch latch guard provides industrial-grade reliability without sacrificing functionality. It offers a permanent and cost-effective solution for door security, delivering a polished professional appearance and maximum protection for your facility.

​
