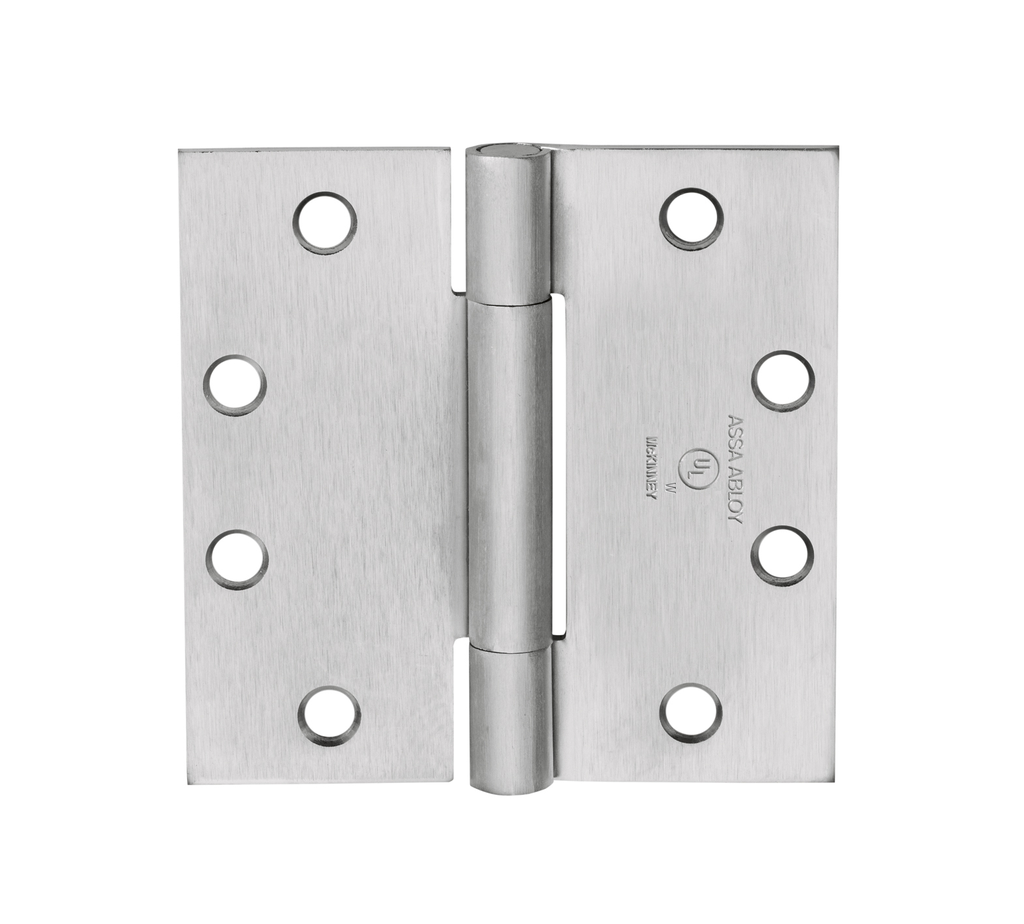

McKinney HTA714 Hospital Tip Hinge | 4-1/2" x 4-1/2" Concealed Bearing US26D
The McKinney HTA714 Hospital Tip Hinge is a specialized architectural solution engineered for healthcare facilities, psychiatric wards, and high-security environments. Combining a modern 3-knuckle profile with a safety-first hospital tip (HT) design, this hinge eliminates sharp edges and prevents the attachment of cords or ligatures. It serves as a vital solution for door restoration in hospitals and clinics where patient safety and infection control are the highest priorities.
Featuring concealed vertical and lateral thrust twin anti-friction bearings, the HTA714 provides smooth, silent operation for average-traffic commercial doors. The specialized hospital tip design features a one-piece non-removable pin with tapered ends, making it a permanent solution for door security by ensuring the pin cannot be tampered with or removed to detach the door. This hinge is an essential component for any solution for door surface repair, offering a clean, snag-free architectural finish that complies with strict medical facility standards.
Key Features & Performance
- Safety-First Hospital Tip (HT): Features tapered tips and a non-removable pin design to prevent ligature attachment and unauthorized door removal, acting as a critical solution for commercial door security.
- Concealed Anti-Friction Bearings: Twin bearings are hidden within the knuckles to manage thrust loads while preventing the buildup of dust and bacteria—a perfect solution for door restoration in sterile environments.
- Modern 3-Knuckle Aesthetic: Provides a sleek, streamlined profile compared to standard 5-knuckle hinges, enhancing the architectural look of modern healthcare interiors.
- Satin Chrome Finish (US26D): The high-quality plated finish acts as a durable remodeling scar plate, offering superior resistance to harsh cleaning chemicals and physical wear.
- Non-Removable Pin (NRP) Equivalent: The tapered, one-piece pin design is virtually impossible to remove, providing maximum security for out-swinging corridor doors.
Technical Details & Specifications
- Brand: McKinney (ASSA ABLOY)
- Model Number: HTA714
- Dimensions: 4-1/2" x 4-1/2" (Full Mortise)
- Pin Style: Hospital Tip (HT) Tapered
- Bearing Type: Concealed Vertical & Lateral Thrust (TA Prefix)
- Thickness: .134 Standard Weight
- ANSI Number: A8112
- Fasteners Included: Furnished with All Wood Screws (1-1/4" x 12 FPHW) and All Machine Screws (1/2" x 12-24 FPHM).
Why Choose the McKinney HTA714?
The McKinney HTA714 is the professional’s choice for projects that demand the perfect balance of visual elegance and patient safety. While standard hinges have flat tips that can be used as anchor points, the hospital tip technology provides a smooth, tapered profile that safeguards occupants. It offers a permanent and cost-effective solution for door security, delivering industrial-grade reliability and the polished, high-end appearance required for modern medical and institutional spaces.
| General - US Finishes | US26D - Satin Chrome |
| Brand | McKinney |
| Hinge Height | 4.5" Hi |
| Hinge Width | 4.5" Wi |
| Hinge Grade/Thickness | Standard Wt .119 to .146 |
| Hinge Type | Full Mortise |
| Hinge Options | Concealed Bearing, HT (Hospital Tip) |
| Base Material | Steel |
| Hinge Corners | Square |
