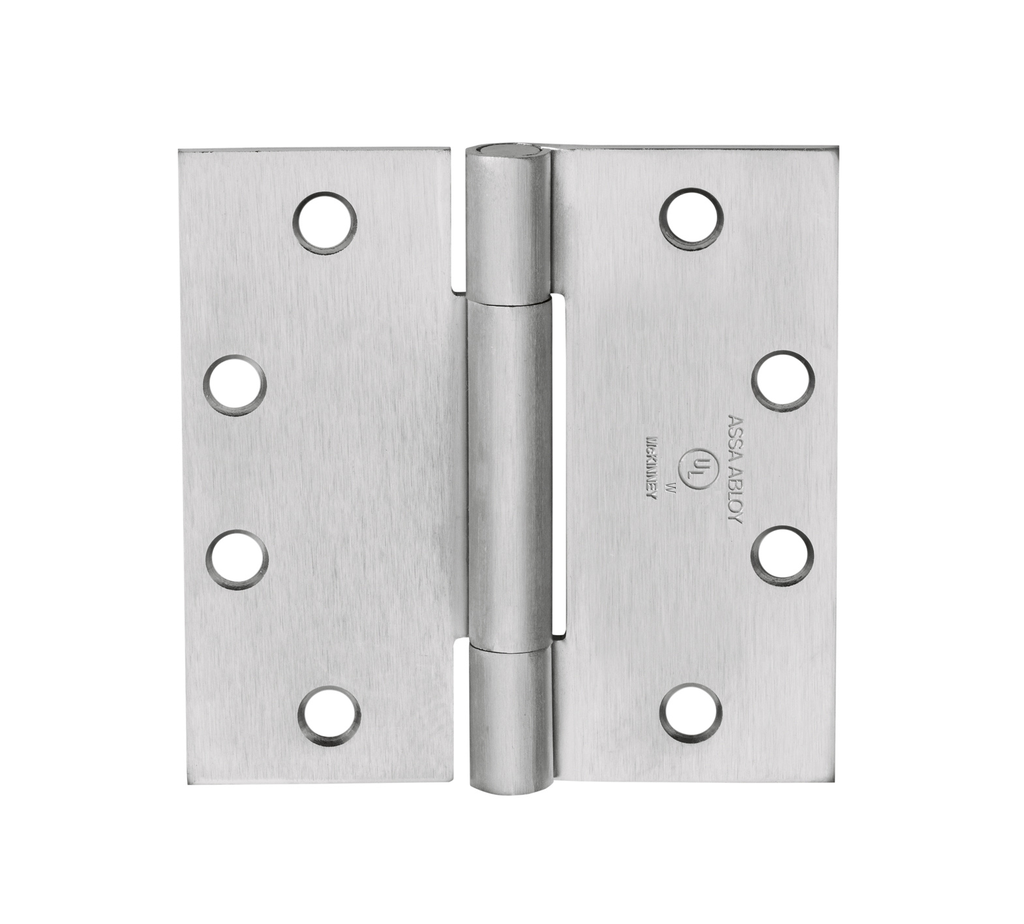

McKinney TA314 Concealed Bearing Hinge | 5" x 4-1/2" Stainless Steel
The McKinney TA314 is a sleek, high-performance standard weight architectural hinge designed for average traffic openings in commercial and institutional settings. Featuring a refined 3-knuckle, full mortise profile, this hinge is a premier solution for door restoration where a clean, modern aesthetic is required without sacrificing durability. Crafted from high-grade US32D Satin Stainless Steel, it provides exceptional corrosion resistance, making it ideal for hospitals, laboratories, and coastal environments.
Advanced Concealed Bearing Technology (TA Prefix)
The McKinney TA314 utilizes a sophisticated twin anti-friction bearing system that is completely concealed within the hinge barrel:
- Concealed Vertical & Lateral Thrust: Dual bearings at both joints manage door weight and swinging forces internally, ensuring a smooth, silent operation.
- Streamlined 3-Knuckle Design: By hiding the bearings, this hinge offers a more continuous, elegant look compared to traditional 5-knuckle styles.
- Maintenance-Free Durability: The specialized bearing design prevents dust buildup and protects against friction-related wear, acting as a permanent solution for door edge reinforcement.
Precision Engineering & Commercial Specs
- Standard Weight .146 Gauge: A robust commercial thickness that provides superior stability for medium-weight wood or metal doors.
- Stainless Steel Construction: The US32D (630) finish is naturally rust-resistant and suitable for use on fire-rated door assemblies.
- Non-Rising Flush Pin: Features a stainless steel pin with a flush pin head, further enhancing the minimalist architectural appearance while preventing the pin from migrating upward.
- ANSI/BHMA Standards: Complies with ANSI A5112 for quality, performance, and structural integrity.
Installation & Technical Details
- Brand: McKinney (ASSA ABLOY)
- Model: TA314
- Dimensions: 5" Height x 4-1/2" Width (Standard Weight .146 Thickness)
- Template Screw Hole Pattern: Precision-engineered for exact alignment in standard commercial frames.
- Fasteners Included: Furnished with all Wood Screws (1-1/4" x 12 FPHW) and all Machine Screws (1/2" x 12-24 FPHM).
Why Choose the McKinney TA314?
For projects that demand an "uninterrupted" architectural line, the McKinney TA314 is the definitive choice. Whether you are performing a solution for door surface repair or outfitting a high-end commercial suite, its concealed bearing technology ensures long-term reliability.
| General - US Finishes | US32D - Satin Stainless Steel/ 630 |
| Brand | McKinney |
| Hinge Height | 5.0" Hi |
| Hinge Width | 4.5" Wi |
| Hinge Grade/Thickness | Standard Wt .119 to .146 |
| Hinge Type | Full Mortise |
| Hinge Options | Concealed Bearing |
| Base Material | Stainless Steel |
| Hinge Corners | Square |
